2 Product Introduction
2.1 Product Introduction
Model Description
This manual covers listed device below:
• ABD200-40-US10
• ABD200-63-US10
• ABD100-40-US10
• ABD100-63-US10
• MPD200-40-US10
• MPD200-63-US10
ABD Series MPD Series

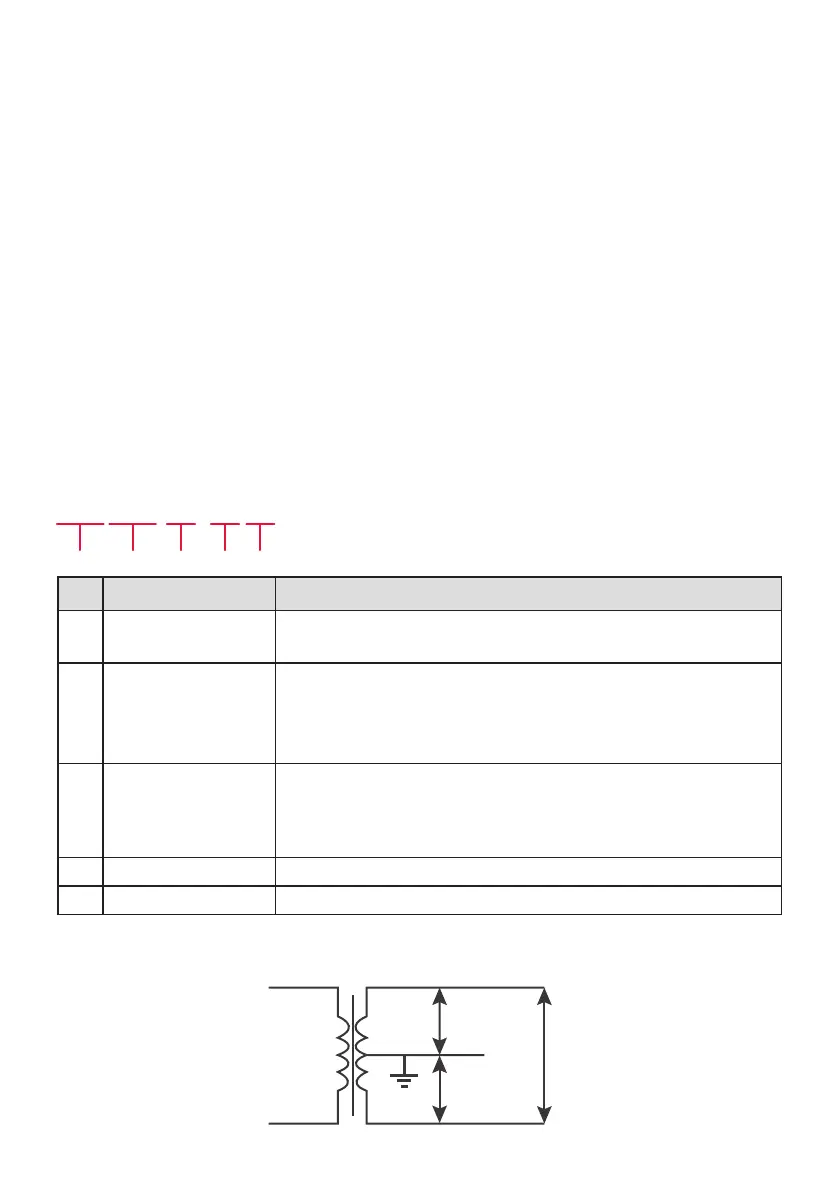

Supported Grid Type
The inverter supports 120/240V split phase grid type.
Function Description
The device transfers between on-grid mode and backup mode with an integrated switch.
The device connects the main panel, the utility grid, and the AC output of the inverter to form
an on-grid system when the utility grid works normally. Once the utility grid fails, the device will
connect loads and the AC output of the inverter only to form a backup system.
The ABD supports one inverter and the MPD supports up to three inverters.
L1
L2
240V
120V
120V
N
Model Explanation
No. Meaning Description
1 Product ABD: Automatic Backup Device
MPD: Multi-inverter Parallel Device
2 Main breaker rating 200: Applies to the main service panel whose main breaker rating
is smaller than or equal to 200A and larger than 100A.
100: Applies to the main service panel whose main breaker rating
is smaller than or equal to 100A.
3 Protection current of
the inverter breaker
40/63: The protection current of the inverter breaker is 40A or
63A, which matches with the following inverters:
Hybrid inverters: GW5000/6000/7600/9600/11K-ES-US20
AC-coupled inverters: GW5000/6000/7600/9600/11K-SBP-US20
4 Region code US: the U.S.
5 Generation code 10: generation 1.0
ABD200-40-US10
1 2 3 4 5
