Goodwe DNS Series Quick Installation Guide

03
1 2 3 4 5
76
8 9 10 11
354mm
147mm
195mm
32.5mm 32.5mm
130mm
433mm
115mm

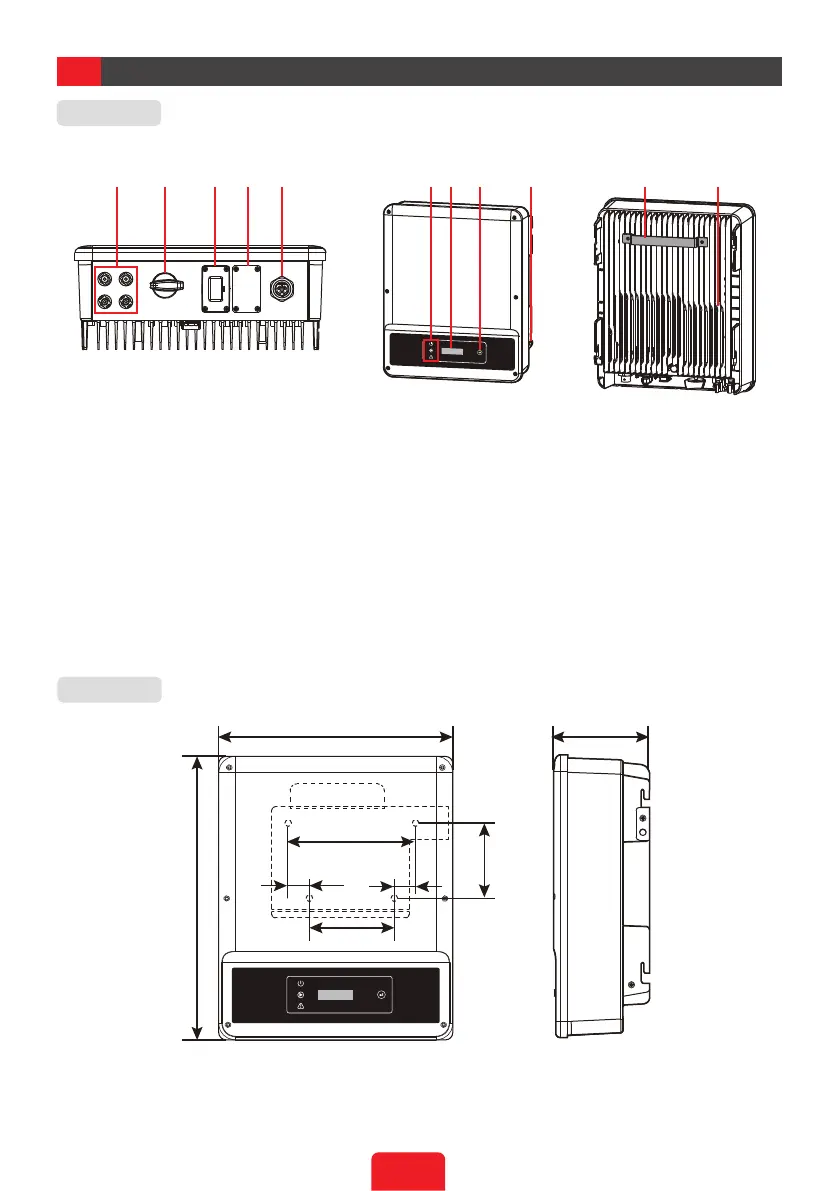

02 Product Introduction
1. PVInputTerminal 2. DCSwitch 3.
WiFi/4G/LAN/GPRSCommunication
ModulePortorRS485
CommunicationCablePort
4.
DRED/CT/RemoteShut
downCommunication
CablePort
5.
ACOutput
Terminal
6. Indicator
7. LCD 8. Button 9. PETerminal
10. MountingPlate 11. HeatSink
Parts
Dimensions

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
