35
User Manual V1.0-2022-01-17
06 Electrical Connection
RS485
RSD

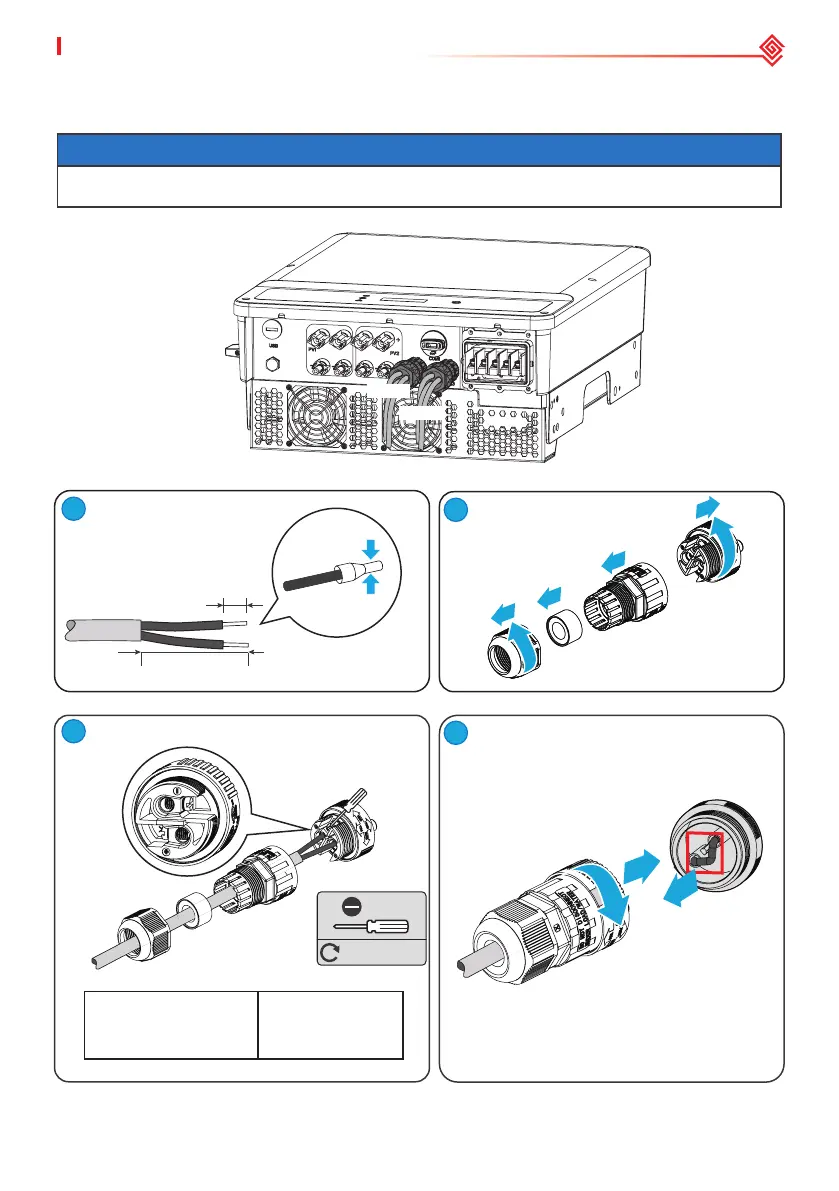

Connecting the Communication Cable(RS485, Meter, and Remote shutdown)
NOTICE
Connect the remote shutdown cable using a 2PIN communication terminal as follows.
RS485/Meter
+: METER+/RS485 A
-: METER-/RS485 B
Remote shutdown
+: DRM4/8
-: REFGen
6.5mm
25mm
1
3
6
2
2
1
4
5
3
M3
0.6~0.8N·m
4
3
2
1
