Goodwe GW9600A-ES - Page 24

22
CB
CB
CB
CB
CB
CB
CB
50A CB
CB
CB
CB
CB
CB
50A CB
50A
CB
20A
CB
20A
CB
20A
CB
20A
CB
50A
CB
120V
BACKUP
Loads
To BACKUP Loads
240V
BACKUP
Loads
To Utility Meter
Main Breaker
PE
L1L2
N
Main Distribution
Panel
Two Meter CTs
Ground Bus-bar
Ground Bus-bar
Neutral Bus-bar
Neutral Bus-bar
BACKUP Loads
Distribution Panel
BACKUP Panel
Main Breaker
BACKUP Panel
Loads Breakers
*Note 3
*Note 2
*Note 1
1" Conduit
1" Conduit
Note 1: The rated current of the circuit breaker depends on the load power.
Note 2: The Max continuous output current Per Phase @ 120 V is 40A.
Note 3: The back-up Output L1 or L2 Max continuous current carrying capacity≤40A.

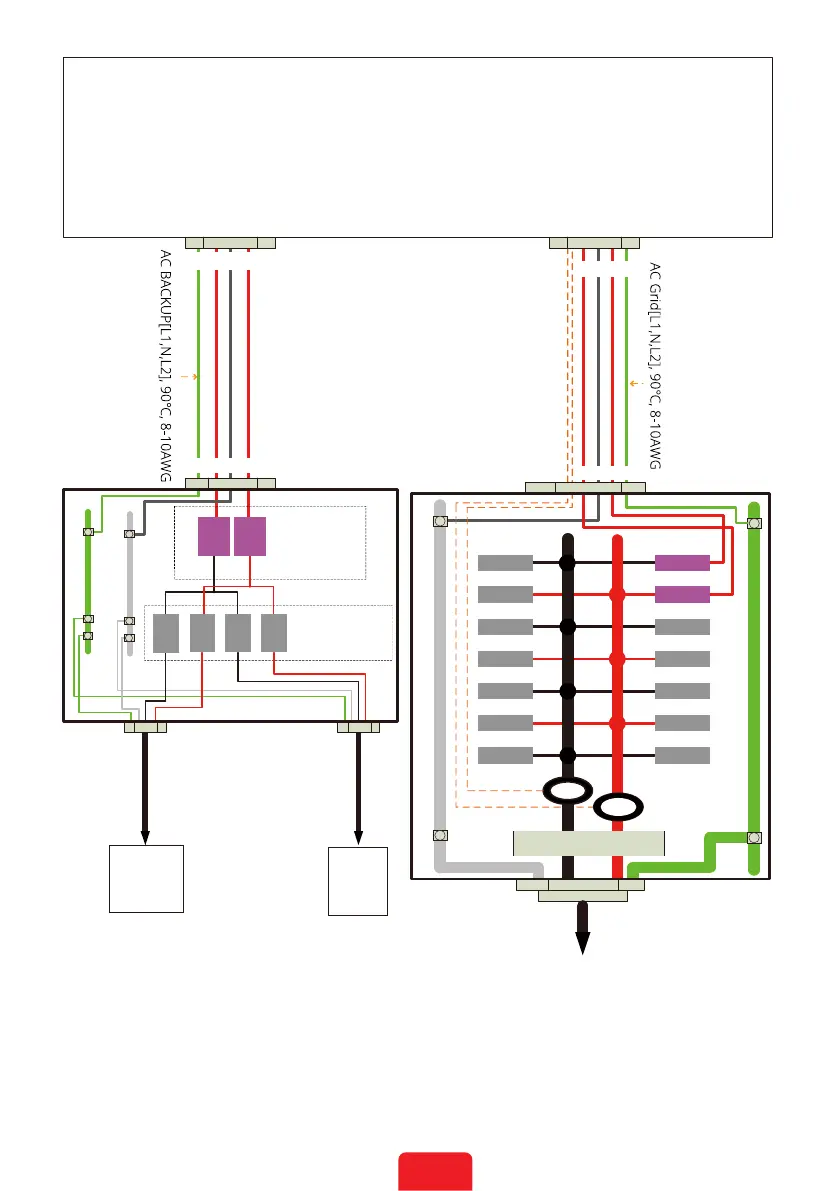

Wiring Box of A-ES Hybrid Inverter
L2 N L1 PE
L2 N L1 PE
PE L2 N L1
PE L2 N L1
CT2
CT1
