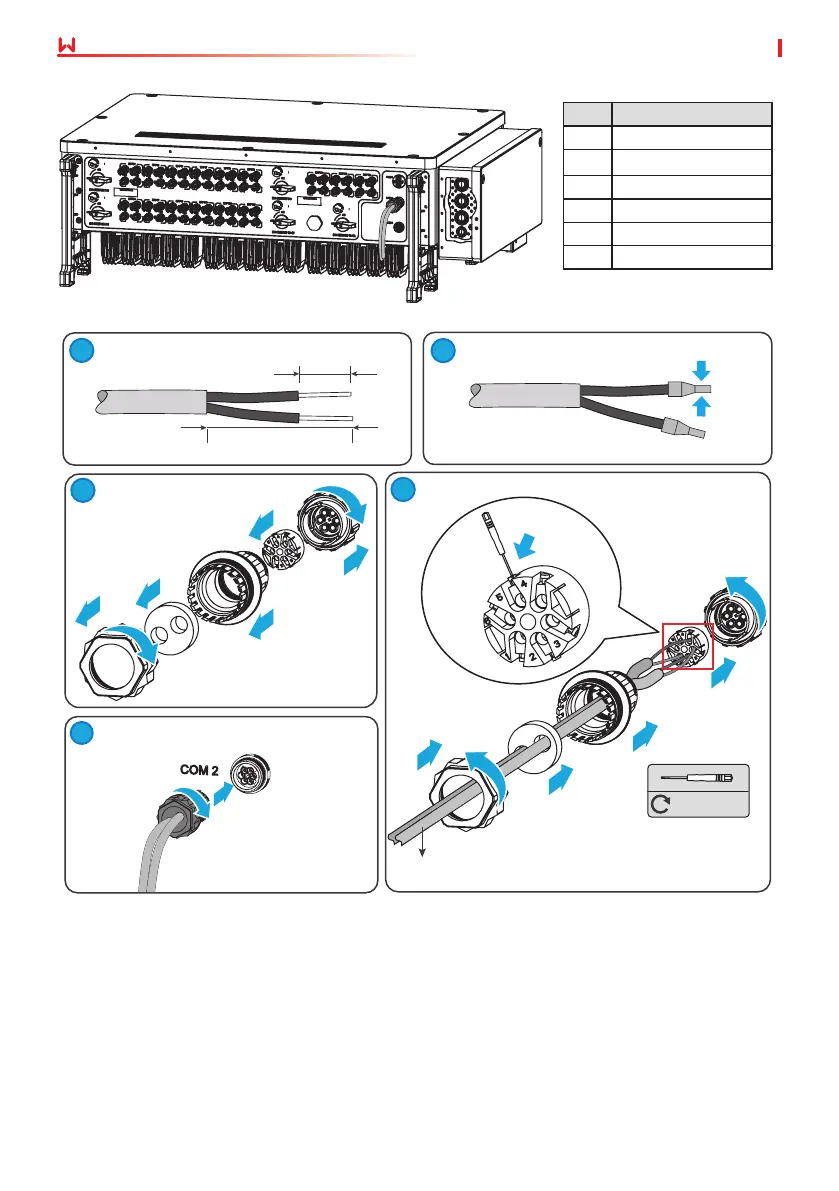

06 Electrical Connection User Manual V1.0-2023-03-20
No. COM2 (RS485)
1 RS485 A
2. RS485 B
3 RS485 A
4 RS485 B
5 Grounding
6 Grounding
4
3
7
6
2
5
6
1
5
5
3
4
7
4
2
3
0.3~0.4N·m
1
6.5mm
25mm
1
2
2
1
D: 8 - 11mm
