asseMBlInG YOUr lCD TOUCH BaCPaC
ATTACHING THE LCD TOUCH BACPAC TO YOUR
GOPRO CAMERA
TO ATTACH:
1. The LCD Touch BacPac can be attached to the HERO3,
the HD HERO2 and original HD HERO.

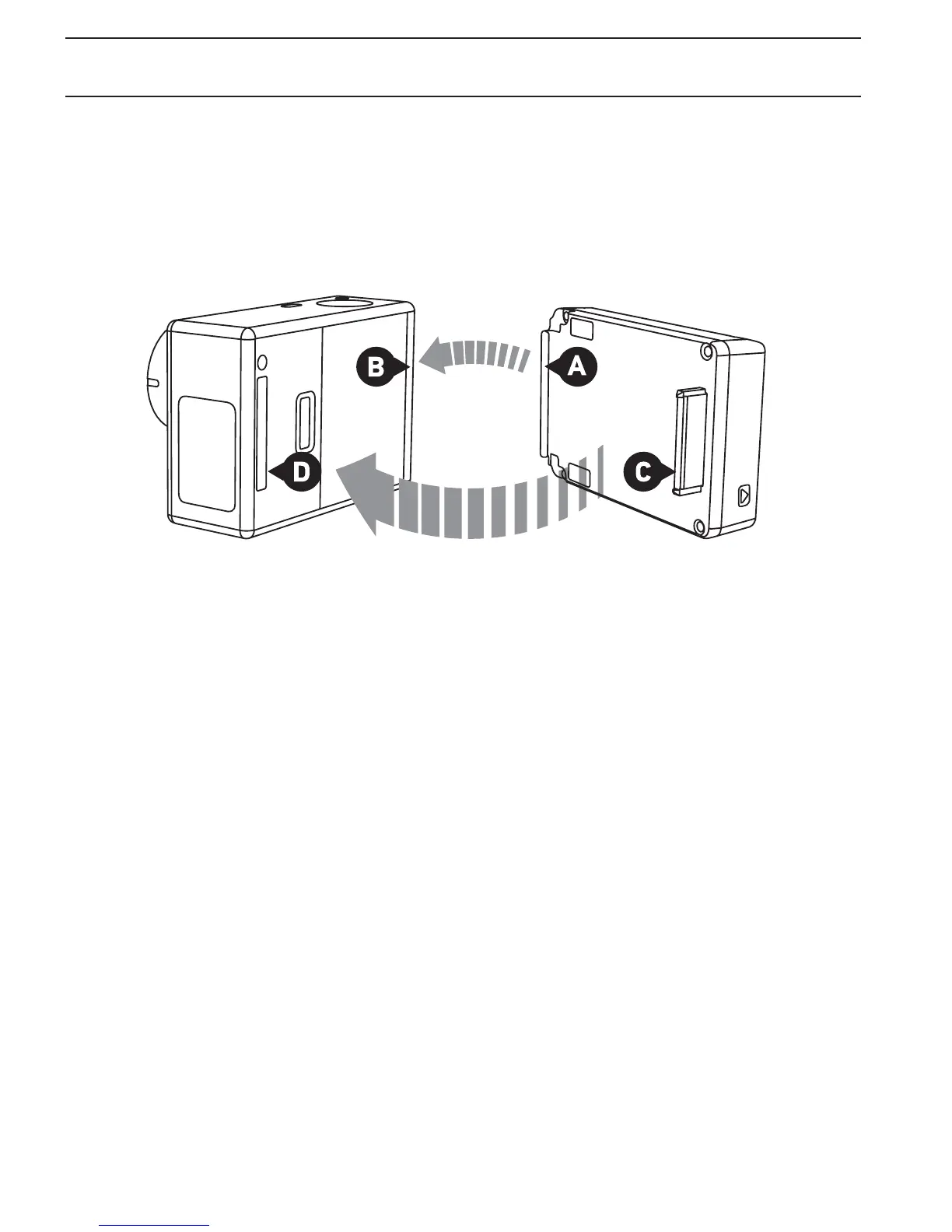

2. Slide hooked end of the LCD Touch BacPac (A) into
groove on right side of the camera body (B).
3. Insert the LCD Touch BacPac connector (C) into the
HERO Port (D) on back of the camera.
4
