Gorilla 7007 User Manual

Mounting the Tilt Sensor
The tilt sensor protects your motorcycle by activating the alarm when the motorcycle
is lifted from the side stand to the upright or riding position.
1. Plug the female tilt sensor lead into the male connector from the main
alarm harness.
2. To mount the tilt sensor, park the motorcycle using
the side stand.
3. Find a location under the seat where you can attach
the tilt sensor on a vertical surface and
perpendicular to the direction of travel.
4. Using the hook and loop tape (included), attach the tilt sensor. The
correct angle of the tilt sensor will activate the alarm when the motorcycle
is moved from the side stand to the riding position .
A
B

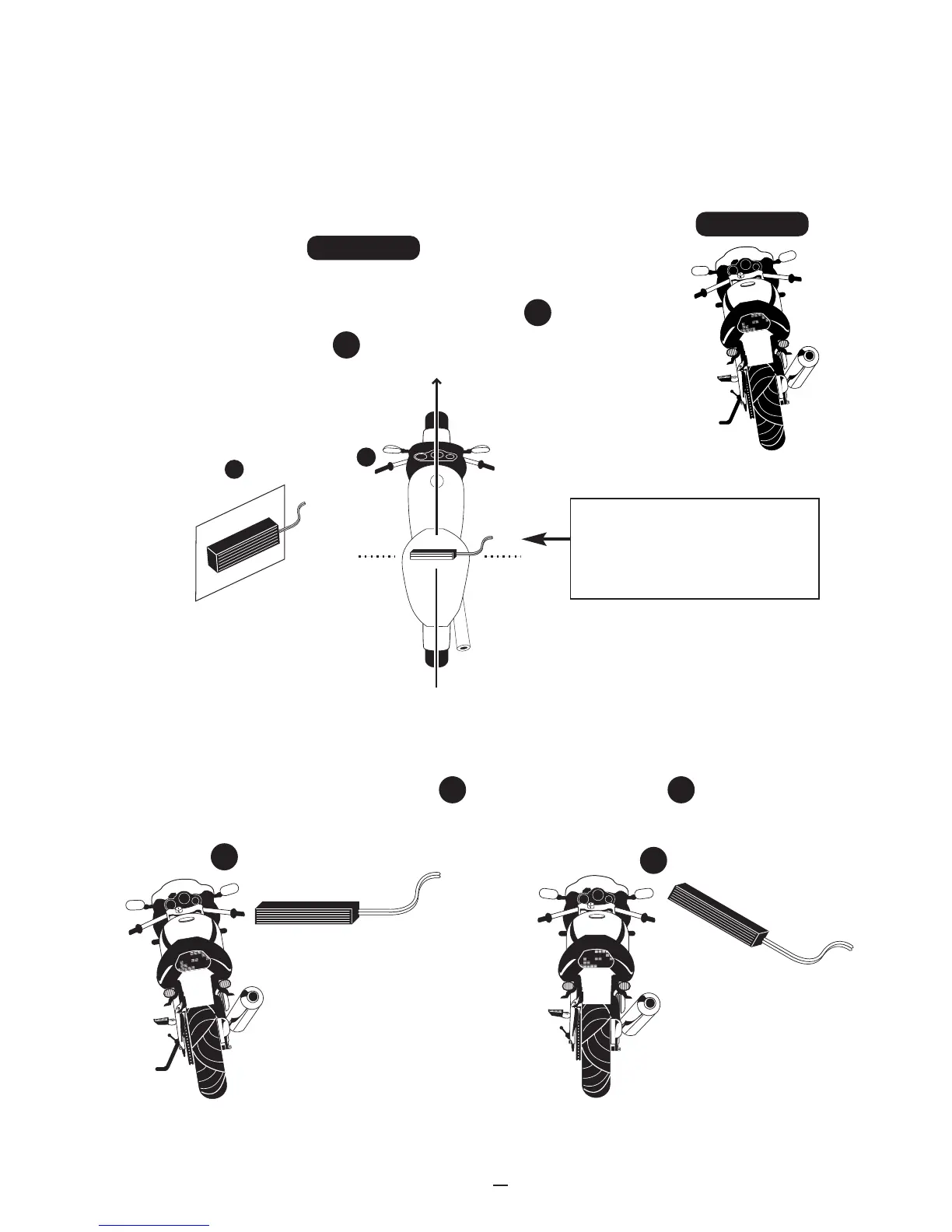

DIAGRAM 1
DIAGRAM 1
A
B
TILT SENSOR
TILT SENSOR
BLACK WIRE
TO ALARM UNIT
BLACK WIRE
TO ALARM UNIT
C
D
NOTE: An angle greater
than 30˚ is needed to
trigger alarm.
SIDE STAND
RIDING POSITION
C
D
7
NOTE: Wire from tilt sensor must
be installed on the right side as
shown. (As shown from back of bike)
