07
CAUTION: Make sure post at least is inserted to minimum insertion marking are
NOT visible.

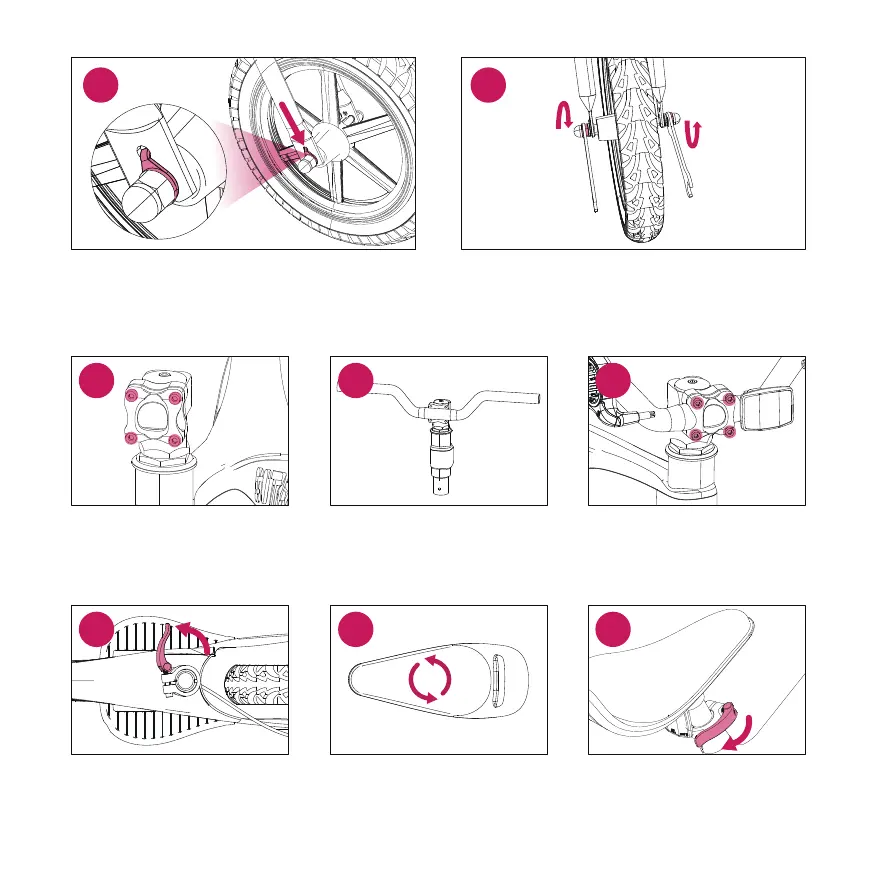

Use the tool to loosen the handlebar to fix the pressing block, load the handlebar
hand, and lock the pressing block (the horizontal handlebar must be centered).
Install Handlebar Hand
Please place the anti-rotation washer and circular washer on the outside of the front
fork in sequence, then use a 16mm open-end wrench to tighten the cap nuts on both
sides.
Install the saddle: Open the quick release handle and insert the saddle, adjust the
right height for you and lock the quick release.
Install The Saddle
Press Down
Pull Upwards
5
1 2 3
1 2 3
6
To Next Page
