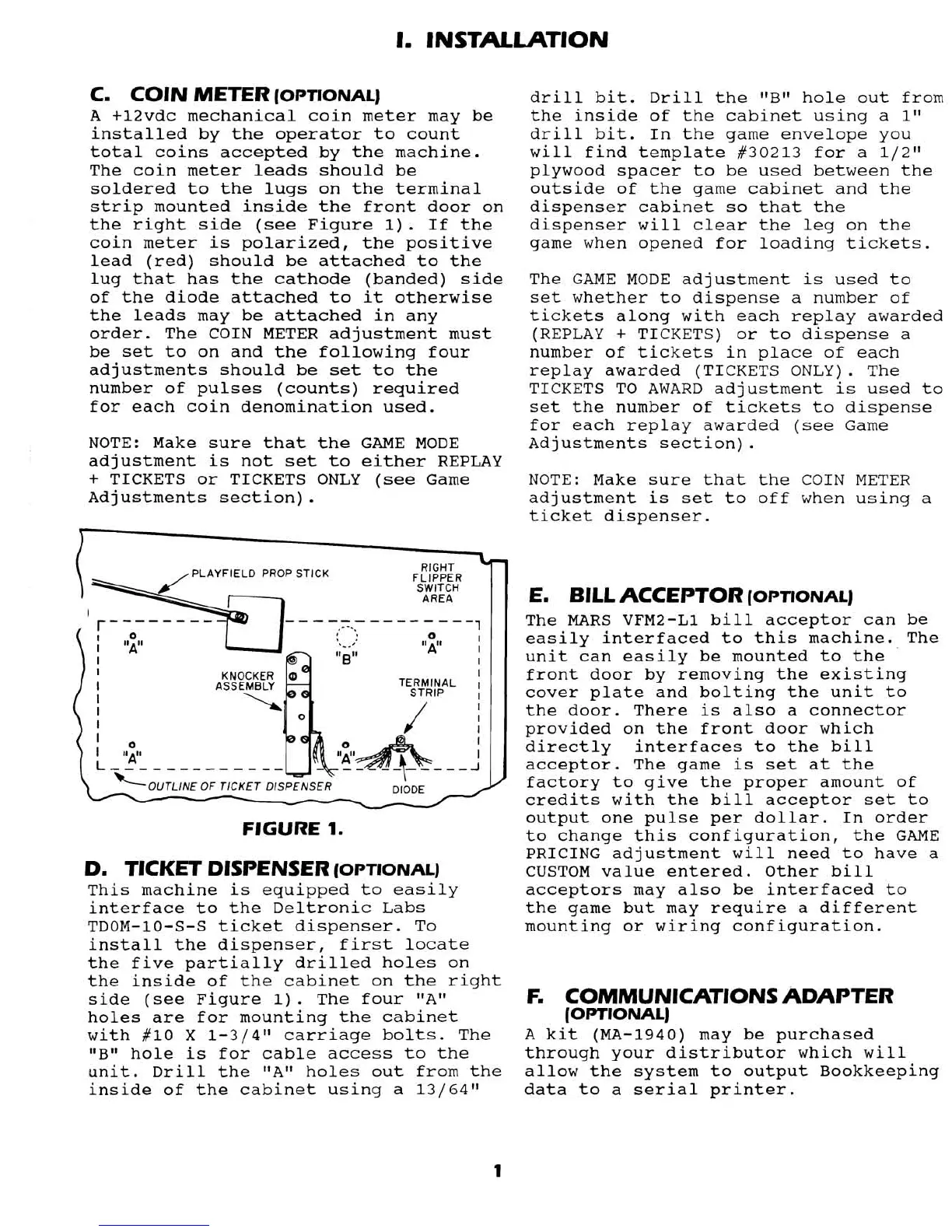

C.
COIN METER
(OPTIONAL)
A +12vdc mechanical coin meter may be
installed by the operator to count
total coins accepted by the machine.
The coin meter leads should be
soldered to the lugs on the terminal
strip mounted inside the front door on
the right side (see Figure 1). If the
coin meter is polarized, the positive
lead (red) should be attached to the
lug that has the cathode (banded) side
of the diode attached to it otherwise
the leads may be attached in any
order. The COIN METER adjustment must
be set to on and the following four
adjustments should be set to the
number of pulses (counts) required
for each coin denomination used.
NOTE: Make sure that the GAME MODE
adjustment is not set to either REPLAY
+
TICKETS or TICKETS ONLY (see Game
Adjustments section)
.
PLAYFIELD PROP STICK
RIGHT
FLIPPER
SWITCH
AREA
-----------
I
I
TERMINAL STRIP
I
I
FIGURE
1.
D.
TICKET DISPENSER
(OPTIONAL)
This machine is equipped to easily
interface to the
Deltronic Labs
TDOM-10-S-S ticket dispenser. To
install the dispenser, first locate
the five partially drilled holes on
the inside of the cabinet on the right
side (see Figure 1)
.
The four tlAtl
holes are for mounting the cabinet
with #10
X
1-314" carriage bolts. The
ttBtt hole is for cable access to the
unit. Drill the
ttAtt holes out from the
inside of the cabinet using a
13/64"
drill bit. Drill the l1Bl1 hole out from
the inside of the cabinet using a
ltt
drill bit. In the game envelope you
will find template
#30213 for a 1/2It
plywood spacer to be used between the
outside of the game cabinet and the
dispenser cabinet so that the
dispenser will clear the leg on the
game when opened for loading tickets.
The GAME MODE adjustment is used to
set whether to dispense a number of
tickets along with each replay awarded
(REPLAY
+
TICKETS) or to dispense a
number of tickets in place of each
replay awarded (TICKETS ONLY). The
TICKETS TO AWARD adjustment is used to
set the number of tickets to dispense
for each replay awarded (see Game
Adjustments section).
NOTE: Make sure that the COIN METER
adjustment is set to off when using a
ticket dispenser.
E. BILL ACCEPTOR
(OPTIONAL)
The MARS VFM2-L1 bill acceptor can be
easily interfaced to this machine. The
unit can easily be mounted to the
front door by removing the existing
cover plate and bolting the unit to
the door. There is also a connector
provided on the front door which
directly interfaces to the bill
acceptor. The game is set at the
factory to give the proper amount of
credits with the bill acceptor set to
output one pulse per dollar. In order
to change this configuration, the
GAME
PRICING adjustment will need to have
a
CUSTOM value entered. Other bill
acceptors may also be interfaced to
the game but may require a different
mounting or wiring configuration.
F.
COMMUNICATIONS ADAPTER
(OPTIONAL)
A kit (MA-1940) may be purchased
through your distributor which will
allow the system to output
~ookkeeping
data to a serial printer.
