GPS Tracker TK102 User Manual

6.2 Light and Button Functionality
Blue LED (GPS light) - indicating GPS status
On
One or more inputs are active
Flashing ( every 0.1 second)
The unit is being Initialized
Flashing (on for 0.1 second and off for 2.9 seconds)
TK102 has a GPS fix
Flashing (on for 1 second and off for 2 seconds)
TK102 has no GPS fix
Green LED (GSM light) - indicating GSM status
On
One call is coming in/ one call is being made
Flashing ( every 0.1 second)
The unit is being Initialized
Flashing (on for 0.1 second and off for 2.9 seconds)
TK102 is connected to the GSM network
Flashing (on for 1 second and off for 2 seconds)
TK102 is not connected to the GSM network
SOS Button Press it to send SMS alert
6.3 Installation
Read this manual before using your TK102 and check if all parts are included in the packaging box.
Ensure that your TK102 has a working SIM installed.
- Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and receive SMS)
- Check that the SIM Lock code is turned off
- If you require the function of sending an SMS location report to the authorized phone number when it makes a call to
the TK102, please make sure the SIM installed supports displaying caller ID.

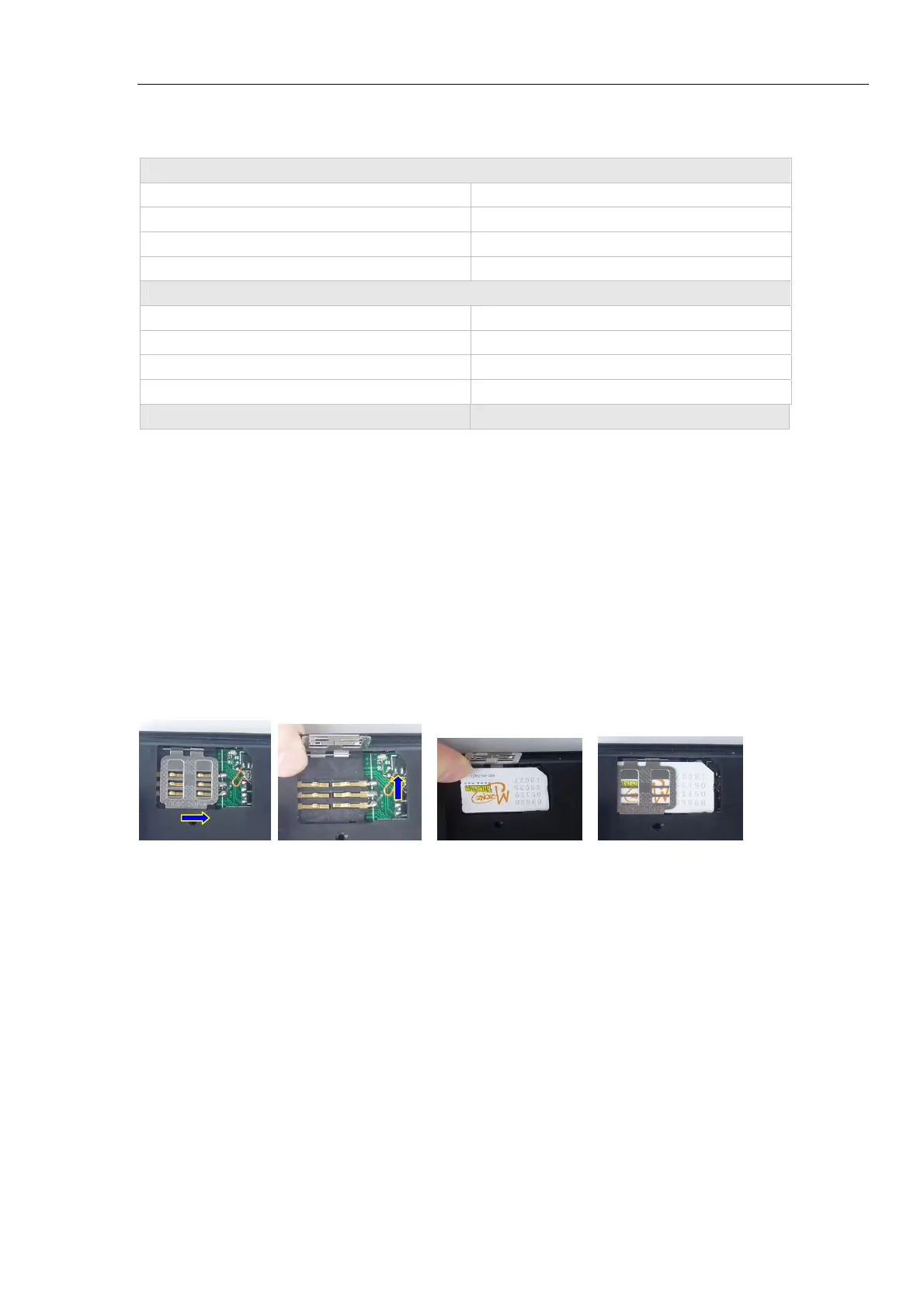

- Insert the SIM card by sliding it into the card slot with the chip module facing to the connectors on PCB.
- Put back The battery and close the cover
- Battery and Charger
Do charge the battery to capacity in 8 -12 hours for first use. Please use the battery and charger provided by the
manufacturer. This unit adopts built-in Li-ion battery, and full battery will support around 48 hours use on end. After first
use, the battery can be charged fully in 3-5hours.
Cautions:
a: For it’s Li-ion battery, which contains harmful chemicals and may burst, please don’t bump, puncture it violently and
keep it off fire.
b: Please charge the battery in time to keep it working normally.
Mini USB Port
Connect the tracker with computer by USB cable for configuration and reading stored waypoints data. You need to
install the driver - PL-2303 Driver Installer - for using the USB cable.
Refer to <GPS Tracker Parameter Editor> for configuration and <GPSLog User Guide> for reading stored
waypoints.
- 6 -

GPS Tracker TK102 Specifications

General

Weight	50g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS Chip	SIRF3 chip
GPS Sensitivity	-159dBm
GPS Accuracy	5m
Standby Time	80 hours
Time To First Fix	Cold status 45s, Warm status 35s, Hot status 1s
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing
SOS Button	Yes
Geo-fence	Yes
Tracking Modes	SMS, GPRS
Waterproof	No
Battery	3.7V Li-ion battery
Dimensions	46mm(L) x 64mm(W) x 17mm(H)
Operating Time	Up to 48 hours (depending on usage and network conditions)
