GQ Electronics EMF-390V2 User Manual

12

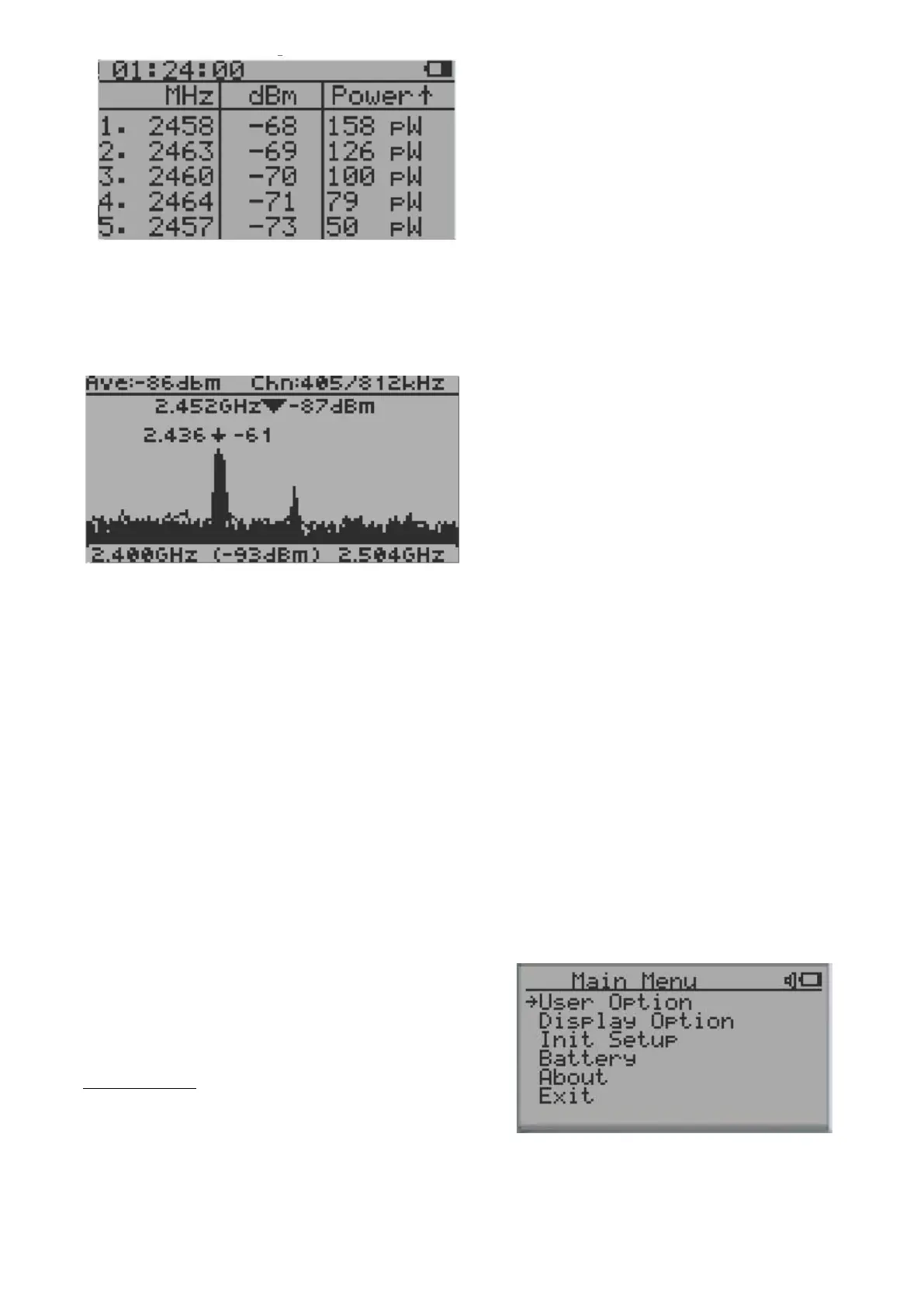

Table Mode RF Power top 5 list
(EMF-360+V2, EMF-380V2, EMF-390 Only)
RF Power Graph (Except EMF-360)
Information shown on this graph:
Average (top left): -86dbm
Frequency checked scope (bottom line, left and right): 2.400GHz – 2.504GHz
Channel step: 405 kHz
Channel bandwidth: 812 kHz
User cursor position: 2.452Ghz, -87dBm
Current peak: 2.436 Ghz, -61dBm
Main Menu
In any display mode, press S4 to enter the menu mode.
Navigation keys:
S1: Back S2: Up S3: Down S4: Select/Enter

GQ Electronics EMF-390V2 Specifications

General

Brand	GQ Electronics
Model	EMF-390V2
Category	Measuring Instruments
Language	English
