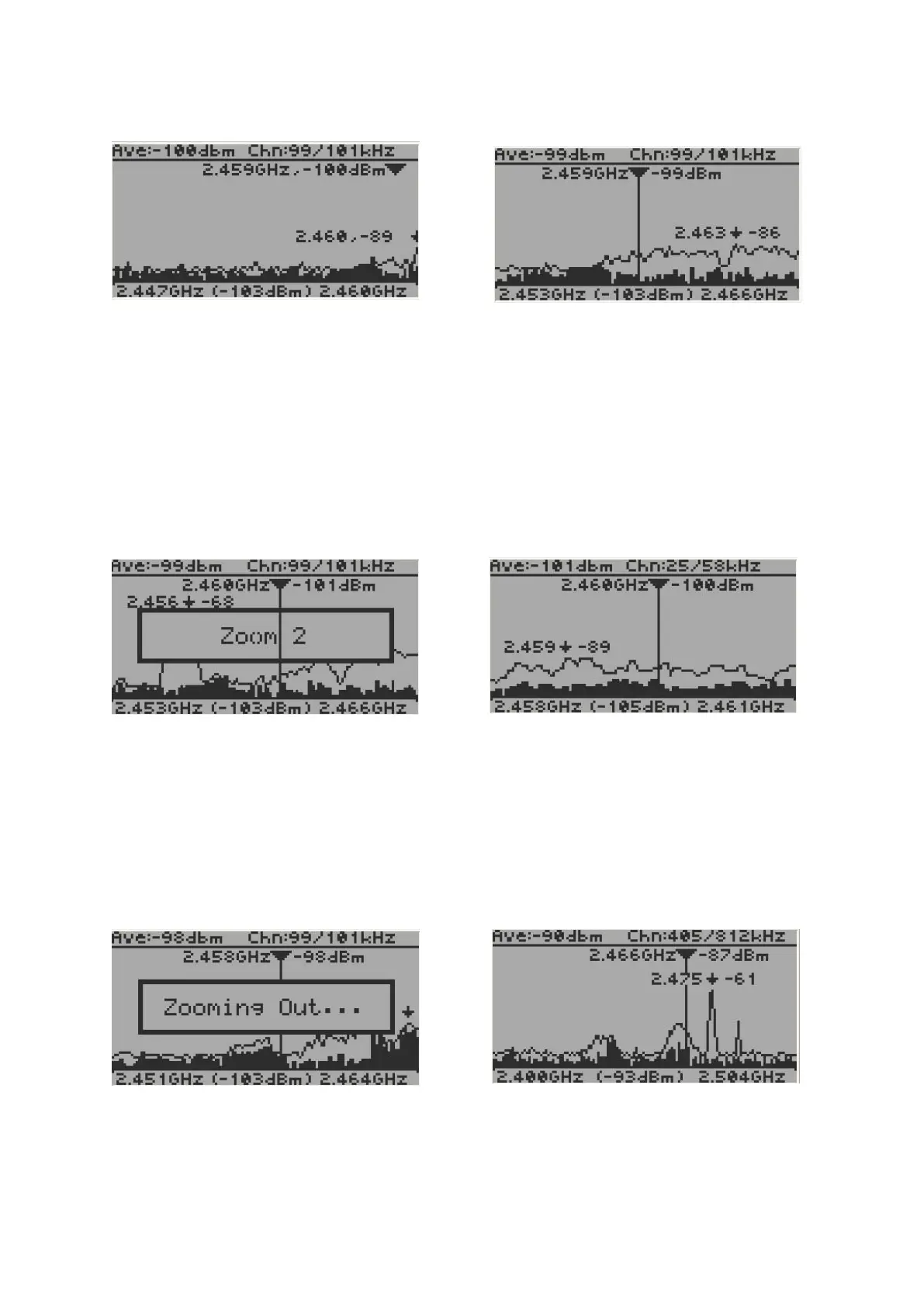

Below shows the unit automatically adjusting the bandwidth (from 2.447GHz-2.460GHz to
2.453GHz2.466GHz) when the user cursor reaches the boundary.
By pressing S3 and hold for 1 second, you can zoom in the current cursor channel for detailed information.
Note that there are two zoom levels. To reach zoom 2 level, you have to do zoom 1 first, and press S3 and
hold for 1 second again.
Here is an example of ZOOM2. Under ZOOM1 level, press and hold S3 for one second, the display goes to
level 2 zooming. the start and end frequency scope changed from 2.453GHz-2.466GHz to 2.458GHz-
2.461GHz, which allows you to see more details of the specific scope.
By pressing S2 and hold it for 1 second, you can zoom out from current zooming mode and see the overall
band data.
Here is an example for zooming out. Pressing and hold S2 for one second. The display will back to original
bandwidth. The start and end frequency is changed from 2.451GHz-2.464GHz to 2.400GHz-2.504GHz, which
allows you to see overall band data.
RF Spectrum Example
Select RF Spectrum Analyzer feature from the main feature screen:
