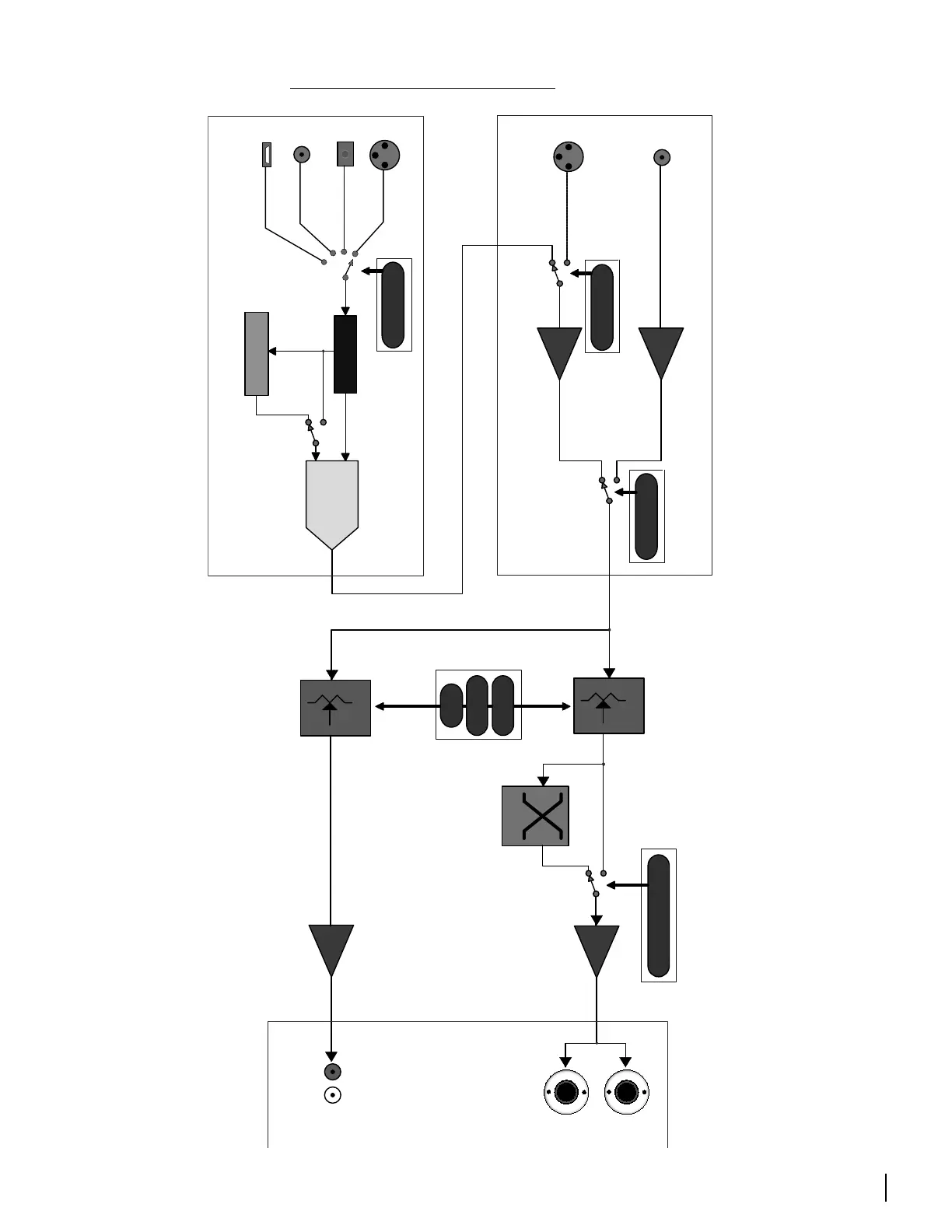

m902 BLOCK DIAGRAM
LINE OUTPUT AMPLIFIER
DAC
UNBALANCED ANALOG INPUT BALANCED ANALOG INPUT
BALANCED INPUT AMP
UNBALANCED INPUT AMP
2-CHANNEL
2-CHANNEL
HEADPHONE
INPUT SELECT
AES INPUT
AES3 RX
DIGITAL INPUTS
S/PDIF INPUT
TOSLINK INPUT
s-Lock PLL
CLOCK
AUDIO
192kHZ / 24 BIT
USB INPUT
ANALOG INPUTS
INPUT SELECT
INPUT SELECT
CROSSFEED
LINE OUTPUT
LEVEL CONTROL
HEADPHONE OUTPUT
LEVEL CONTROL
UNBALANCED
ANALOG OUTPUT
CROSSFEED ENABLE
OUTPUTS
HEADPHONE AMPLIFIER
TRANSIMPEDANCE
OUTPUTS
MUTE
BALANCE
LEVEL
