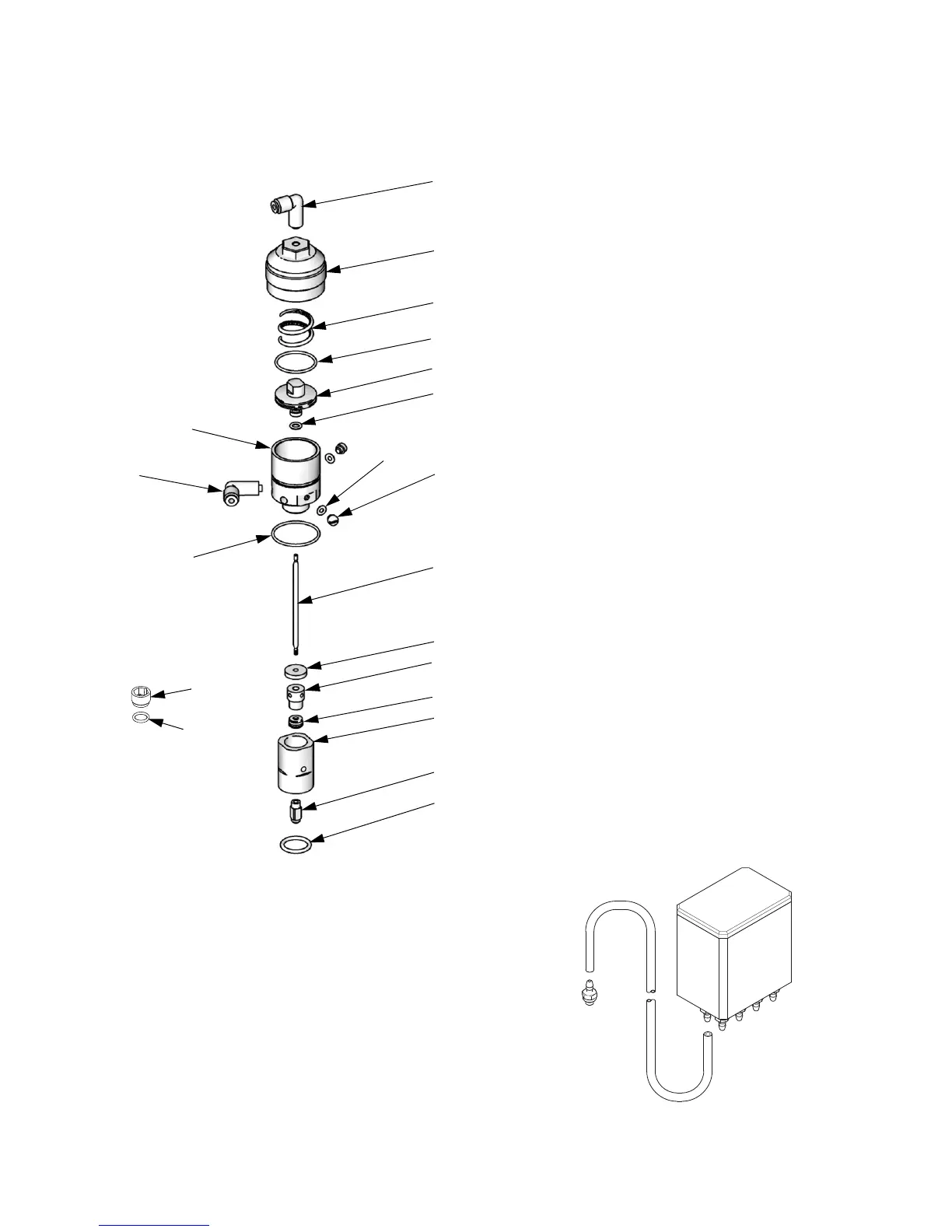

24T785 High Pressure Valve for Acid Catalyzed Materials
* Parts included in Rebuild Kit 24T817 and 25N725
(purchase separately). Rebuild Kit 24T817 contains
a PEEK seat retainer. Rebuild Kit 25N725 contains a
17-4 PH stainless steel seat retainer.
--- These parts are not available separately.
† For PD2K system: When replacing the 24T785 dis-
pense valve, install a new valve seat retainer (27)
and o-ring (28) into the manifold or adapter.
24T302 TSL Cup (Option)
Mount the cup and connect one tube to fluid body (3) to
lubricate seal (4). See the ProMix PD2K Installation
manual for instructions.
TI11582A
19*
9
*17
12
6
5*
7*
13
3
8*
14
4*
11
15
15
22*
23*
20*
TI29428A
28†
27†
Ref.
No. Part No. Description Qty
3--- BODY, fluid 1
4* --- SEAL, u-cup, spring applied;
uhmwpe
1
5* --- BEARING, needle 1
6--- BODY, air 1
7* --- O-RING, shaft, piston; buna-N 1
8* --- O-RING, body, piston; buna-N 1
915T413PISTON 1
11 --- CAP, valve 1
12 15T454 SPRING, compression 1
13 104640 GASKET; buna-N 2
14 104644 PLUG, screw 2
15 109193 ELBOW, tube fitting; 10-32 x 5/32
in. (4 mm) OD tube
2
17* --- O-RING, body, air; buna-N 1
19 --- PACKING; uhmwpe 1
20* --- O-RING; ptfe 1
22* --- SHAFT, needle 1
23* --- BALL ASSEMBLY, needle 1
27† --- SEAT, valve, retainer 1
28† --- O-RING, ptfe 1
TI29426A
