Parts
312782J 13

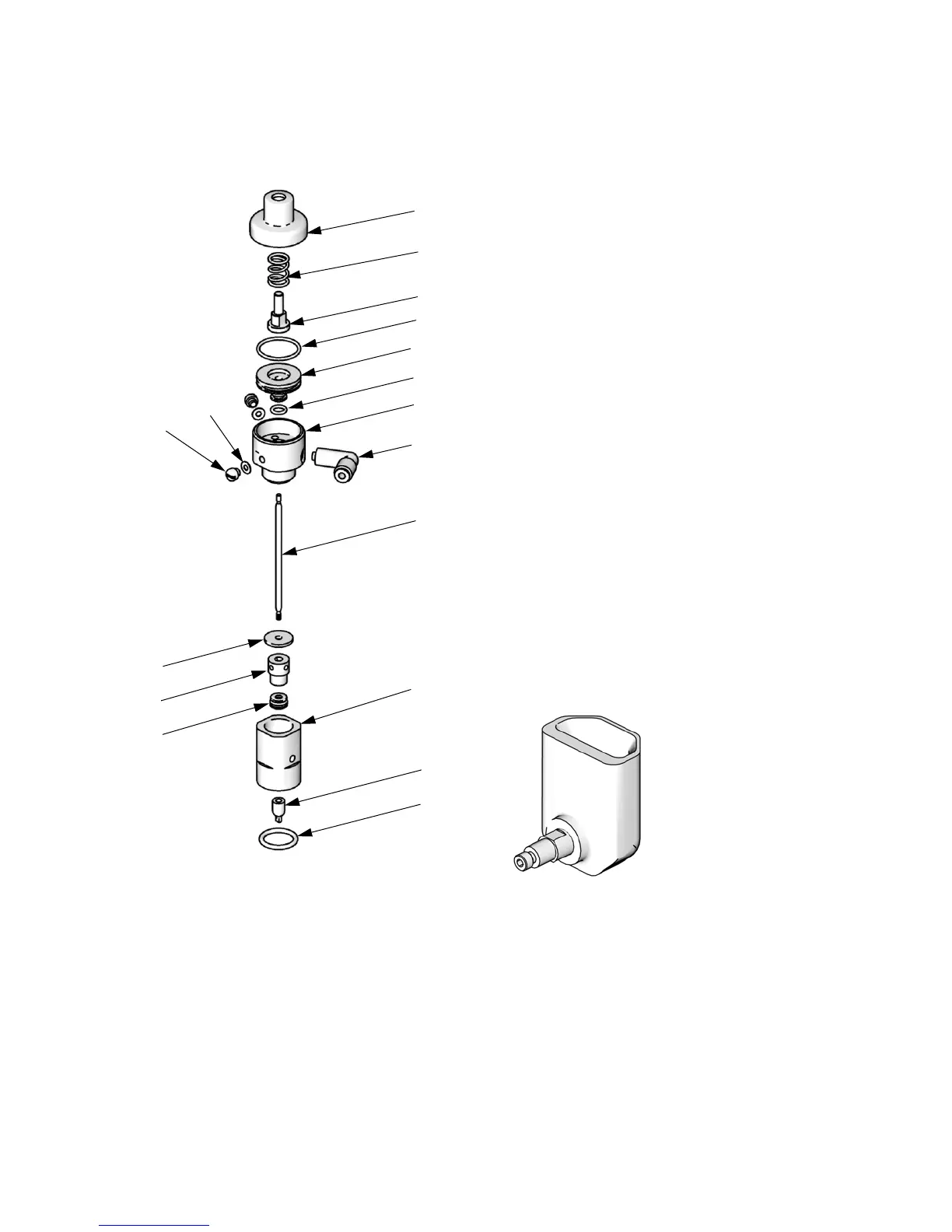

15X304 Low Pressure Valve
* Parts included in Rebuild Kit 15W621 (purchase sep-
arately).
--- These parts are not available separately.
15V737 Valve Lubricator Cup (Option)
Install in fluid body (3) to lubricate seal (4).
TI11664A
9
*4
12
6
*5
7*
13
3
8*
22*
14
11
15
10
*19
20*
23*
Ref.
No. Part No. Description Qty
3--- BODY, fluid 1
4* --- SEAL, u-cup, spring applied;
uhmwpe
1
5* --- BEARING, needle 1
6--- BODY, air 1
7* --- O-RING, shaft, piston; buna-N 1
8* --- O-RING, body, piston; buna-N 1
9 180538 PISTON 1
10 15T452 RETAINER, piston 1
11 180612 CAP, valve 1
12 108017 SPRING, compression 1
13 104640 GASKET; buna-N 2
14 104644 PLUG, screw 2
15 109193 ELBOW, tube fitting; 10-32 x 5/32
in. (4 mm) OD tube
1
19* --- PACKING; uhmwpe 1
20* --- O-RING; ptfe 1
22* --- SHAFT, needle 1
23* --- BALL ASSEMBLY, needle 1
TI13019A
