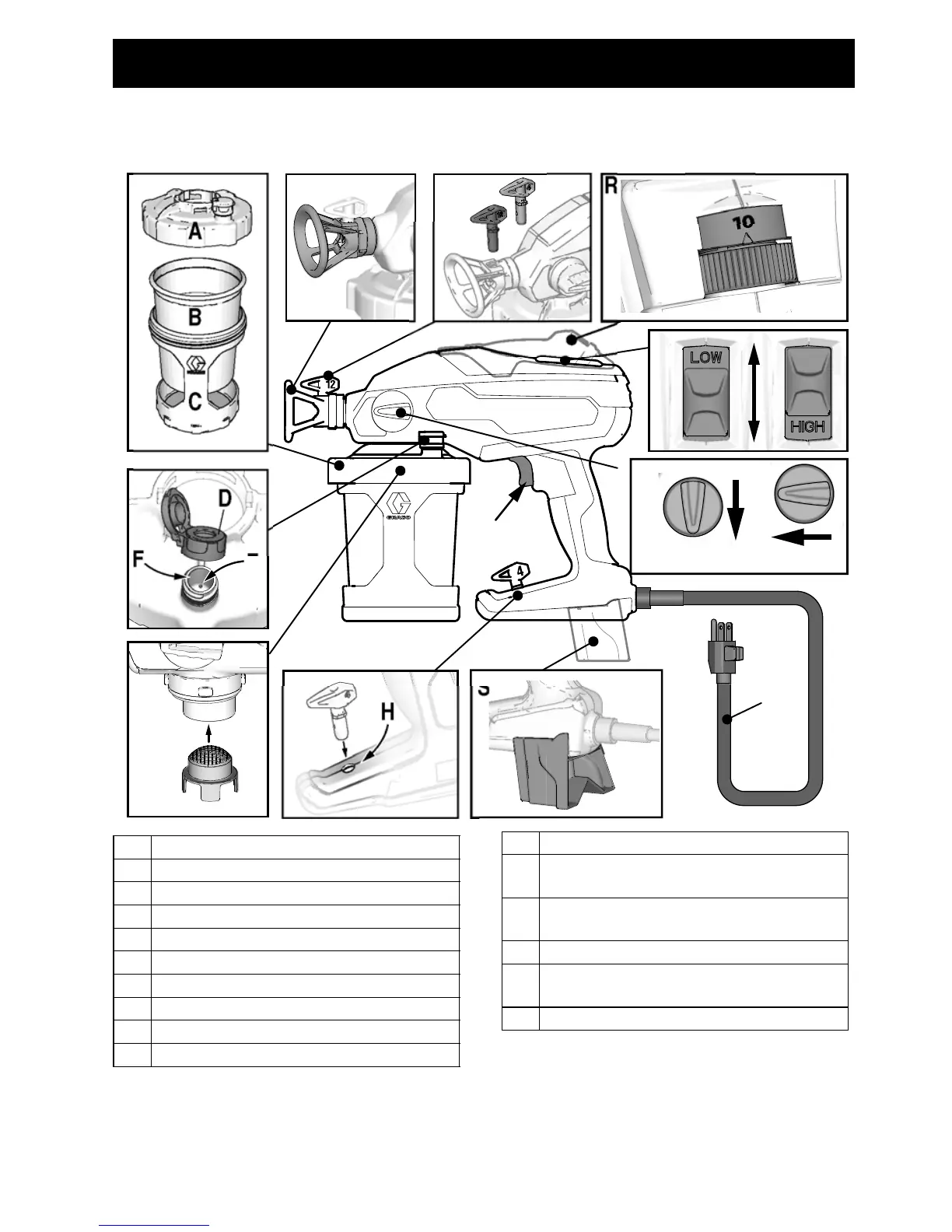

Component Identification
333394H 7
Component Identification
A
B
C
D
E
F
G
H
N
L
K
S
R
Spray
J
M
ti25736a
P
Prime Pump
A Cup Cover
B FlexLiner
C Cup Support
D VacuValve Cap
E VacuValve Air Hole
F VacuValve Reservoir
GStrainer
H Spray Tip Holder
J Prime Pump/Spray Knob
K Power Cord
L Sprayer Trigger
M Dual Speed Control, HIGH/LOW
Switch (DS and DSP models only)
N Spray Tip, Black (12-inch pattern)
Spray Tip, Gray (4-inch pattern)
P Spray Tip Guard
R Variable Speed Control (VSP models
only)
S Kickstand
