Graco 210ES Plus - Fan Replacement

Fan Replacement
312805A 15
Fan Replacement
Removal
1. Relieve pressure, page 5. Disconnect power cord
from outlet.
2. Remove the following from 210
ES Hi-boy models:
a. Remove kick stand (66)
.
b. Remove two screws (5) and toolbox (3).
3. Remove two screws (11) and front cover (32).
4. Remove screw (13) and shroud (12).
5. Remove retaining ring (57b) on back of motor.
6. Pull off fan (57a).
Installation
1. Slide new fan (57a) on back of motor. Be sure fan
blades face motor.
2. Install spring clip (57b).
3. Install shroud (12) with screw (13).
4. Install front cover (32) with two screws (11).
5. Install the following on 210
ES Hi-Boy models:
a. Install toolbox (3) with two screws (5).
b. Install kick stand (66).

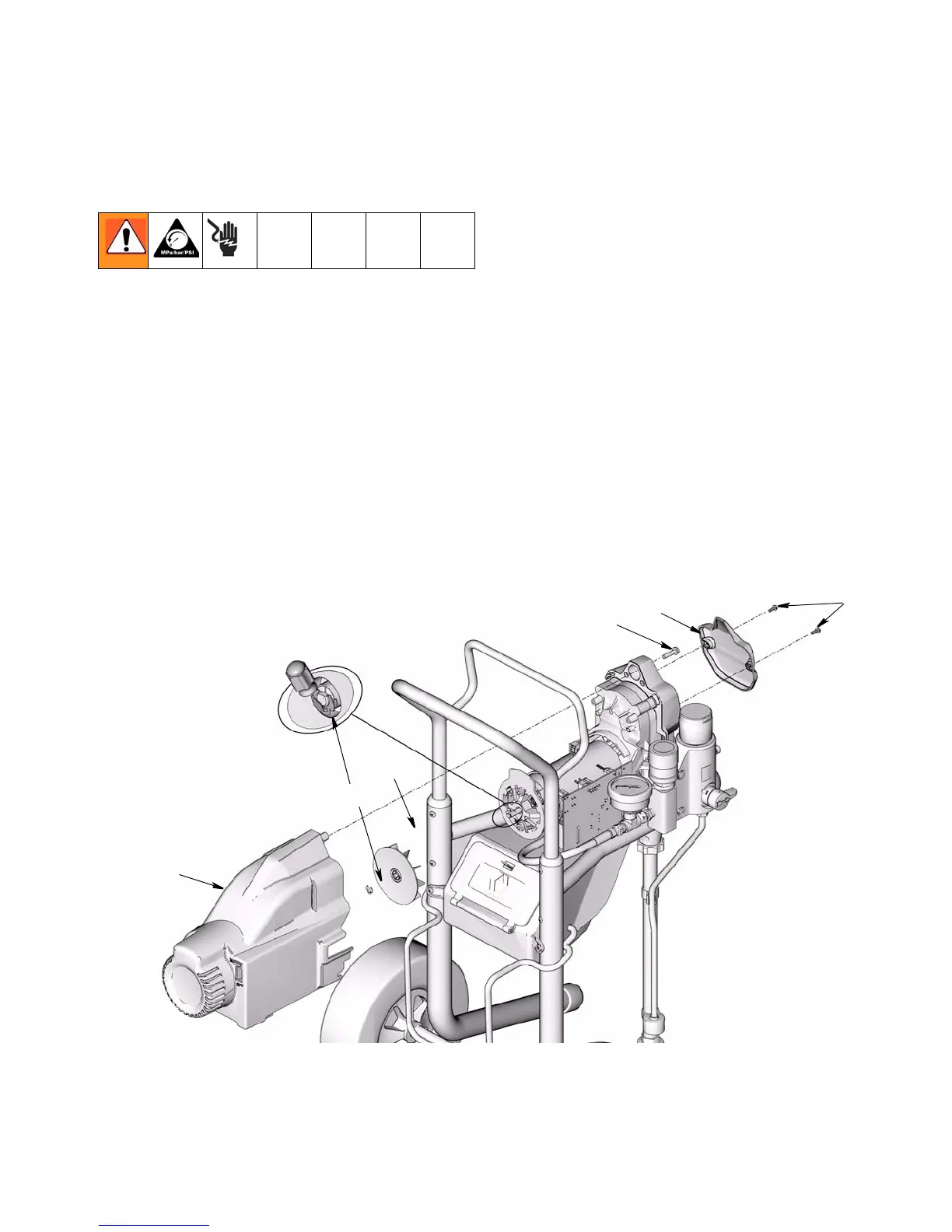

57b
57a
11
12
ti11550a
13
32
