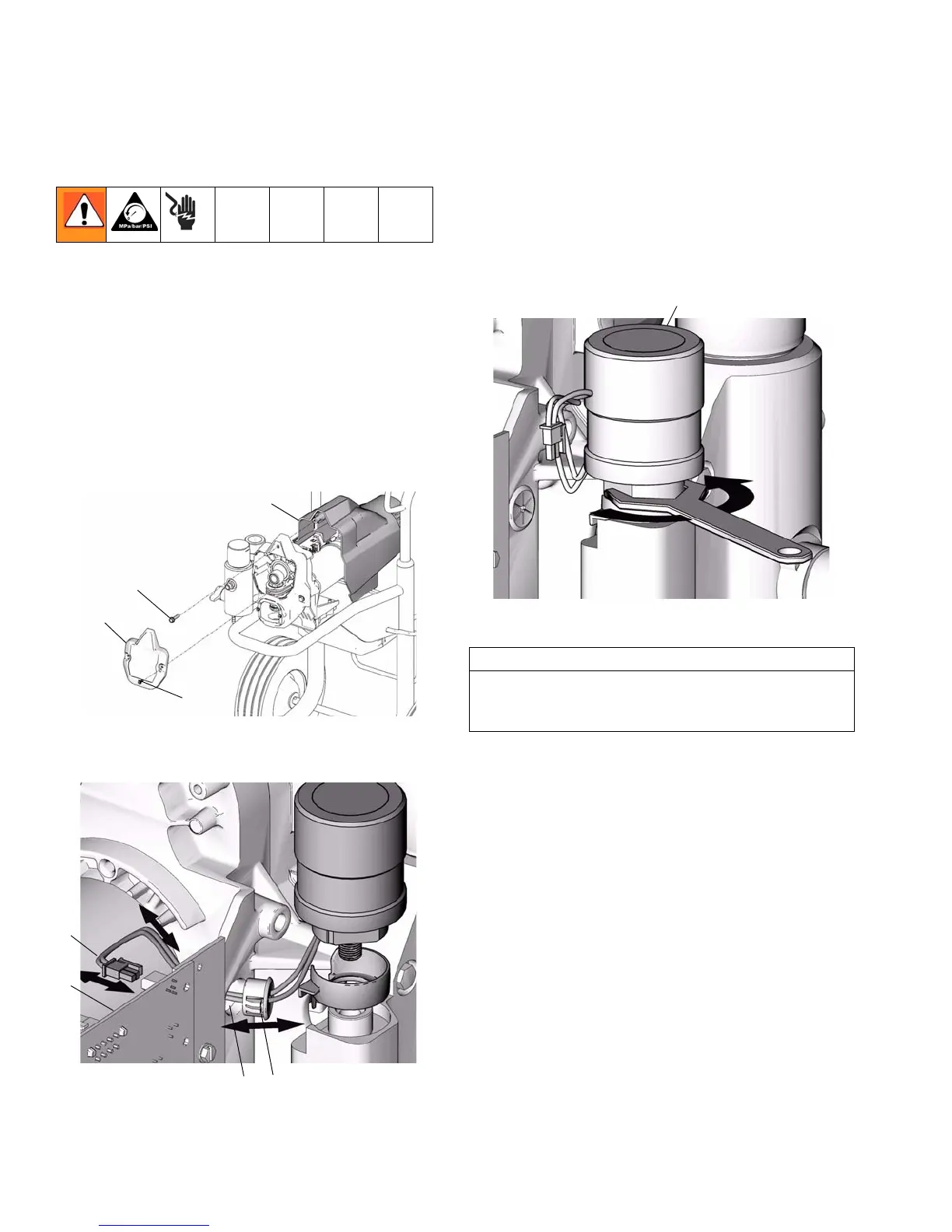

Pressure Control Assembly Replacement
20 312805A
Pressure Control Assembly Replacement
See Wiring Diagram, page 26.
Removal
1. Relieve pressure, page 5. Disconnect power cord
from outlet.
2. Remove the following from 210
ES Hi-boy models:
a. Remove kick stand (66)
.
b. Remove two screws (5) and toolbox (3).
3. Remove two screws (11) and front cover (32).
4. Remove screw (13) and shroud (12).
5. Disconnect pressure switch connector (A) from con-
trol board (18). Pull bushing (23) from hole (K).
6. Pull wires through hole (K).
7. Turn pressure control knob (17) counter clockwise
as far as you can to access flats on either side of
pressure control.
8. Loosen and unscrew pressure control.
9. Remove pressure control.
11
13
12
32
ti9130a
18
A
K
23
ti9129a
Caution
If you plan to reuse pressure control, be careful not to
damage or tangle wires when unscrewing pressure
control.
17
ti9128a
