Fuse Replacement
312805A 19
Fuse Replacement
If the fuse is blown, check for:
• Pinched or shorted wires
• A defective motor (see Spin Test, page 15)
• A locked or frozen pump
Correct defective condition before replacing fuse.
Removal
1. Relieve pressure, page 5. Disconnect power cord
from outlet.
2. Remove the following from 210
ES Hi-boy models:
a. Remove kick stand (66)
.
b. Remove two screws (5) and toolbox (3).
3. Remove two screws (11) and front cover (32).
Remove screw (13) and shroud (12) (see illustra-
tion, page14).
4. Remove fuse from control board.
Installation
1. Install Fuse 119277 on control board.
2. Install shroud (12) with screw (13). Install front cover
(32) with two screws (11). (see illustration, page 14).
3. Install the following on 210
ES Hi-Boy models:
a. Install toolbox (3) with two screws (5).
b. Install kick stand (66).

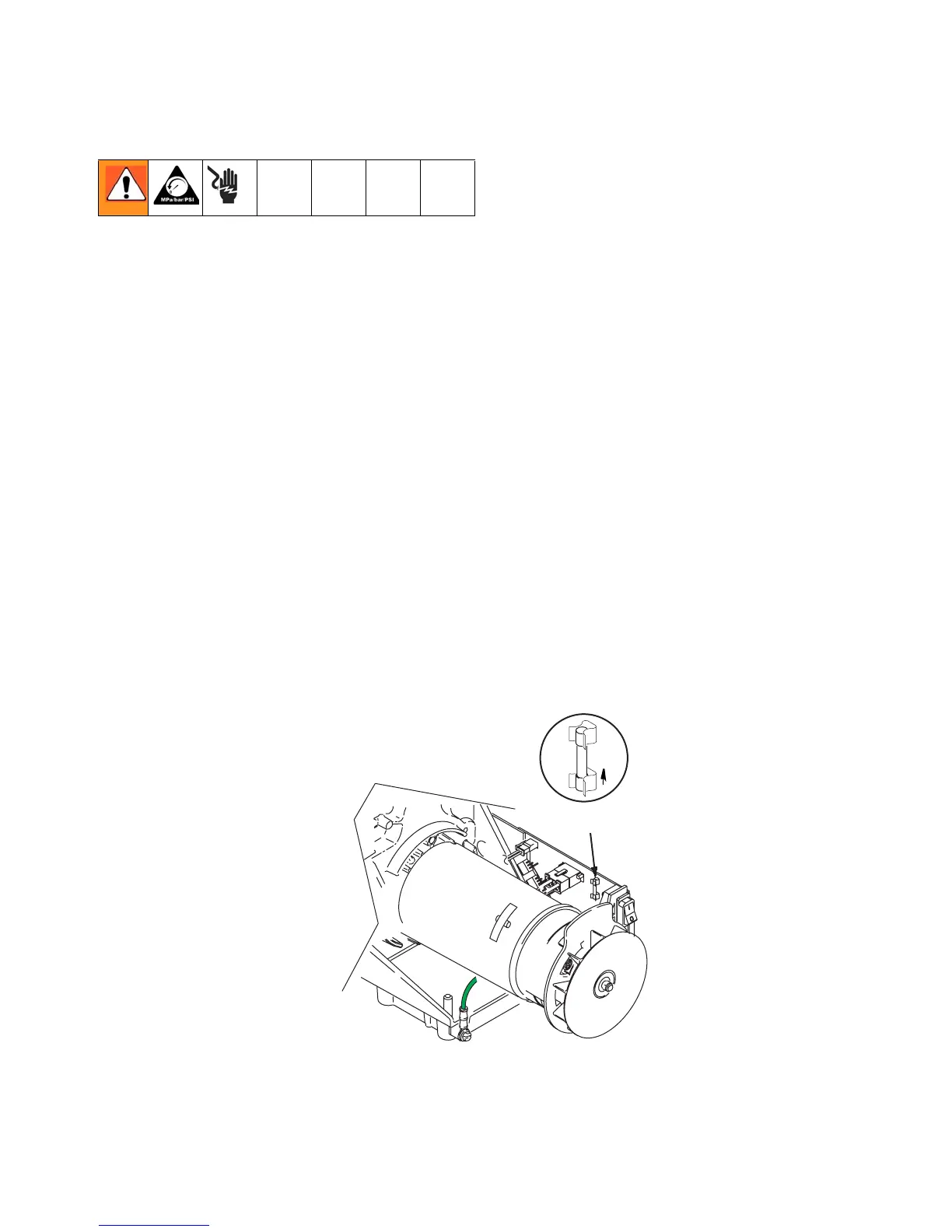

Replaceable Fuse
ti9134b
