Graco 210ES Plus - Wiring Diagrams

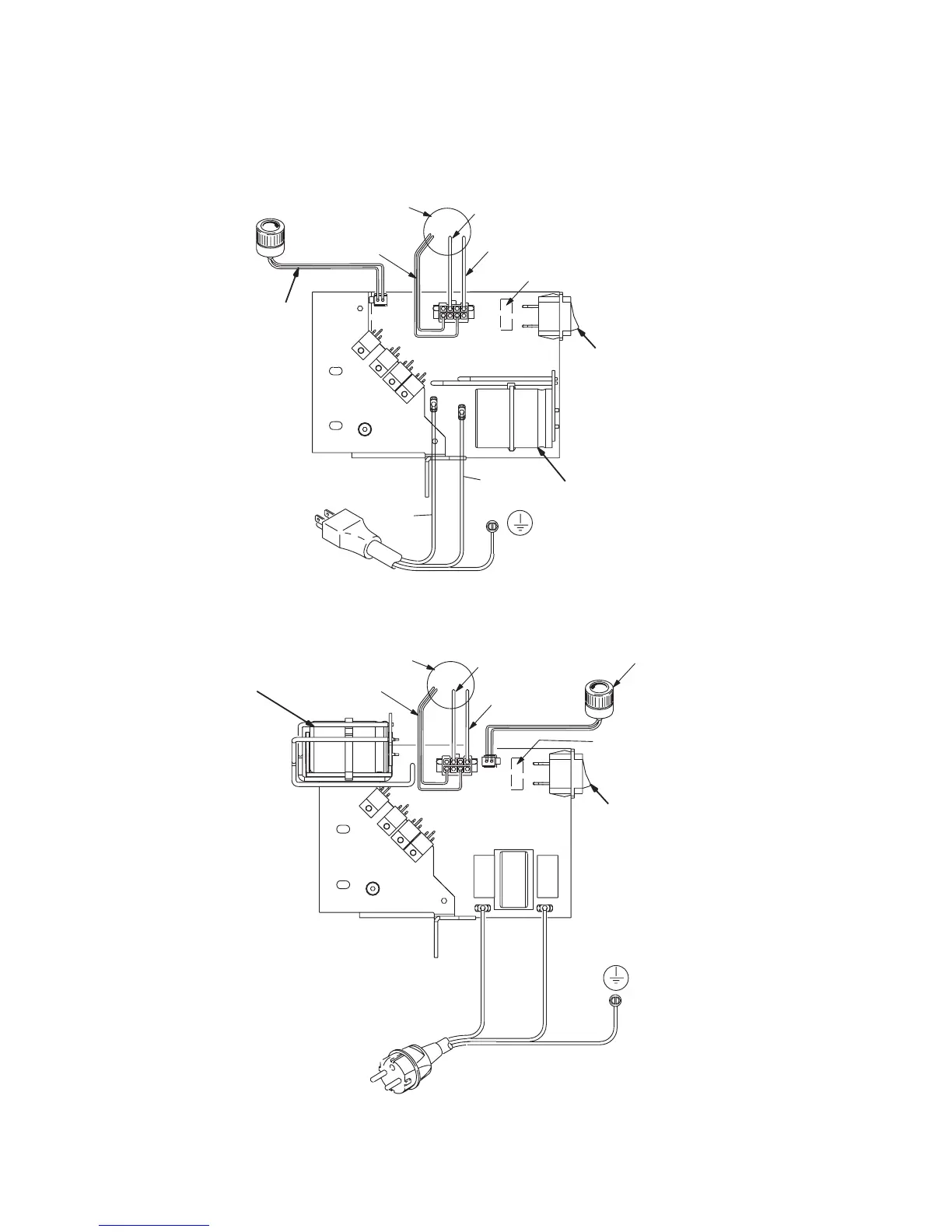

Wiring Diagrams
26 312805A
Wiring Diagrams
Red (+)
Black (-)
Pressure
Control
Assembly
Power
Plug
White
Green
Black
from Motor
2 x Yellow
ON/OFF
Switch
ti5643a
Capacitor
Replaceable Fuse
Black (-)
Power
Plug
Blue
Green
Brown
ON/OFF
Switch
Pressure Control
Assembly
Red (+)
from Motor
2 x Yellow
Capacitor
ti5857a
Replaceable Fuse
120V
ti5643a1
ti5857a
240V
