Parts

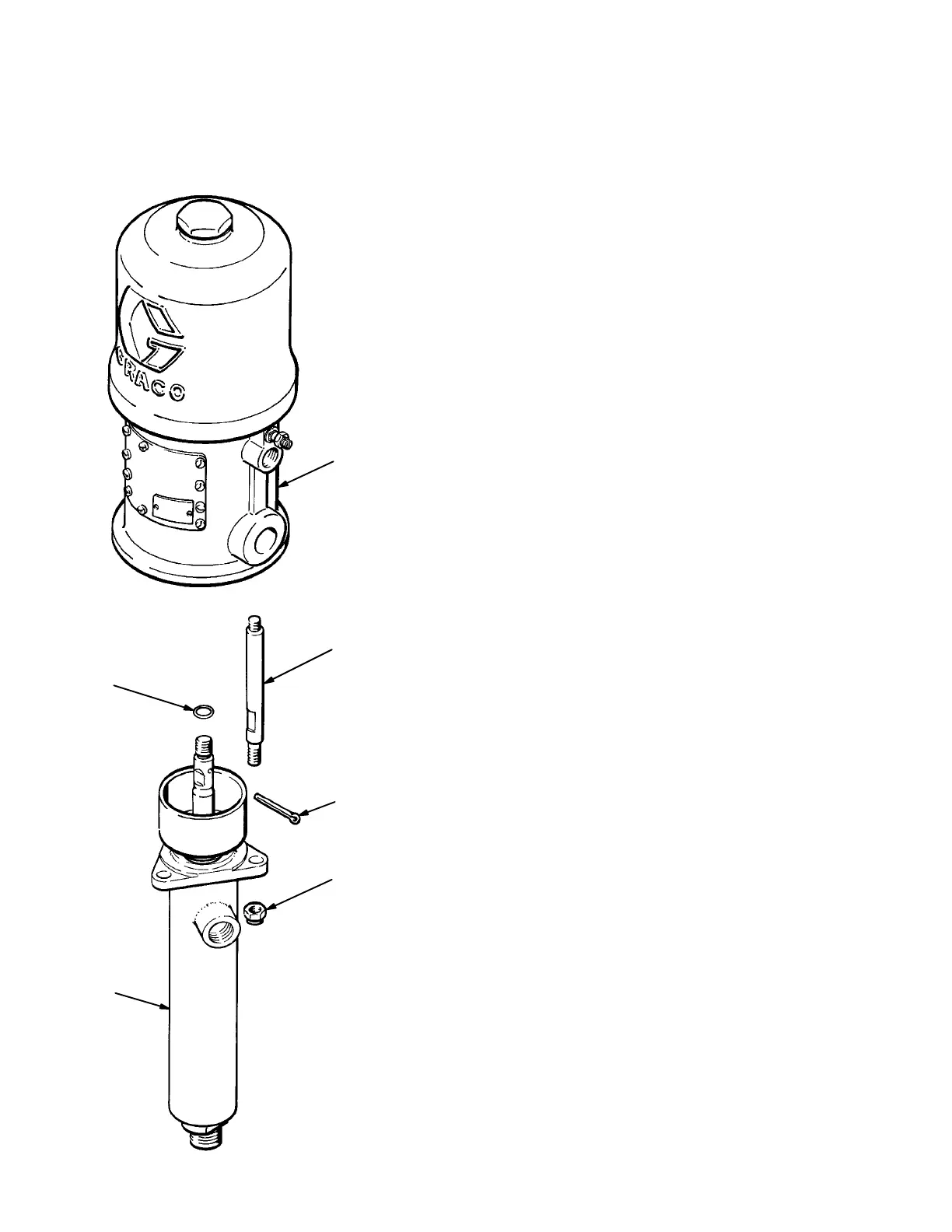

Model 223843, Series
30:1 Ratio Presidentr Pump
Includes items 101--110
REF PART
NO. NO. DESCRIPTION QTY
101 207352 AIR MOTOR
See 306982 for parts 1
102 223842 DISPLACEMENT PUMP ASSY
See pages 18 and 19 for parts 1
105† 101946 PIN, cotter; stainless steel;
0.12” (3.2 mm) x 1.5” (3.8 mm) 1
106 101566 NUT, lock; 3/8--16 3
107† 156082 SEAL, o--ring; nitrile rubber 1
110 168221 ROD, tie; carbon steel;
4.5” (114 mm) shoulder--to--shoulder 3
† Recommended “tool box” spare parts. Keep on hand to re-
duce downtime.
306 and 307 numbers in descriptions refer to separate instruc -
tion manuals, supplied.
†107
110
105†
102
101
106
