308-683 31
Technical
Data
Power
Requirements
1
10 V
AC, 50 Hz,.
. . . . . . . . . . . . . . . . . .
1
phase, 15A minimum
Generator
3000W minimum
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working
Pressure Range
0–2750 psi
.
. . . . . . . . . . . . . . . . . . . .
(0–195
bar
, 0–19.5 MPa)
Motor
1/2 hp
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cycles/Gallon
(liter)
620 (164)
.
. . . . . . . . . . . . . . . . . . . . . . . . . .
Delivery 0.33
gpm (1.25 lpm)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tip Size
one gun to 0.019 new tip
.
. . . . . . . . . . . . . . . . . . . . . . .
with
latex at
2000 psi (138 bar, 13.8 MPa)
Power Cord
14 A
WG, 3 wire, 6 ft (1.8 m)
.
. . . . . . . . . . . . . . . . .
Inlet
Paint Strainer
12 mesh (1525 micron)
.
. . . . . . . . . . . . . . .
Stainless
Steel Screen, reusable
Pump Inlet Size
1/2 npt(f)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid
Outlet Size
1/4 npsm
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wetted Parts:
Displacement Pump
Stainless steel, Carbon steel,
.
. . . . . .
Teflon,
Aluminum, Polyethylene, Delrin
, Leather
NOTE:
T
eflon and Delrin
are
trademarks of the DuPont Company
.
Dimensions
Model
231–364
Weight
(dry w/o packaging)
37 lb (17 kg)
Height
19 in. (483 mm)
Length
15 in. (381 mm)
Width
14 in. (356 mm)
French 185–956
Spanish 185–961
German 186–041
Greek 186–045
Korean 186–049
English 185–953
DANGER
LABELS
The English language DANGER label shown on
page 1 is also on your sprayer
. If you have paint
-
ers who do not read English, order one of the
following labels to apply to your sprayer
. The

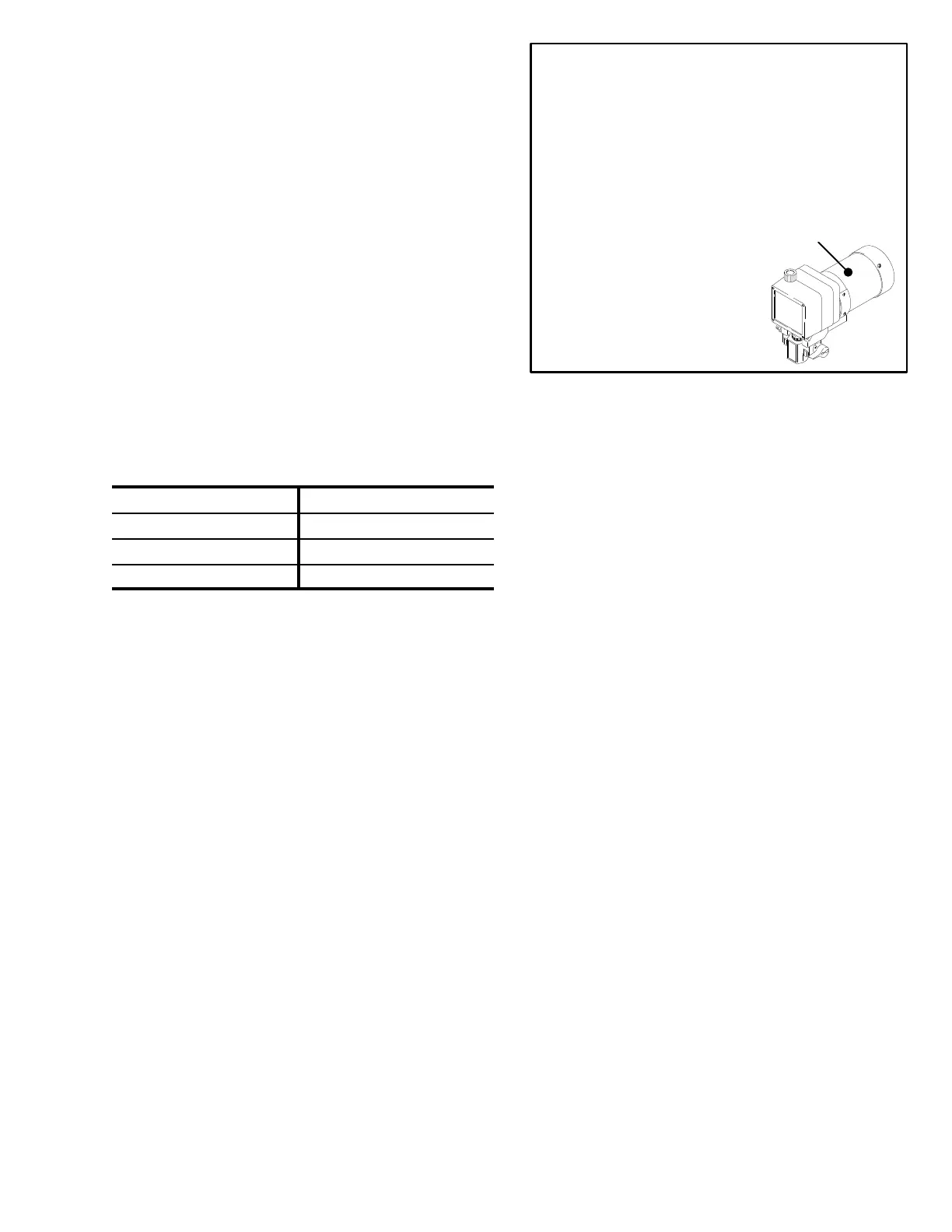

drawing below shows the best placement of these
labels for good visibility
.
Order the labels directly from Graco, free of
charge: 1–800–328–021
1
Apply
other
language here
04653
