Graco 231-298 - Component Identification and Function

308-683 5
02823A

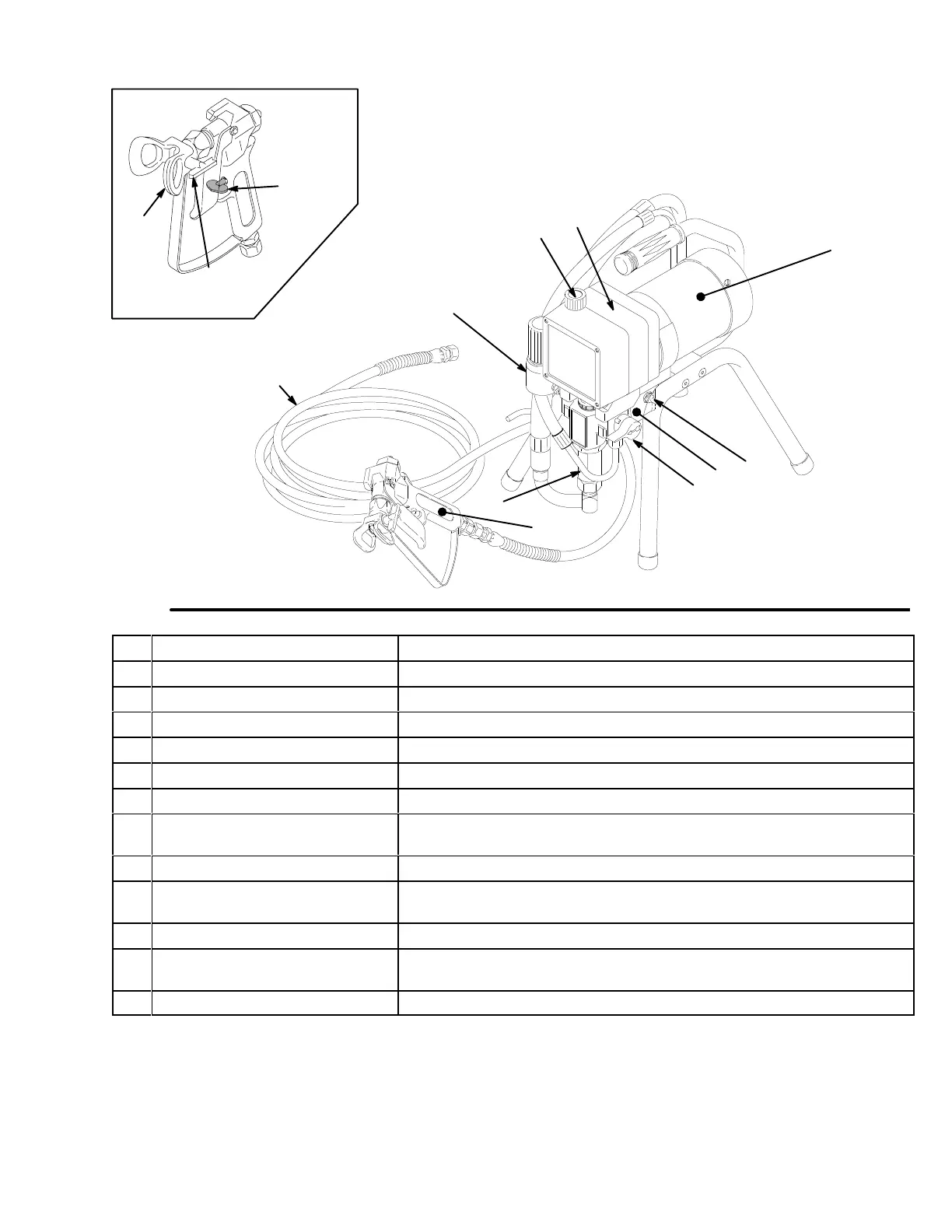

Component Identification and Function
C
Fig. 1
G
E
F
D
A
K
M
B
H
N
J
L
Model 231–298 Shown
A Motor DC motor , 120 V ac, 15A, 1 phase
B Drive Assembly T ransfers power from DC motor to the displacement pump
C Pressure Adjusting Knob Controls fluid outlet pressure
D ON/OFF Switch Power switch that controls 120 V ac power to sprayer
E Fluid Outlet Hose and spray gun is connected here
F Displacement Pump Pressurizes fluid to be sprayed through spray gun
G 50 ft (15 m) Main Hose 1/4 in. ID, grounded, nylon hose with spring guards on both ends
H RAC IV T ip Guard Reverse-A-Clean (RAC) tip guard reduces the risk of fluid injection
injury
J Contractor Gun High pressure spray gun with gun safety latch
K RAC IV Switch T ip RAC switch tip atomizes fluid and removes clogs from spray tip without
removing tip from spray gun
L Pressure Drain V alve Relieves fluid pressure when open
M Pressure Control Controls motor to maintain fluid pressure. W orks with pressure
adjusting knob.
N Spray Gun Safety Latch Inhibits accidental triggering of spray gun
