Graco 234124 - Dimensional Drawings

308479 31

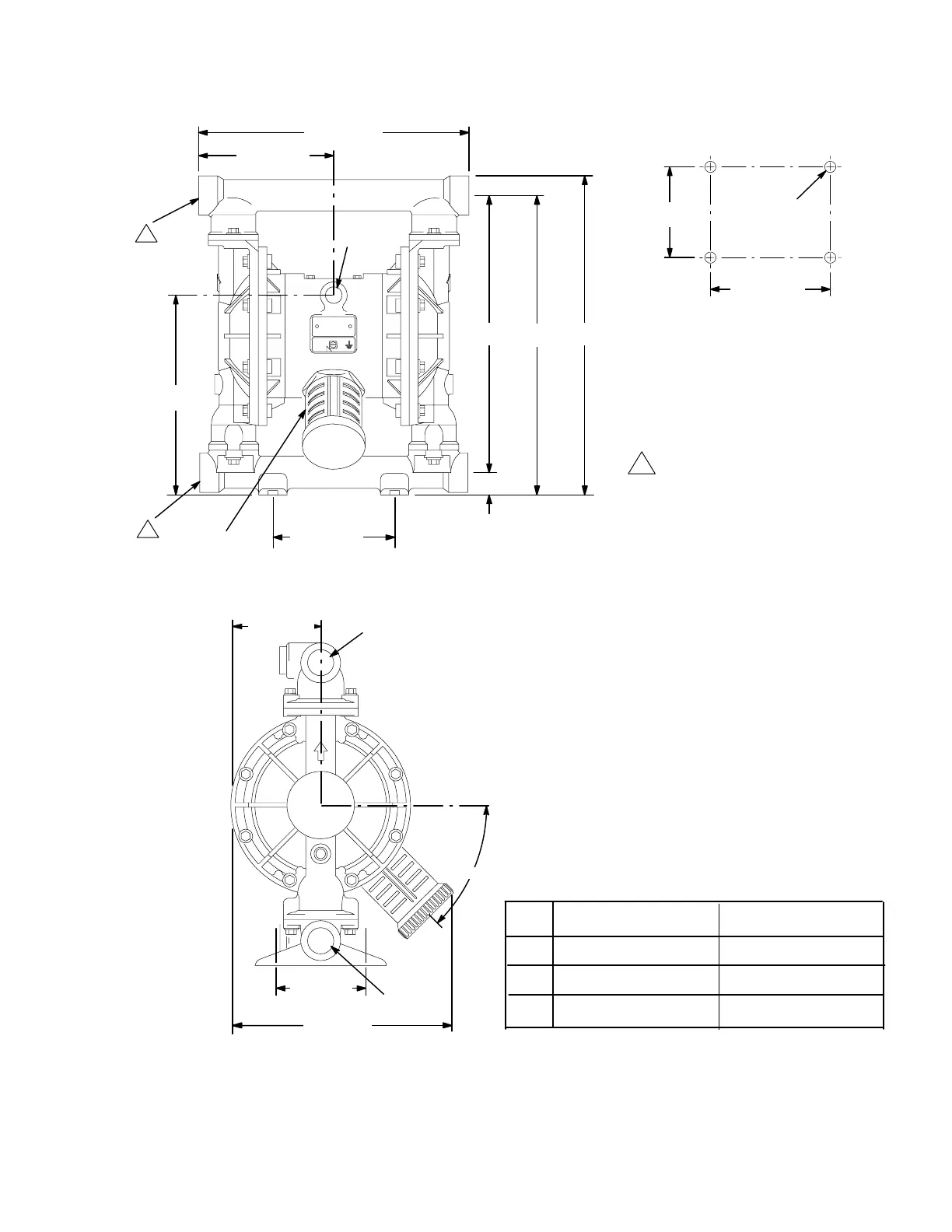

Dimensional Drawings
FRONT VIEW
12.0 in.
(305 mm)
1/2 npt(f)
Air Inlet
3/4 npt(f)
Air Exhaust
(muffler
included)
1 npt(f)
Optional
Fluid Inlet
5.5 in.
(139.5 mm)
1 npt(f)
Optional
Fluid Outlet
1
1
1.0 in.
(25.5 mm)
9.1 in.
(231.1 mm)
6.0 in.
(152 mm)
SIDE VIEW
1 npt(f)
Fluid Inlet
1 npt(f)
Fluid
Outlet
5.0 in.
(127 mm)
9.25 in.
(235 mm)
3.95 in.
(100 mm)
45°
PUMP MOUNTING
HOLE PATTERN
Four 0.5 in.
(12.5 mm)
diameter holes
5.0 in.
(127 mm)
5.5 in.
(139.5 mm)
7437A
1
On aluminum pumps only.
A
B
C
12.58 in. (319.5 mm)
13.58 in. (345.0 mm)
14.48 in. (367.8 mm)
12.31 in. (312.7 mm)
13.31 in. (338.1 mm)
14.21 in. (360.9 mm)
Dim.
Alum. Pumps
SST Pumps
A
B
C
