Maintenance
7. Attach the other end of the new hose to the
90-degree elbow.
8. Remove the C-clamp from the reel flange.
9. Pull the hose firmly enough to release the latch,
then slowly allow the hose to retract.
10. Position the hose stop so the hose extends far
enough for all operators to reach the dispensing
valve.

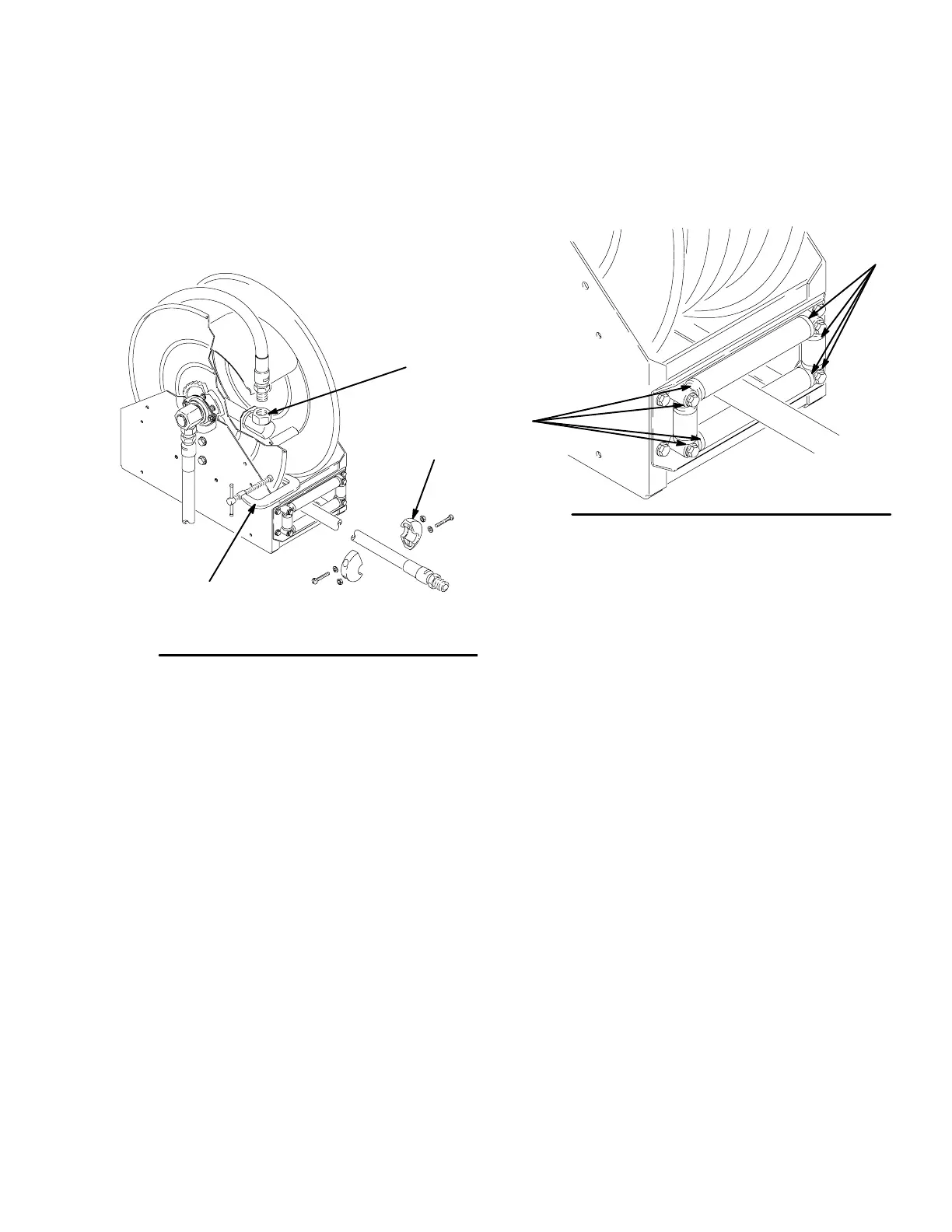

Fig. 7
39
05271
C-clamp
48
Oiling the Hose Rollers
Every six months, apply one or two drops of light
motor oil to lubricate the hose reel at point A. See
Fig. 8.
Fig. 8
05272
A
A
