16 308546
Service
Swivel
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 14.
1. Relieve the pressure.
2. Remove the retaining ring (35) and the swivel
connector (34) (see Fig. 9).
3. Remove the o-rings (36), backup rings (37), and
quad rings (38), and clean and inspect them for
wear or damage.
4. Lubricate the new rings, shaft, and bearing sur-
faces with high-quality grease.

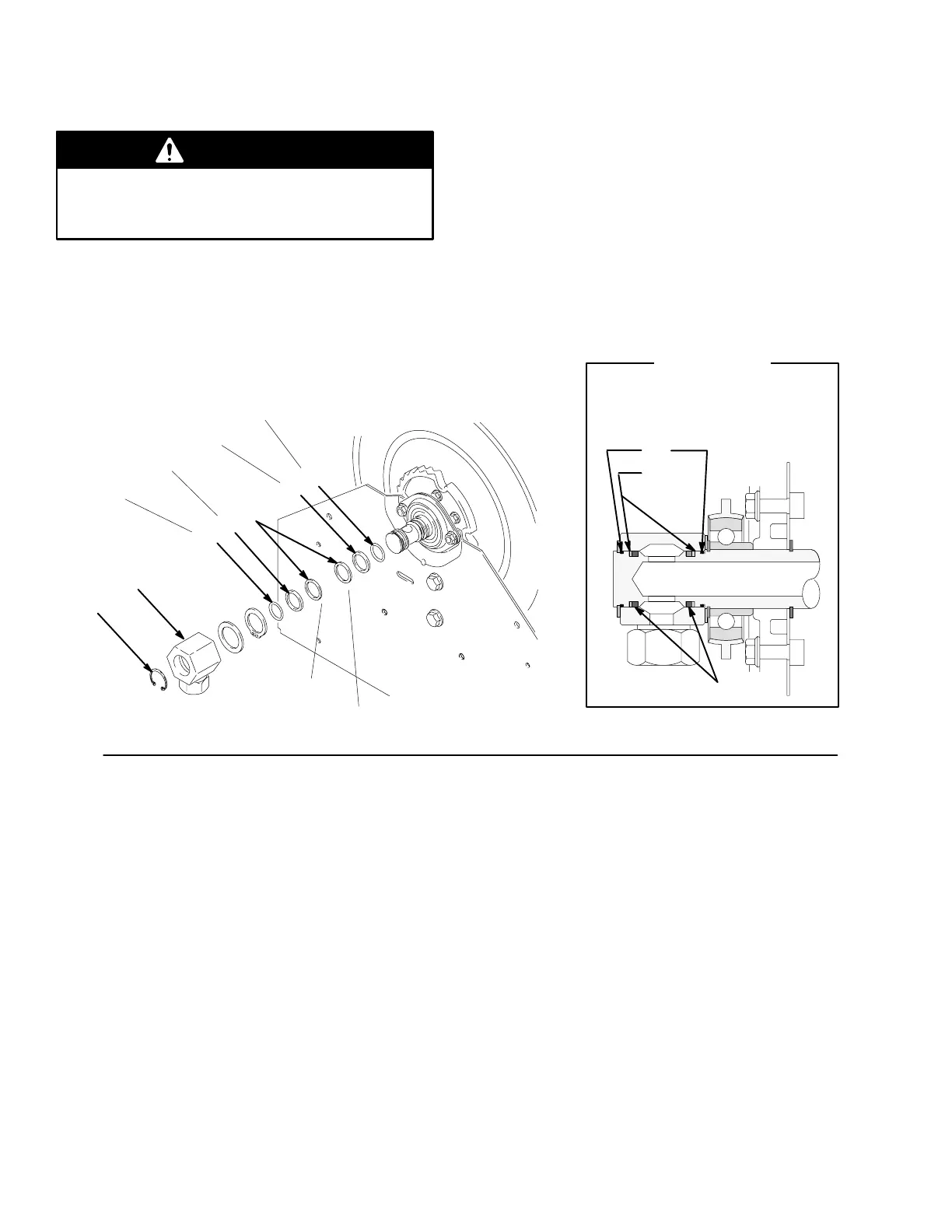

5. Install the parts as shown in Fig. 9.
Fig. 9
05274 05273
Packing Detail
35
34
36
36
37
37
38
38
36
37
Install 36, 37, and 38 in the
order shown at left.
first
second
third
fourth
fifth
sixth
