Graco 237728 - Dimensions

22 308546

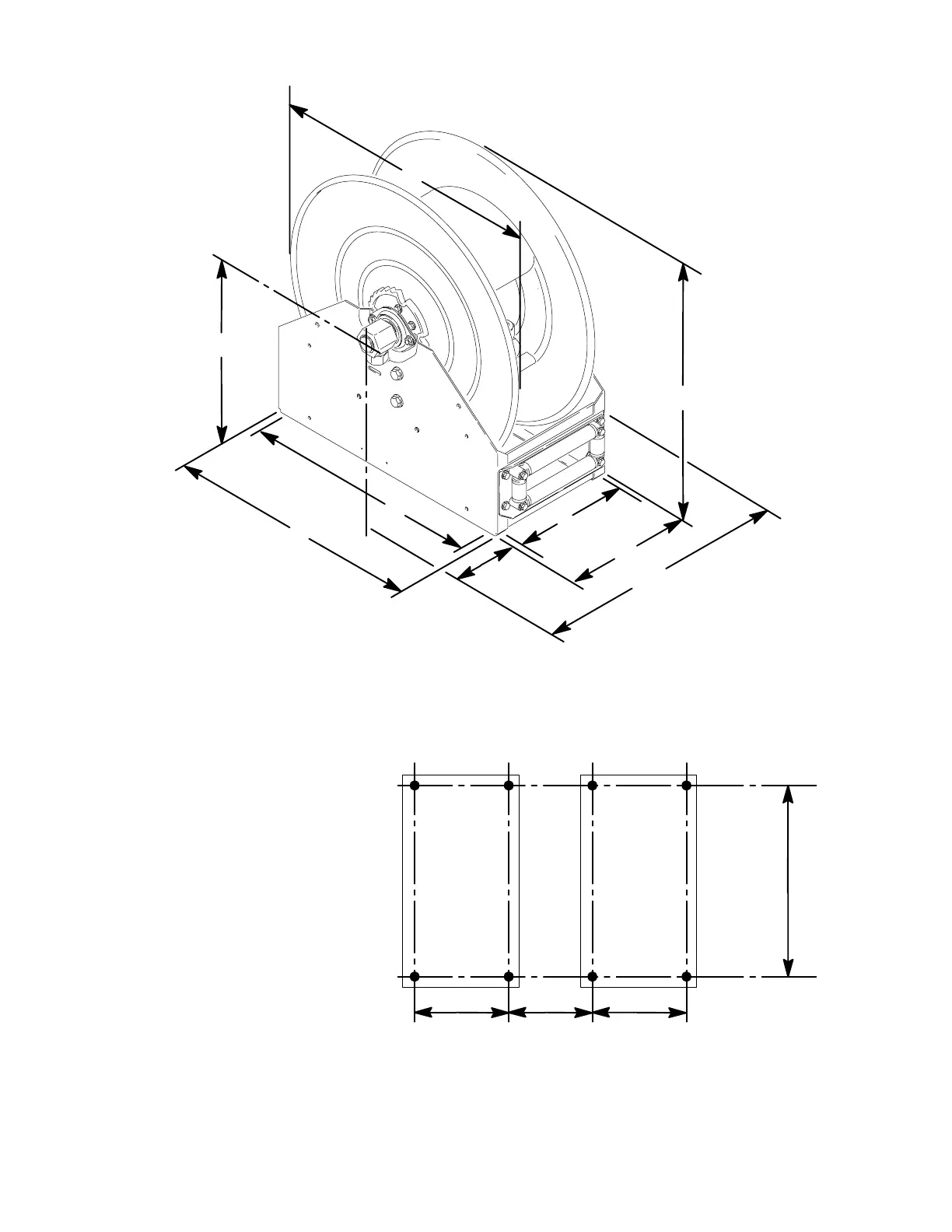

Dimensions
A 10.45 in. (265 mm) mounting holes, center to center
B 22.25 in. (565 mm) mounting holes, center to center
C 11.83 in. (300 mm) base width
D 24.00 in. (609 mm) base length
E 26.25 in. (667 mm) total height
F 25.00 in. (635 mm) reel diameter
G 13.60 in. (345 mm) swivel height
H 15.80 in. (401 mm) total width, swivel to spring canister
J 2.20 in. (56 mm) swivel to base
05278
E
A
C
B
D
F
G
H
Mounting Hole Pattern for 1-in. (25.4 mm)
Clearance Between Hose Reels
Reel #1 Reel #2 22.25 i
n
(565 m
m
10.45 in.
(265 mm)
10.45 in.
(265 mm)
6.35 in.
(161 mm)
J
