Graco 241705 - Parts Identification

30849114
Parts
Part No. 241705, Series B

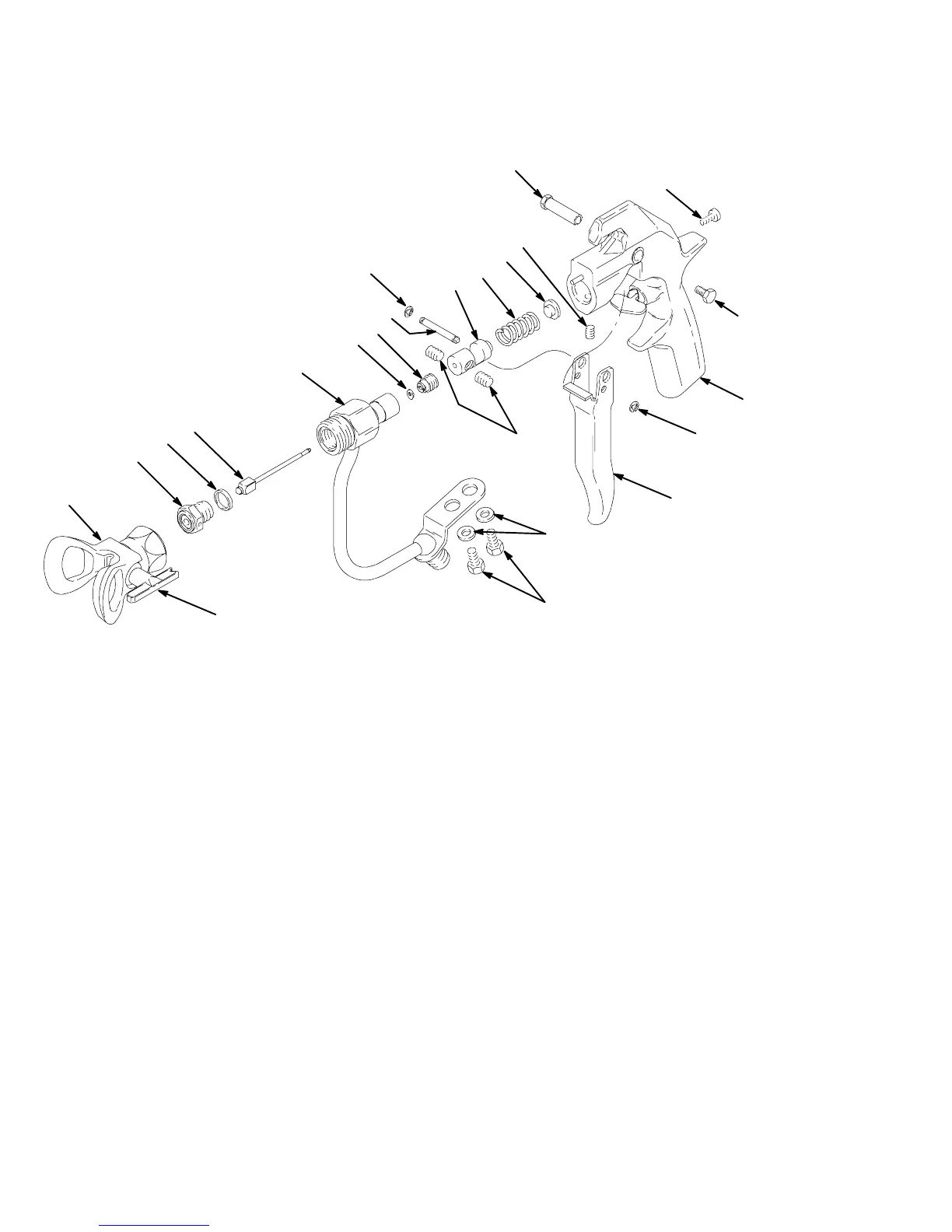

Texture Airless Spray Gu n
04730
28
21
29
1
27
27
18
16
17
19
30
2a
2b
2c
2e
2d
22
24
25
8
15
20
36
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 237680 TEXTURE GUN BODY 1
2 237260 NEEDLE AND SEAT KIT
(parts not sold separately) 1
2a VALVE SEAT 1
2b GASKET 1
2c NEEDLE 1
2d SEAL RETAINER 1
2e SEAL 1
8 LTX531
SwitchTip, size 531 (Model 241705) 1
HDA531 Switch Tip, size 531 (Model 289605) 1
15 102207 SETSCREW
,1/4--20 1
16 189960 SPRING GUIDE 1
17 112729 SETSCREW,
soc hd 2
18 189958 TRIGGER PIN 1
19 102924 SPRING 1
20 189990 SPRING ADJUSTER 1
21 110637 ADJUSTING SCREW 1
22 237694 FLUID HOUSING 1
24 112774 SCREW,
1/4--20 2
25 189974 GUN TRIGGER 1
27 112410 E-CLIP 2
28 187965 PIVOT PIN 1
29 203953 SCREW,
hex washer hd, 10--24 1
30 246215 KIT, TIP GUARD 1
34Y 187346 WARNING SHEET
not shown 1
35Y 222385 WARNING CARD
not shown 1
36 110755 W ASHER, flat 2
Y Replacement Danger and Warning labels, tags and
cards are available at no cost.
