Motor Control Diagnostic Codes
309574L 15

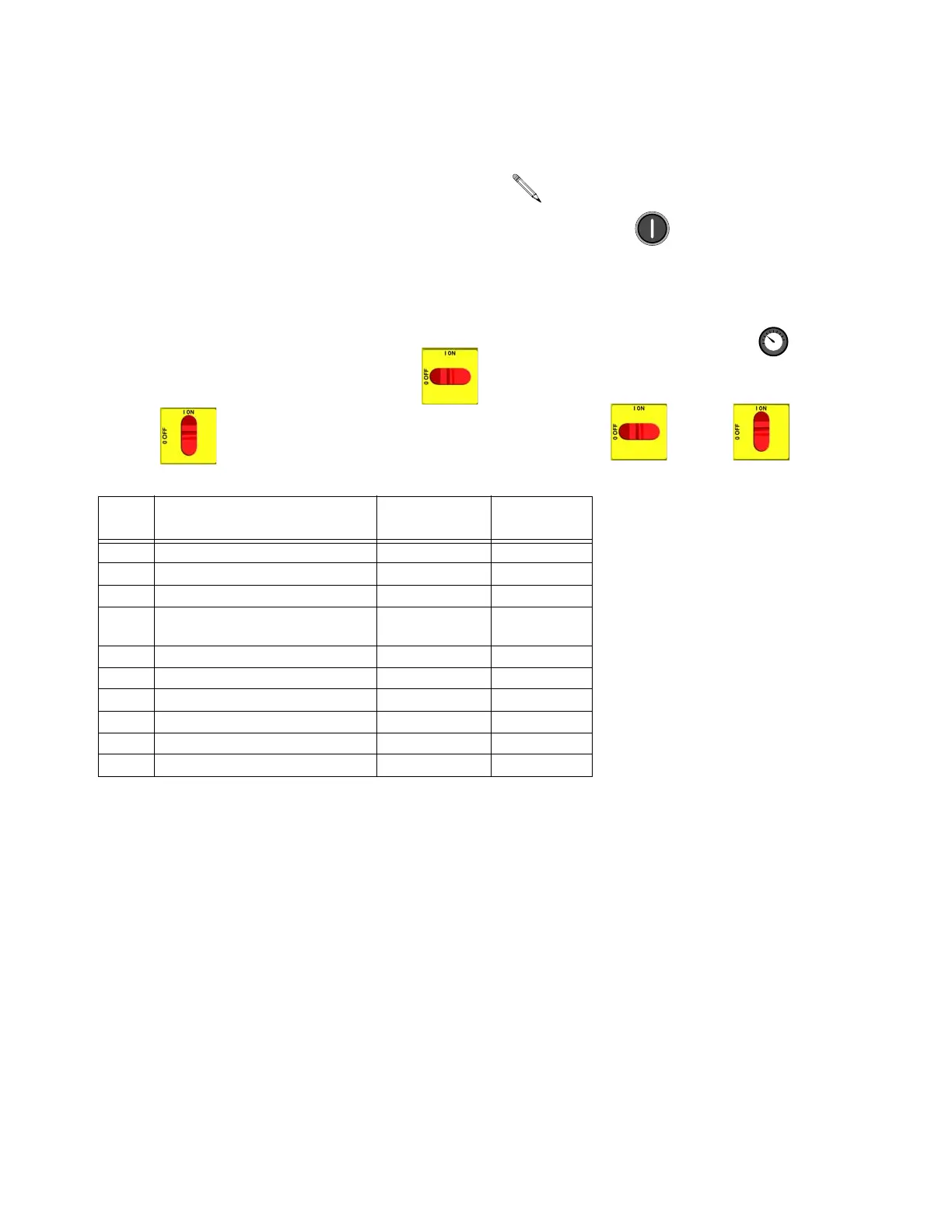

Motor Control Diagnostic Codes
Motor control diagnostic codes E21 through E29 appear
on pressure display.
There are two types of motor control codes: alarms and
warnings. Alarms take priority over warnings.
Alarms
Alarms turn off Reactor. Turn main power OFF
then ON to clear.
Warnings
Reactor will continue to run. Press to clear. A
warning will not recur for a predetermined amount of
time (varies for different warnings), or until main power
is turned OFF then ON .
Alarms can also be cleared, except for code 23,
by pressing .
Code
No.
Code Name Alarm (A) or
Warning (W)
Corrective
Action page
21 No transducer (component A) A 16
22 No transducer (component B) A 16
23 High pressure A 16
24 Pressure imbalance A/W (to select,
see page 34)
16
25 High line voltage A 18
26 Low line voltage A 18
27 High motor temperature A 18
28 High current A 18
29 Brush wear W 19
99 Communication Error 2

Graco 246024 Specifications

General

Model	246024
Type	Airless Paint Sprayer
Maximum Pressure	3000 PSI
Flow Rate	0.24 GPM
Hose Length	25 ft
Power Source	Electric
Tip Size	0.015 inches
Motor	1/2 HP
