Graco 24G576 - Related Oil Pump Kits

Parts
18 3A1334P
Related Oil Pump Kits

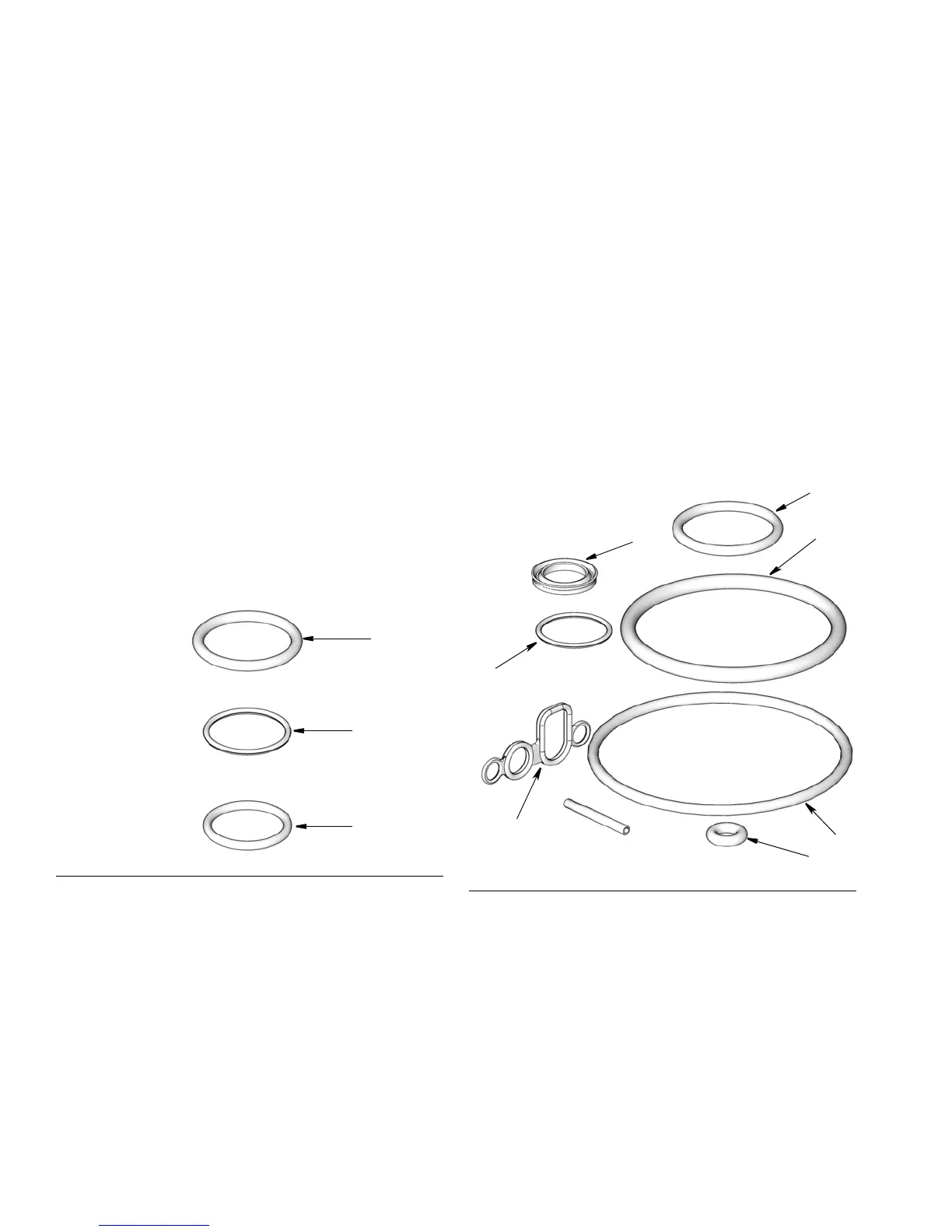

O-Ring Replacement Kit - 24K293 for 3:1
pumps; 24H855 for 5:1 pumps (F
IG. 11)
NOTE: When replacing seals in the pump lower also
service the throat and piston seals. Order repair kit
24H853. Instructions related to this kit are included in
instruction manual 3A1494 (included with the kit).
Throat and Piston Seal Replacement Kit -
24H853 (FIG. 12)
NOTE: When servicing the throat and piston seals, it is
recommended to also replace seals in the pump lower.
Order repair kit: 24K293 for 3:1 pumps or 24H855 for
5:1 pumps. Instructions related to this kits are included
in instruction manual 3A1494 (included with the kit).
Kit No. Description Qty
24H611
KIT, repair, intake valve, npt,
includes 11, 15, 28, 35, 51
1
24J430
KIT, repair, intake valve, bspp,
includes 11, 15, 28, 35, 51
1
24J431
KIT, repair, intake valve, bspt,
includes 11, 15, 28, 35, 51
1
Ref. Description Qty.
13 O-RING 1
14 O-RING 1
15 O-RING 1
F
IG. 11
13
14
15
Ref. Part No. Description Qty.
5 O-RING, air piston 1
6O-RING 1
7O-RING 1
8 O-RING, wiper 1
9 SEAL, u-cup 1
17 O-RING 3
25 15R001 GASKET, cover, small 2
55 O-RING (not shown) 1
F
IG. 12
7
6
17
5
25
8
9
