Graco 24G576 - Typical Installation

Warnings
6 3A1334P
Typical Installation
The typical installation shown in FIG. 1 is only an installation guide. It is not an actual system design. Contact your
Graco Distributor for assistance in designing a system to suit your needs.
Stationary Mountings
Key (FIG. 1)
A Fluid outlet line (flexible connection required)
BPump
C Ground wire
D Pump runaway valve
E Air lubricator
F Bleed-type master air valve (required)
• NPT - Part No. 110223
• BSP - Part No. 125272
G Air regulator (self-relieving regulator required)
• NPT - Part No. 24H420
• BSP - Part No. 24H419
HAir filter
J Main air line
K Bung adapter - Part No. 24F918
L Fluid inlet line (flexible connection required)
M Air inlet line (flexible connection required)
N Wall mount bracket - Part No. 24F910

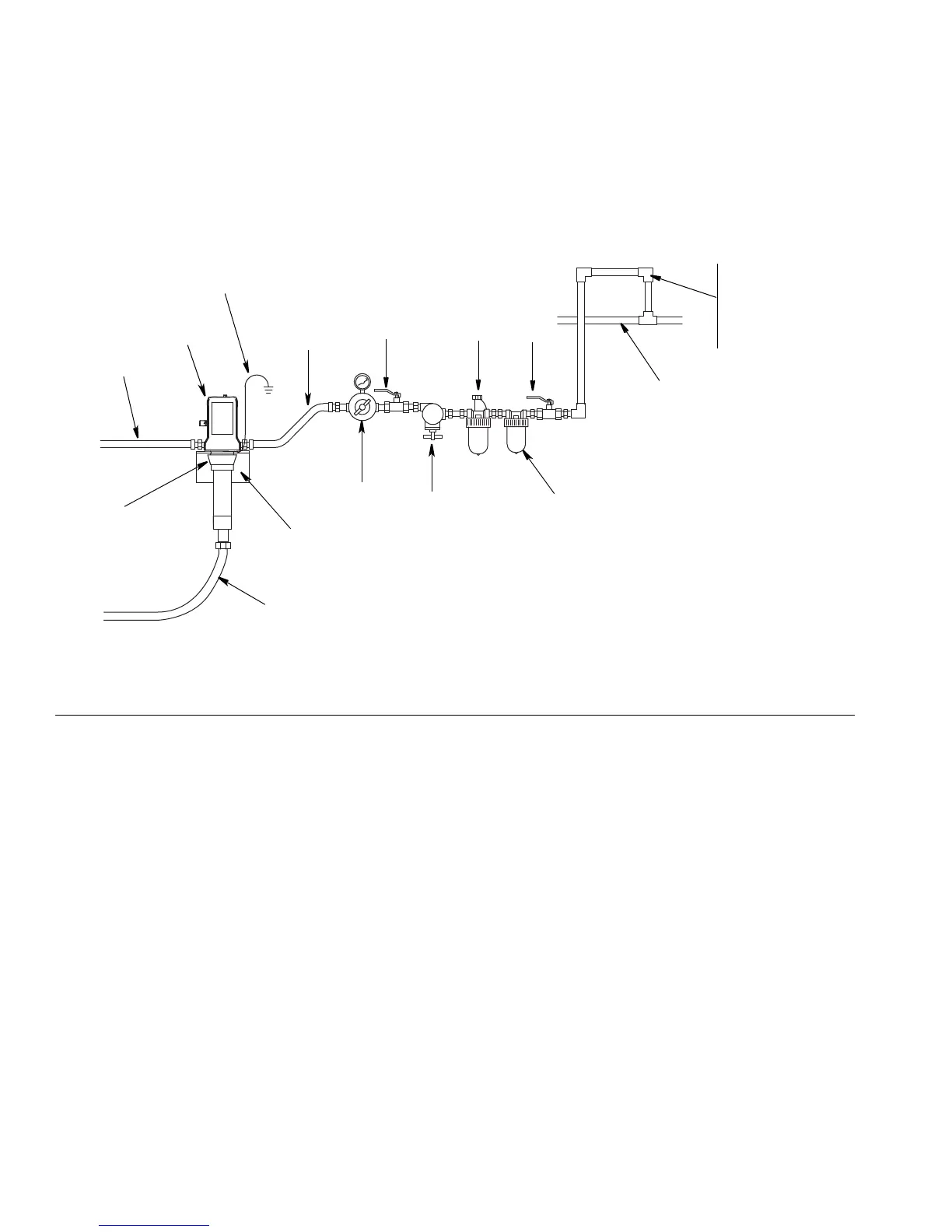

FIG. 1
A
B
D
C
E
F
ti16120
H
G
J
K
M
L
N
F
Recommended
air line
configuration
to reduce
moisture in pump
