Graco 24G576 - Related Grease Pump Kits

Parts
3A1334P 19

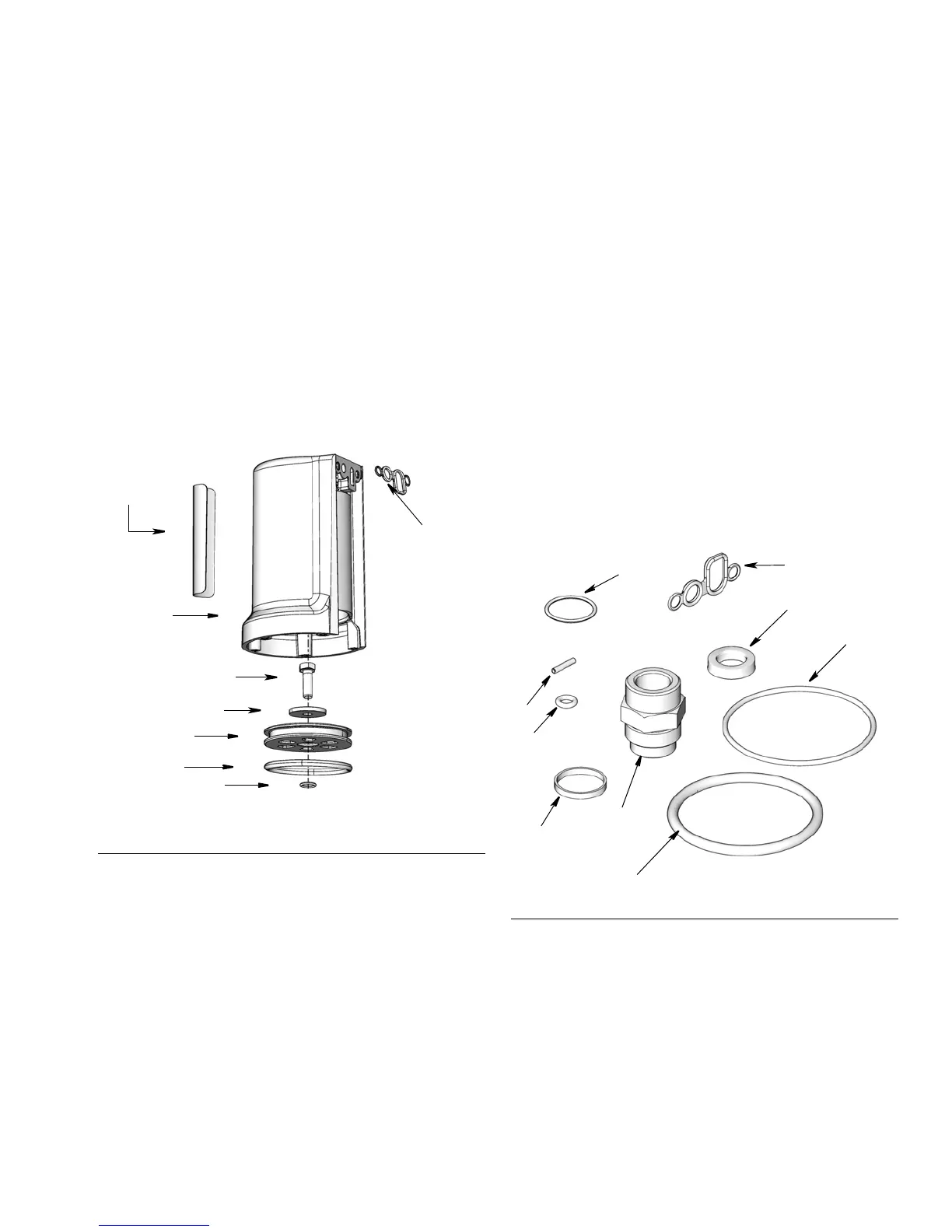

Air Piston Replacement Kit - 24U230 (FIG.
13)
NOTE: Instructions related to this kit are included in
instruction manual 3A1494 (included with the kit).
Related Grease Pump
Kits
Throat and Piston Seal Replacement Kit -
24H854 (F
IG. 14)
Instructions related to this kit are included in instruction
manual 3A1495 (included with the kit).
Ref. Part No. Description Qty.
5O-RING 1
18 BOLT 1
19 WASHER 1
21 AIR PISTON 1
25 15R001 GASKET, cover, small 2
27 AIR CYLINDER 1
55 O-RING 1
101 LABEL, identification 1
102 LABEL, overlay 1
F
IG. 13
25
101/102
27
18
19
21
5
55
Ref. Description Qty.
5 O-RING, air piston 1
6O-RING 1
7O-RING 1
8 PIN, slotted, straight 3
11 SEAL, u-cup 1
12 O-RING 3
18 GASKET, cover, small 2
30 GASKET 1
37 NUT, retainer 1
F
IG. 14
7
6
18
5
12
8
11
30
37
