Parts
20 3A1334P
O-Ring and Seal Replacement Kit - 24H856
(FIG. 15)
Instructions related to this kit are included in instruction
manual 3A1495 (included with the kit).
Air Piston Replacement Kit - 24U984 (FIG.
16)
NOTE:. Instructions related to this kit are included in
instruction manual 3A1494 (included with the kit).
Ref. Description Qty.
8 PIN, slotted, straight 3
10 O-RING 1
24 SEAL, piston 1
28 SEAL, intake 1
30 GASKET 2

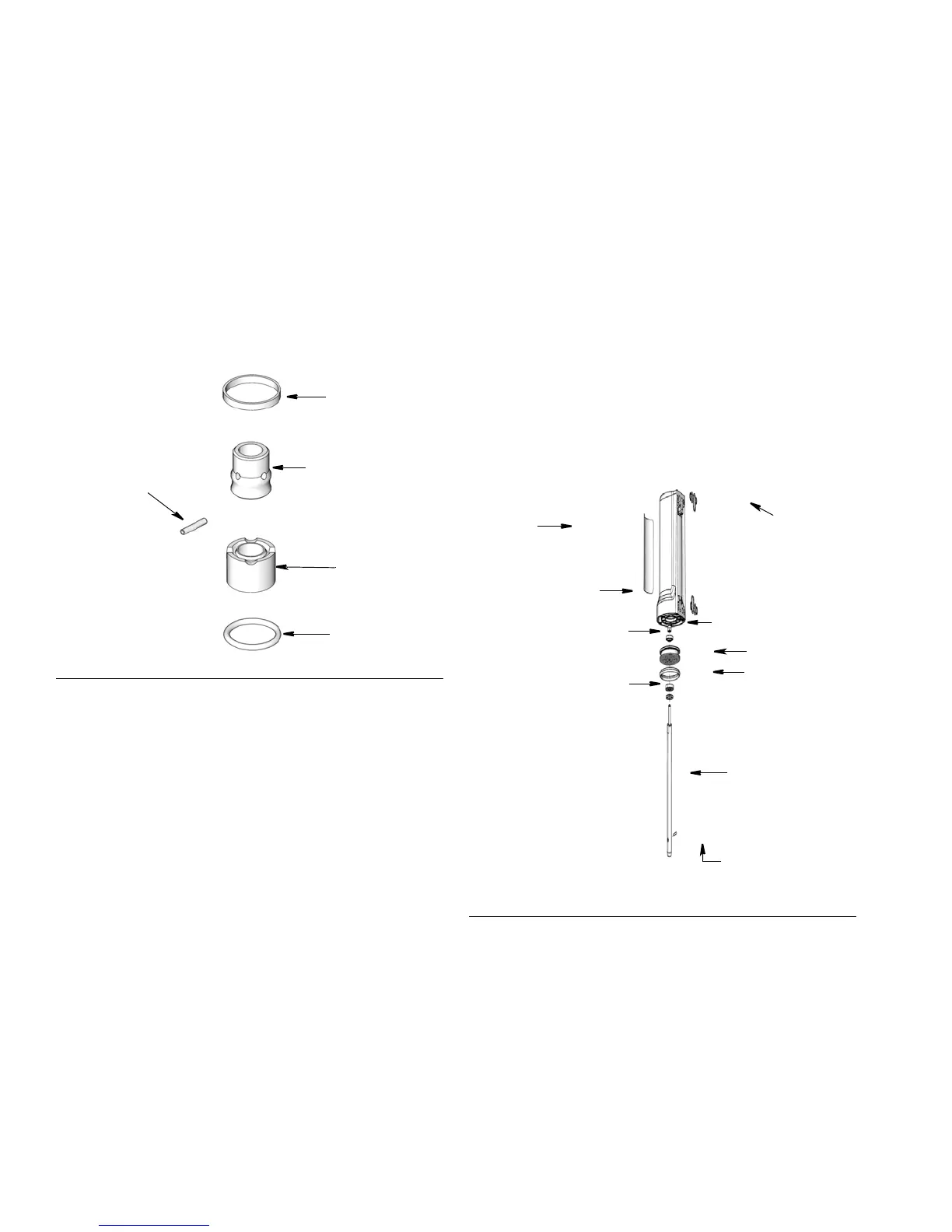

F
IG. 15
28
10
24
30
8
Ref. Description Qty.
5O-RING 1
8 PIN, straight, slotted, 2.5 x 16 1
13 GASKET, 32 OD 1
15 PISTON, air, plastic 1
18 GASKET, cover small 2
19 NUT, hex 1
21 CYLINDER, air, machined 1
25 ROD, displacement, 50:1 1
38 WASHER, 32 OD 1
101 LABEL, identification 1
102 OVERLAY, label 1
F
IG. 16
101/102
18
21
19
13
15
5
38
25
8
