Technical Data
3A1334P 27

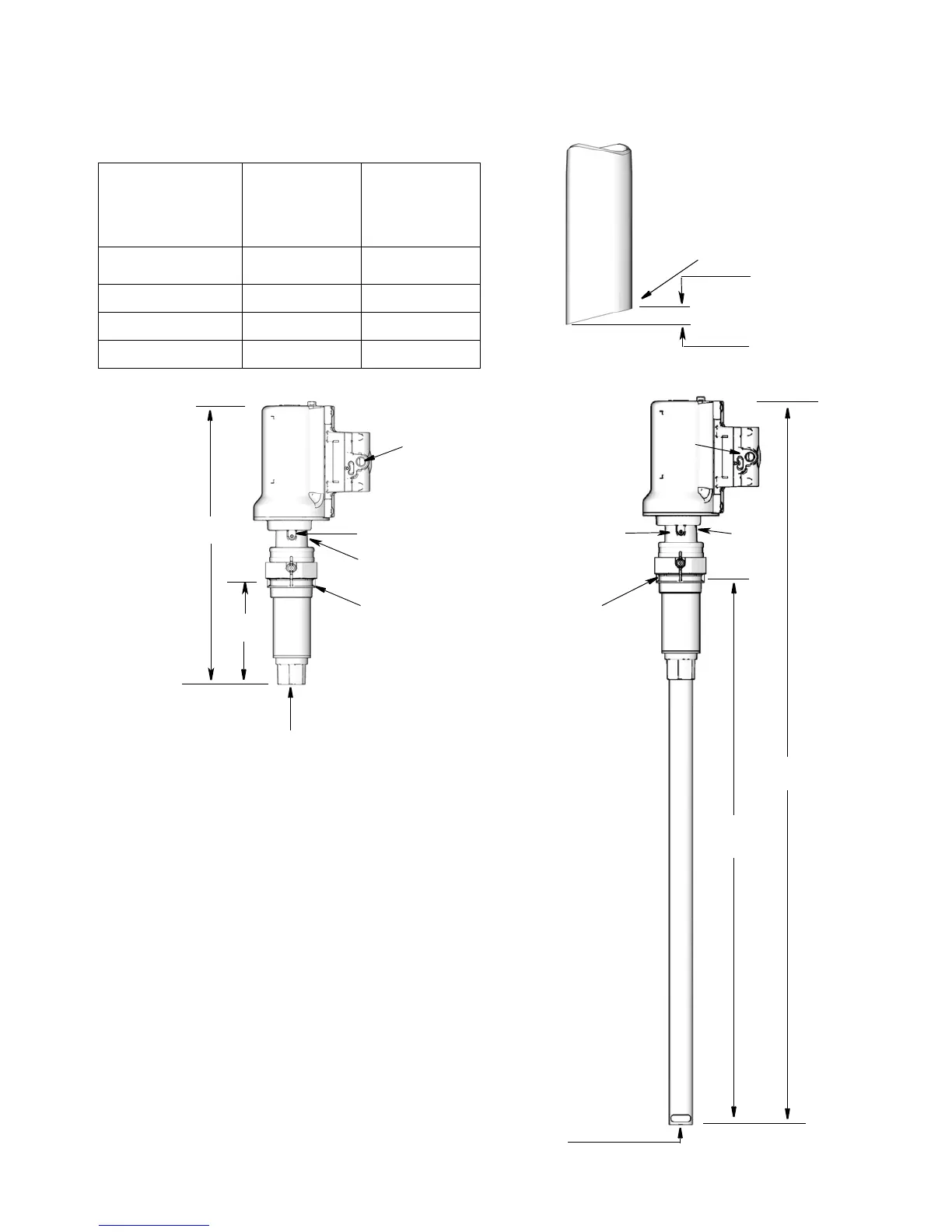

Dimensions
Model
L
inches (mm)
O
(Overall Length)
inches (mm)
Universal Pump
Only
6.9 (175) 16 (406)
Multi* 42.4 (1076) 51.5 (1307)
Drum 35.7 (907) 44.8 (1138)
Tote 42.8 (1087) 51.9 (1318)
*Multi down tube
is angle cut to the
desired length as
required
3/8” (10 mm)
minimum
L
L
Universal Pump
Multi/Drum/Tote
O
O
a
a = 1/4 inch air inlet
b = 1 inch fluid inlet
c = 2 inch npt bung adapter
d = ground screw
a
d
d
c
c
b
b
e
e
e = 1/2 inch fluid outlet - opposite of d
