Graco 254986 Repair Manual

RotoFlex
™
II Pump
8
RotoFlex
™
II Pump

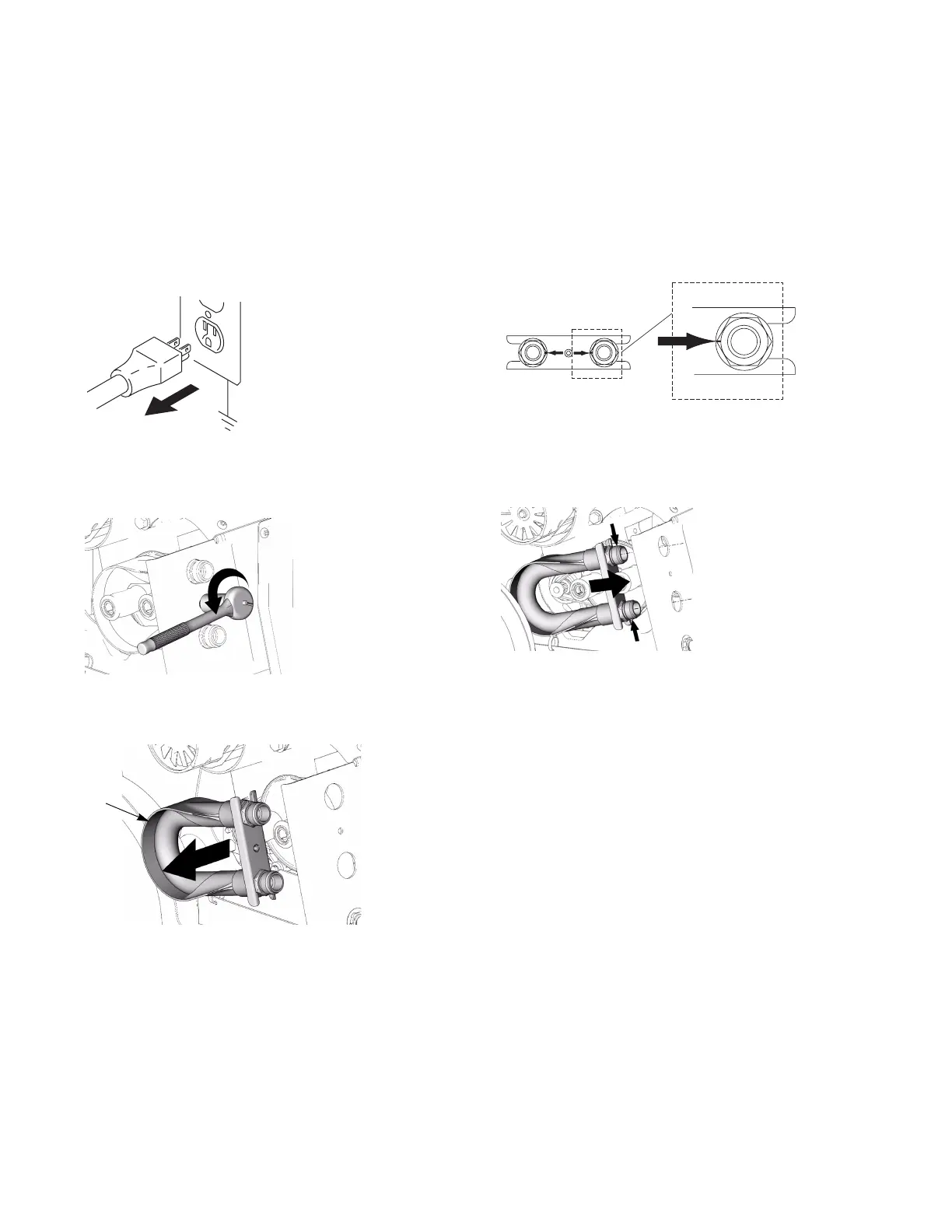

Disassemble
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Remove Shroud, page 7.
4. Loosen and remove screw (28) on hose bracket.
5. Grab pump hose (16) from side of unit and remove
pump hose by hand.
Reassemble
1. Bend hose (16) so colored dots on hose fittings face
each other.
2. Slide new pump hose (16) over rollers. Move pump
rollers by hand until or flip power switch to rotate
rollers until they are positioned correctly with pump
hose.
3. Feed pump fittings through front of sprayer.
4. Replace and tighten screw (28) on hose bracket.
5. Replace Shroud, page 7.
6. To break in new pump, add 1 cup of water to pump
and run for 3 minutes.
ti2810b
ti9249a
16
ti9248a
ti3084a
ti9245a
