Graco 254986 Repair Manual

Shroud Removal
7
Shroud Removal

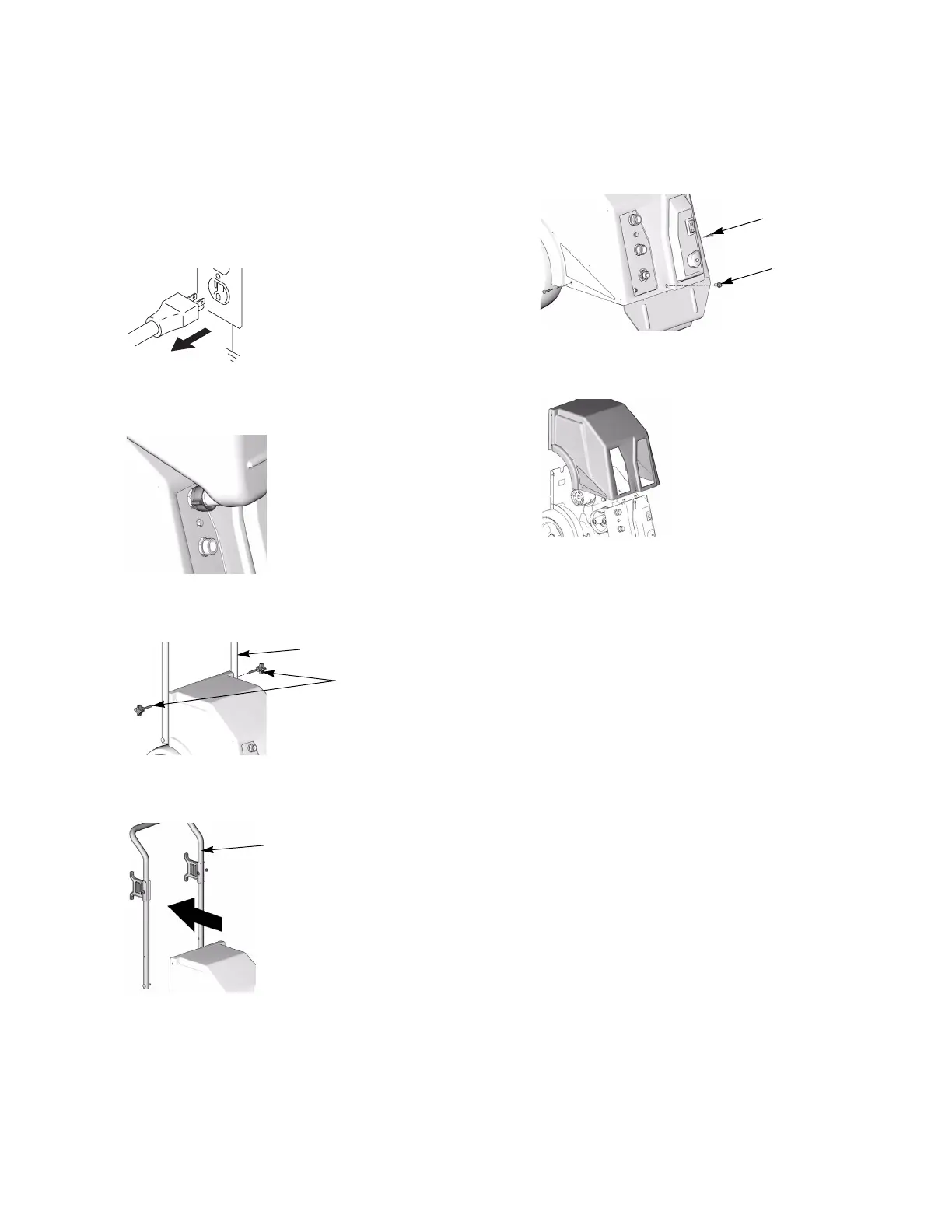

Disassembly
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Loosen bottom hopper fitting by hand and pull
hopper up and off from handle.
4. Loosen and remove 2 knobs (14) on sprayer handle
(12).
5. Spread sprayer handle (12) apart and remove from
sprayer.
6. Loosen screws (30) and (43) on shroud.
7. Lift bottom front of shroud and pull up and over front
control to remove.
Reassembly
1. Replace shroud, pull over front controls and push
down until shroud snaps into place.
2. Replace and tighten screws (30) and (43).
3. Spread sprayer handle apart and slide handle down
into place.
4. Tighten 2 knobs (14) on sprayer handle (12).
5. Replace hopper and tighten hopper fitting by hand
until snug.
ti2810b
ti8702a
ti9247a
14
12
ti9246a
12
ti9251a
30
43
ti9250a
