Installation
6 312865H
Installation

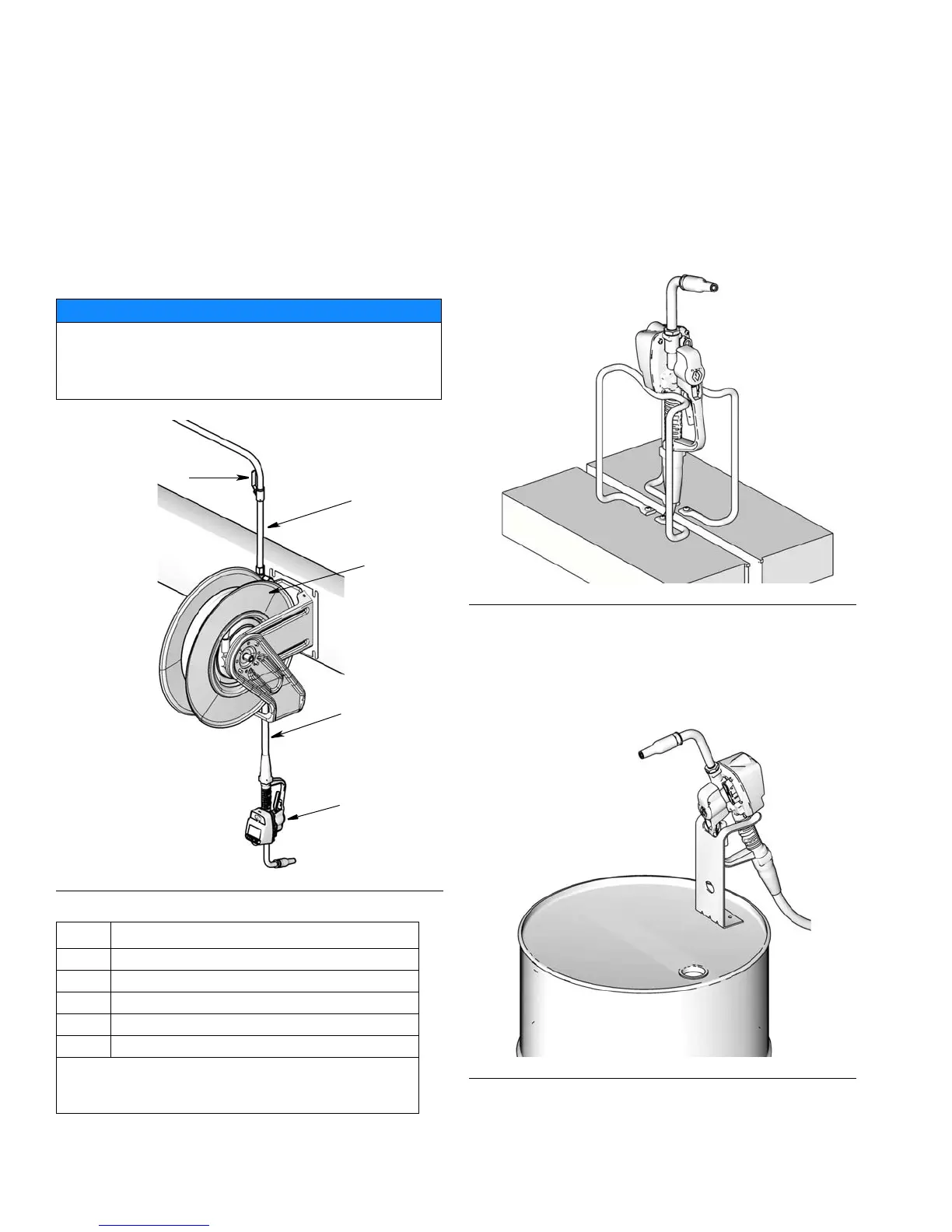

Typical Installations (FIG. 1)
The typical installation shown in FIG. 1 is only a guide. It
is not a complete system design. Contact your Graco
distributor for assistance in designing a system to suit
your needs.
Mounting Bracket (FIG. 2)
Mounting Bracket Kit 249440 is available for resting the
dispense valve on a console.
Drum Mount Bracket (FIG. 3)
Mounting Bracket 15B750 is available for resting the
dispense valve on a drum.
NOTICE
The dispense valve is not designed for in-line
installation. Do not install with a shutoff valve on the
outlet side of the meter. Such installation could result in
damage to the meter housing cover.
F
IG. 1
ITEM DESCRIPTION
A Electronic metered dispense valve
B Fluid shut-off valve
CHose
D Hose reel fluid inlet hose
E Hose reel
A Thermal Relief Kit (not shown) is required. The kit
required will vary by pump selected. See Parts, page 40 for
a list of available kits.
B
D
E
C
A
ti11010a
FIG. 2
F
IG. 3
ti11822
ti11823
