Installation–Mounting Options
All Mountings
NOTE: Always use large flat washers with the bolts
you use to mount the hose reel pedestal to any
surface.
WARNING
Be sure the mounting surface is strong enough to
support the reel, the weight of the lubricants, and
the stress caused by hard pulls on the service
hoses. See page 21 for the dry weights of the
various hose reel assemblies.
NOTE: All accessories mentioned are shown on
page 20.
1. Select the reel mounting location.
a. For high ceilings, suspend a suitable support
structure for the reels, so the hoses will be
long enough to reach your service area.
b. A reel mounted in a one-lift service bay should
be at least 6 ft (1.9 m) from the center line of
the lift. See Fig. 3.
c. In a two-lift bay, mount the reel between the
lifts and an equal distance from each lift. Oil
reels should be mounted about 5 ft (1.5 m)
from the center of the lift, toward the front of
the lift rails. See Fig. 3.
2. If you are installing permanent supply lines, drill
1.5 in. (38 mm) diameter holes through the ceiling
on the inlet side of the reels.

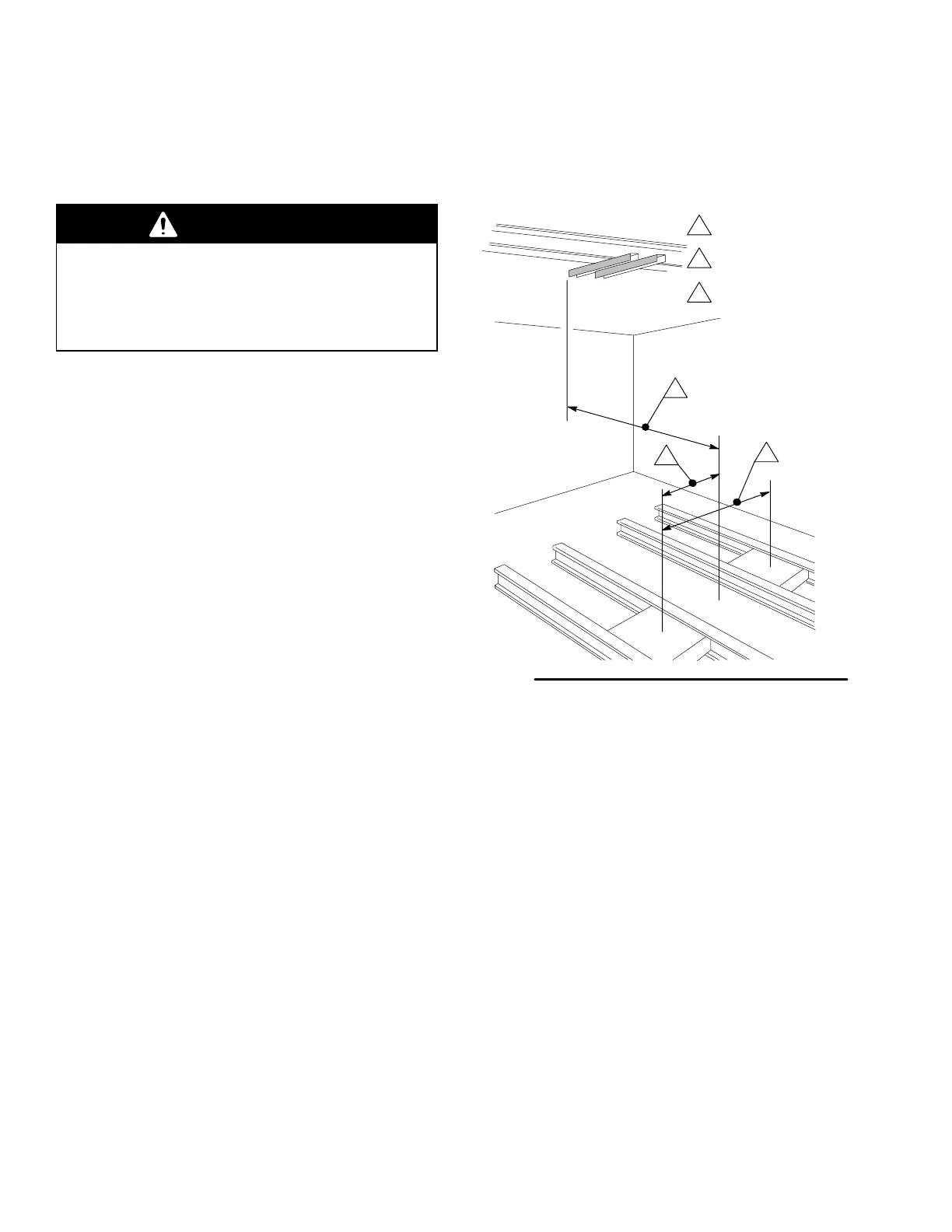

Fig. 3
5 ft (1.5 m)
for motor oil
1639
1
3
2
1
2
6 ft (1.9 m) minimum
for 1 lift
Center between
two lifts
3
