Installation–Roller Support Arm
Series 700 hose reels are shipped with the hose
rollers bolted near the reel mounting base, which is the
proper position for truck-mounted hose reels. To
mount the reel overhead, use the accessory roller
support arm kit (237944).
To install the accessory roller support arm, follow these
steps (see Fig 2):
1. Clamp the hose reel to a flat surface.
2. Unwrap the hose so that it extends 3 ft (0.9 m)
beyond the roller plate (28) while keeping the reel
latched.
NOTE: Do not pull the hose out by rotating the
reel. Spring tension must be at a minimum.
WARNING
Never allow the reel to spin freely. Doing so
causes the hose to spin out of control, which could
cause serious injury if you are hit by the hose.
3. Remove the roller plate from the hose reel base
(14), and install the roller support arms (49).
4. Reattach the roller plate to the roller support arms,
as shown in Fig. 2.
5. Reroute the hose through the hose rollers, as
shown in Fig. 2.
6. Install the hose stop (48) and dispensing valve (not
shown).
7. Unlatch the reel, and allow the hose to retract.
See Mounting Options, beginning on page 10, for
additional installation procedures.
Overhead Reel Installation
To ensure retraction when the hose is at maximum
extension, rotate ratchet (43) counter-clockwise one
screw hole (60_).

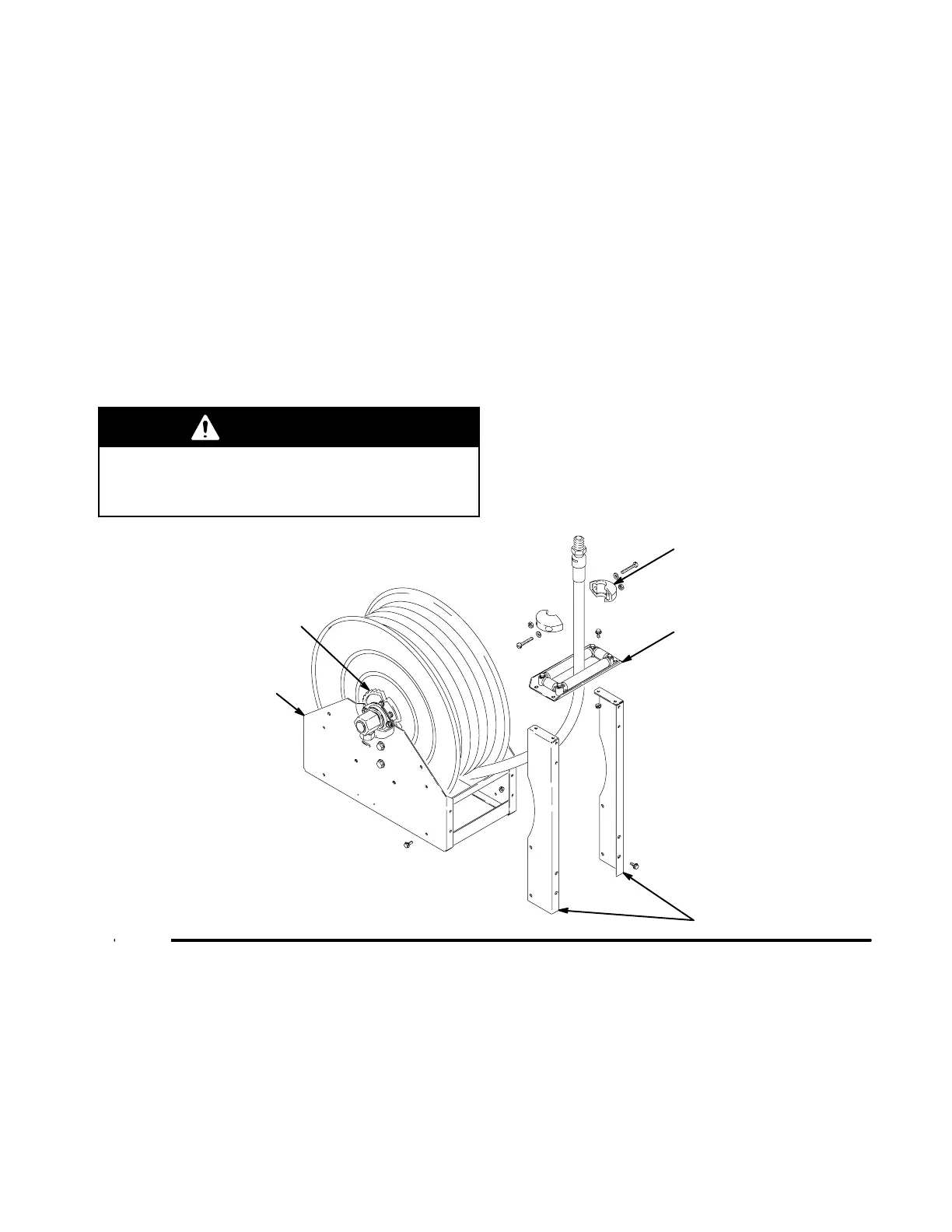

Fig. 2
14
28
49
48
05267
43
