Installation–Mounting Options
Overhead Mounting to an I-Beam
NOTE: You should have the hose installed on the reel
before you mount the reel overhead. See Installing a
Hose on page 12 if you do not already have the hose
installed on the reel.
1. Line up the four holes on the hose reel mounting
base with the holes near the ends of the mount-
ing brackets (A) (see Fig. 4), and securely bolt the
hose reel to the mounting brackets.
2. Position and securely tighten the adjustable
clamps (C) of the mounting brackets on the
flanges of the I-beam (B).
WARNING
To reduce the risk of injury when mounting a
hose reel overhead, always use a lift truck.
Position the hose reel so the mounting brackets
are facing up. Using the lift truck, raise the hose
reel as close to the I-beam as possible. Fasten
the hose reel to the I-beam, and be sure it is
secure before lowering the lift truck.
3. Connect the supply line to the inlet of the reel.
4. Adjust the spring tension of the reel. See Adjust-
ing Spring Tension on page 13.

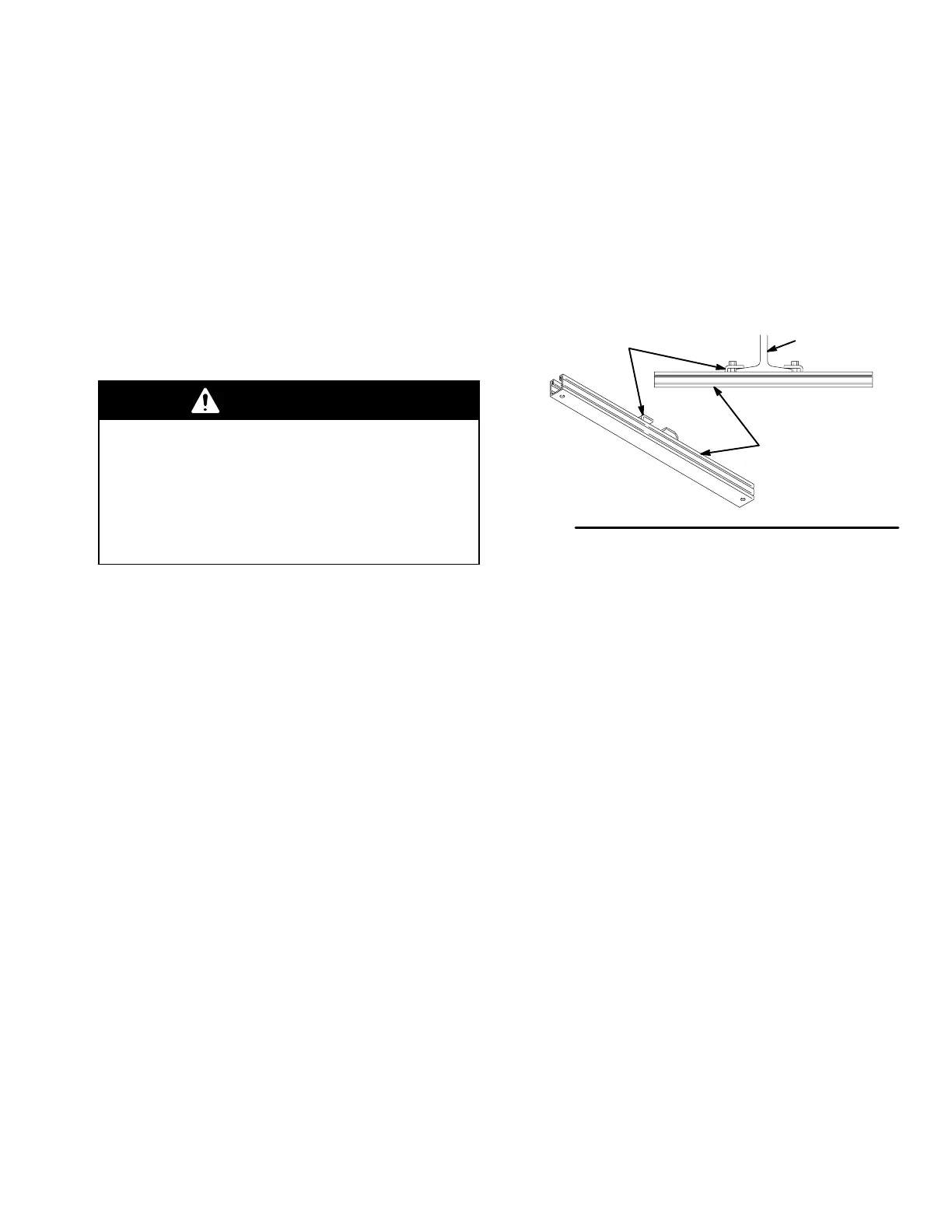

Fig. 4
C
A
B
05268
