6-Inch Dispenser Assembly - Parts List
3A5205A 7

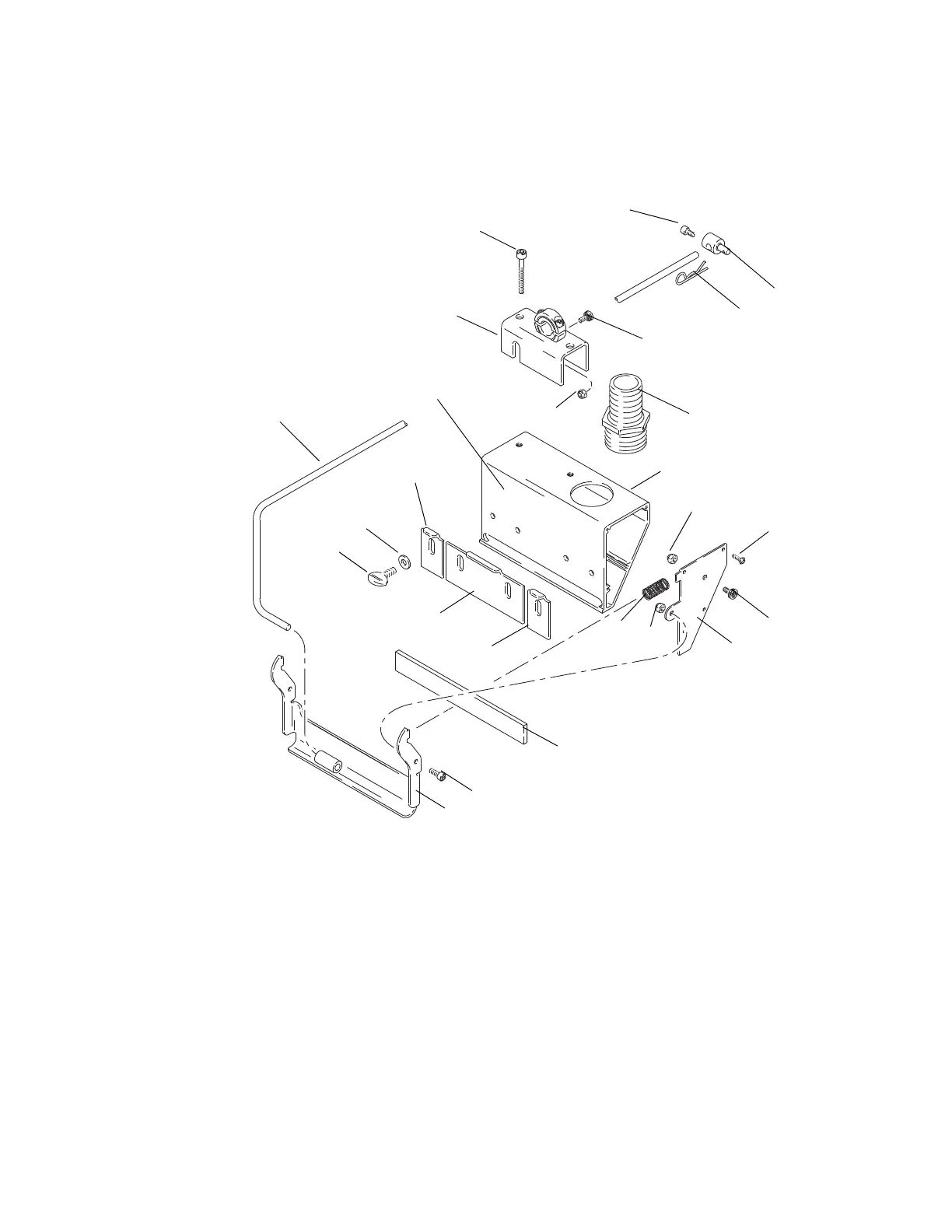

6-Inch Dispenser Assembly - Parts List
ti6593a
9
12
5
20
18
17
21
1
3
2
4
19
12
13
14
15
19
10
12
6
20
16
8
11
7
Ref. Part Description Qty.
277067 DISPENSER ASSY KIT, beads (see
item 8, Bead Dispenser Kit Parts List)
1 198379 . ROD, connecting 1
2 114814 . PIN, bridge 1
3 15A264 . LINK, mounting, adjustable 1
4 198058 . SCREW, cap, schd, 10-24 x 3/8 1
5 15F363 . HOUSING, dispenser, 6 in. 1
6 117155 . SPRING, compression 2
7 15F357 . DOOR, dispenser, 6 in. 1
8 15F366 . PAD, foam, 6 in. 1
9 117576 . SCREW, machine, hex wash hd 8
10 198376 . CAP, end, bead dispenser 2
11 102598 . SCREW, cap, sch 2
12 115483 . NUT, lock 5
13 116998 . FITTING, hose, barb 1
14 101885 . SCREW, cap, sch 2
15 245679 . BLOCK, mounting 2
16 198380 . PLATE, slide 1
17 100085 . SCREW, thumb 4
18 100086 . WASHER 4
19 117275 . STUD, button, snap 3
20 15F367 . PLATE, slide 2
21 166362 . LABEL, identification 1
Ref. Part Description Qty.
