Graco Airlessco 3350 - Page 6

Bead Dispenser Kit - Parts List
6 3A5205A

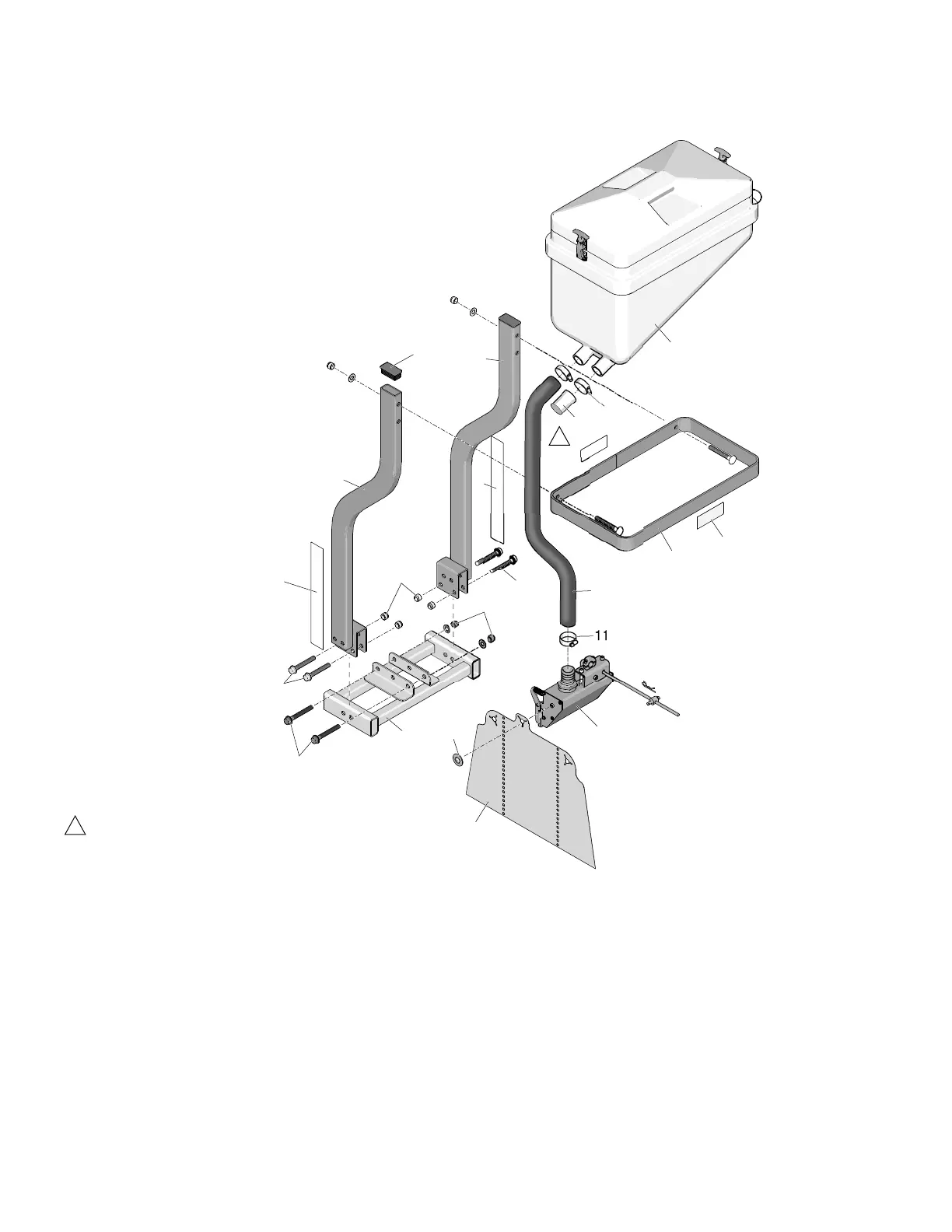

Bead Dispenser Kit - Parts List
1
5
3
2
11
13
7
6
14
12
11
9
10
9
21
22
20
8
23
24
5
ti31503a
Remove cap (13) and install second hose (12)
and clamp (11) for 12-inch bead dispenser
1
1
Ref. Part Description Qty.
24Z726 KIT, bead system Ref
1 15F581 . LEG, hopper, RH (painted) 1
2 115087 . PLUG, tubing 2
3 15F582 . LEG, hopper, LH (painted) 1
5 194666 . LABEL, identification 2
6 194668 . LABEL, warning 2
7 241437 . HOPPER, beads 1
8 . DISPENSER ASSY KIT
(includes 8, 11, 12)
277067 . 6-in. Dispenser Assy 1
(Parts List, page 7)
245516 . 12-in. dispenser Assy 1
(Parts List, page 8)
9 121488 . SCREW, cap, flng hd 4
10 101566 . NUT, lock 6
11 101818 . CLAMP, hose 3
12 194682 . HOSE, beads 1
13 403237 . CAP 1
14 287680 RING, hopper, frame 1
15 100731 WASHER 2
17 114988 SCREW, cap, hex hd 1
18 100527 WASHER, plain 1
19 102040 NUT, lock, hex 1
20 17N513 FRAME, mount, bead kit, painted 1
21 125626 SCREW, hex hd, flanged 2
22 2
23 WIND DEFLECTOR 1
277066 6” deflector
245520 12” deflector 1
24 198572 WASHER 1
 Replacement Warning labels are available at no cost.
Ref. Part Description Qty.
