Graco APEX 260106 User Manual

Parts
8 311306E

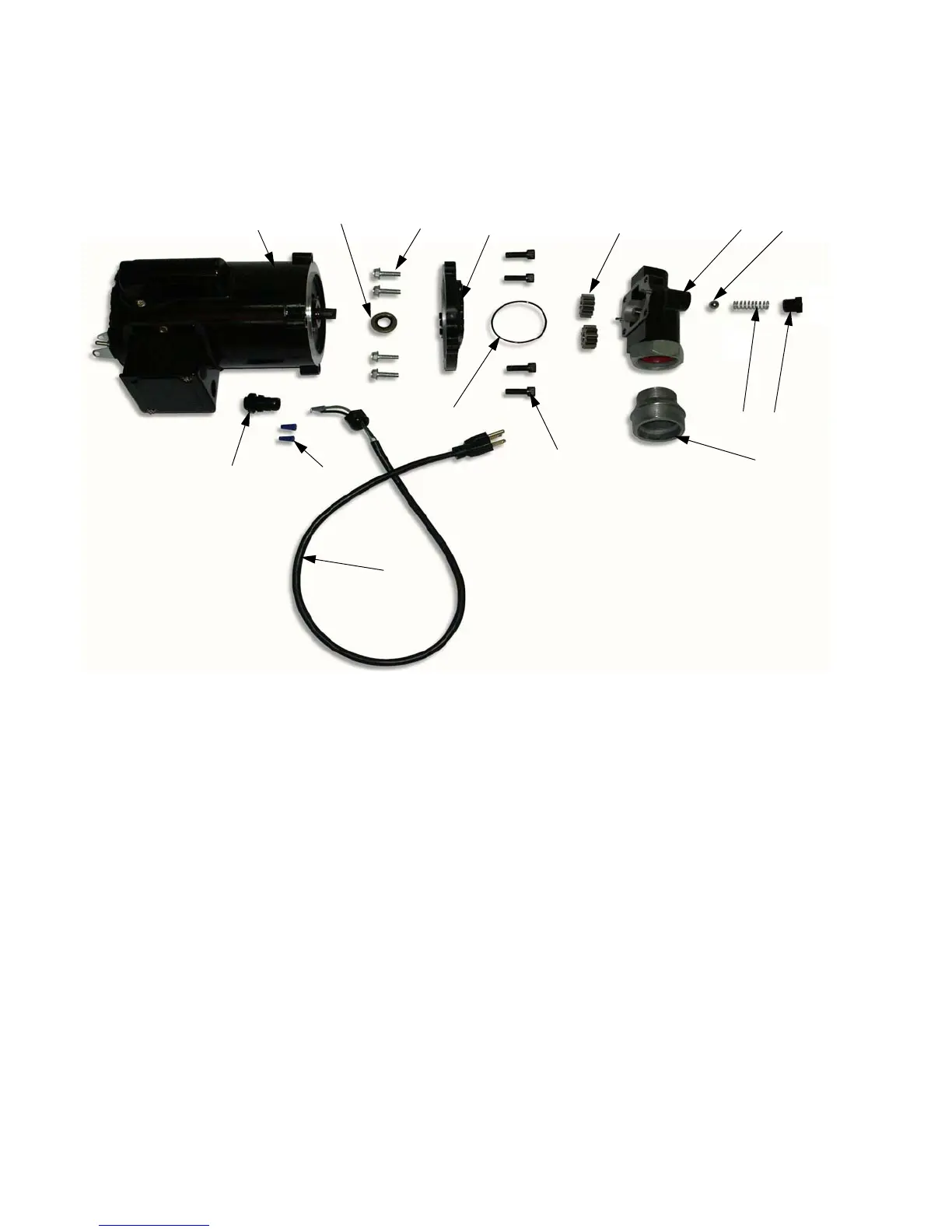

Parts
Models 260105, 260106, 260108, 260109
 Replacement Danger and Warning labels,
tags, and cards are available at no cost.
Accessories
14
7
11
10
8
3
2
4
15
5
13
12
6
9
1
Ref. No. Description Qty.
1a PUMP BODY, with swivel 1
1b PUMP BODY, without swivel 1
1c PUMP BODY,
high flow with swivel 1
2 ADAPTER, pump motor 1
3a GEAR, pump 2
3b GEAR, pump, high flow 2
4 SEAL, shaft 1
5a MOTOR, 115 VAC, 3/4 HP 1
5b MOTOR, 115 VAC, 1 HP 1
5c MOTOR, 12 VDC,
3/4 HP, reversible 1
6 POWER CORD 1
7 O-RING, -144 nitrile (Buna N) 1
8 BALL, relief valve 1
9 SPRING, relief valve 1
10 PLUG, 1/2 npt 1
11 ADAPTER, bung
(260106, 260108, 260109 only)
1
12 STRAIN RELIEF 1
13 NUT, wire 2
14a SCREW, cap, 5/16-18 x 1 in. 4
14b SCREW, cap, 5/16-18 x 1.5 in.
(260105 only)
4
15 SCREW, 3/8-16 x 1 in. 4
16 BRACKET, mounting (model
260105 only) (not shown)
1
17 LABEL, warning (not shown)
Part no. 15G901
1
Part
Number Description
260124 Suction pipe, 55 in. PVC with check
valve
260217 Inlet check valve
260238 Y strainer
260300 Suction pipe, 34 in. PVC
260306 Inlet suction screen
