Graco DH230 Repair Manual

Repair
334654B 11

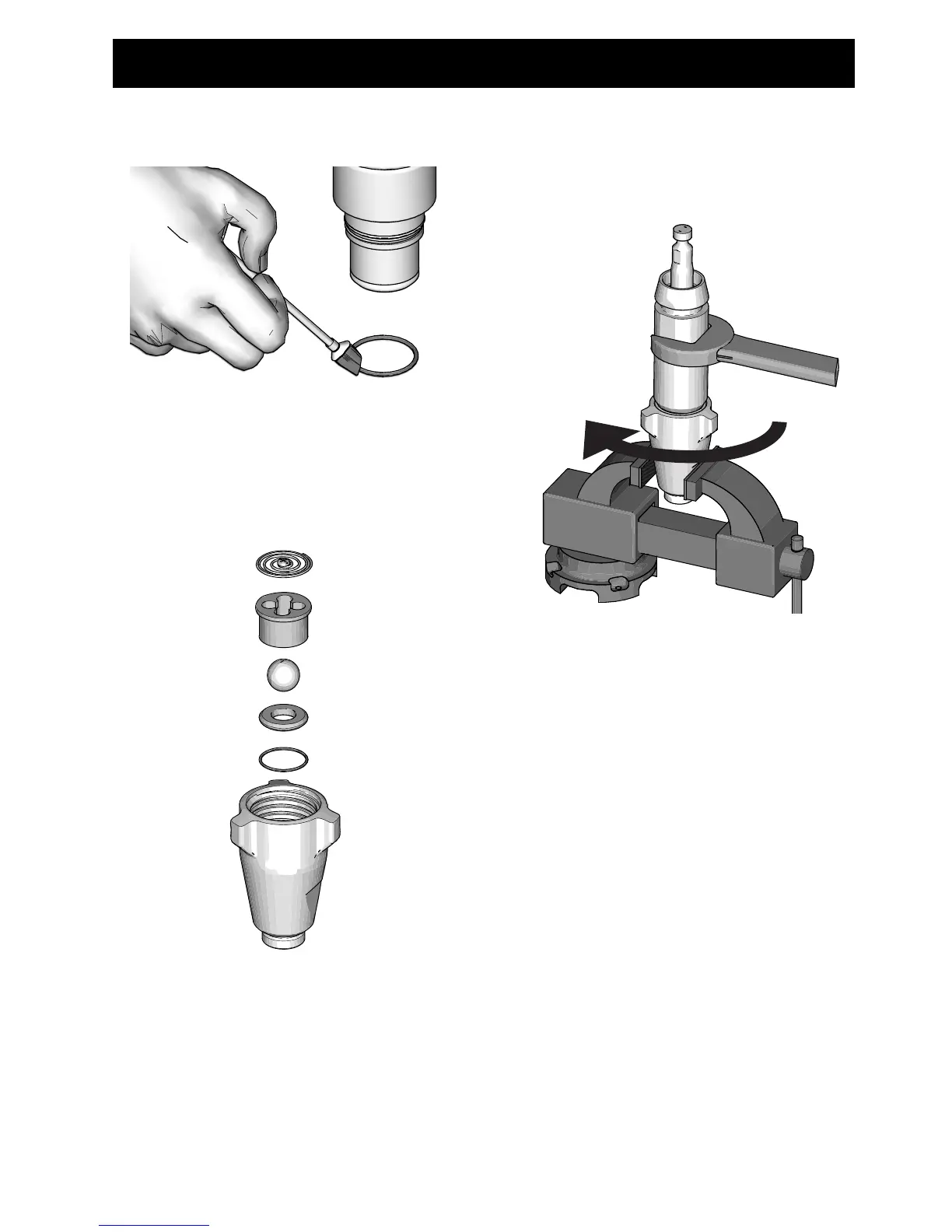

9. Grease o-ring and place on outside
diameter ring groove.
10. Clean seat thoroughly. Reassemble
intake valve with a seat, ball, and new
o-ring. Seat may be flipped over and
used on other side.
11. For GH130 torque foot valve to 110 ± 5
ft-lb (149 ± 7 N•m). For GH200/230/300
torque foot valve to 200 ± 15 ft-lb (271 ±
20 N•m).
ti25181a
ti25182a
ti25183a
