Repair
334654B
9

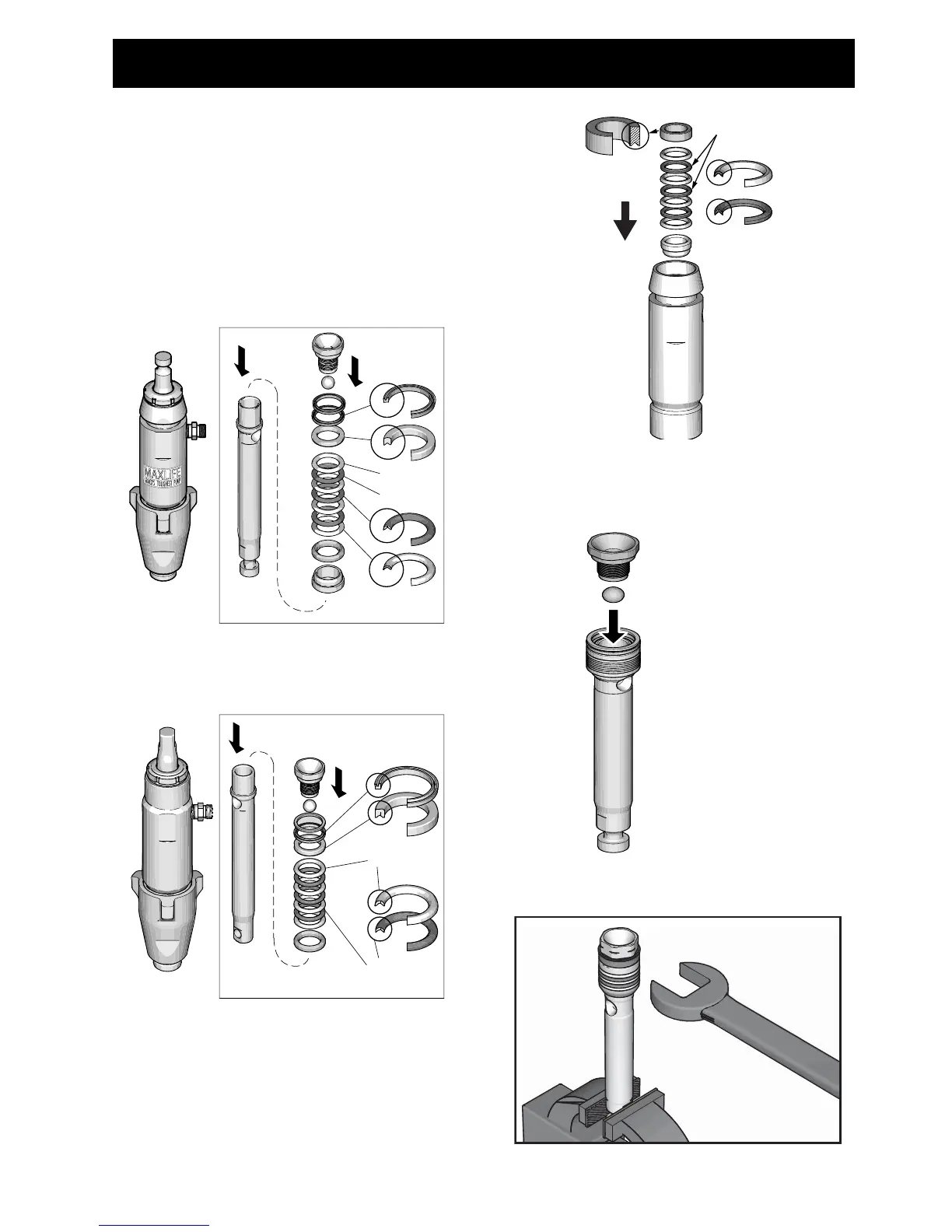

Assemble Pump
1.
If applicable, soak leather packings in
SAE 30W oil for one hour before
assembly.
2.
Install ball in piston rod. Apply thread
sealant to piston
valve thre
ads; ensure
that none gets
on the ball.
3.
Torque to 55 ± 3 ft-lb (75 ± 4 N•m).
Leather
P
ackings
Blue
Brown
Blue
ti25174a
Leather
P
ackings
ti25175a
ti25176a
ti24892a
8
10
Table of Contents
Default Chapter
1
Important Safety Instructions
1
Table of Contents
2
Warnings
3
Repair
4
Trigger Lock
4
Pressure Relief Procedure
4
Disassemble Pump
6
Assemble Pump
9
