Drive Housing
12 312195B
Drive Housing
Removal
1. Relieve pressure, page 6.
2. F
IG. 3. Remove bearing housing. Do Bearing
Housing and Connecting Rod procedure on page
11.
3. Remove two screws (158) and reed switch (182).
4. Remove six screws (189) from pinion housing (25).
5. Lightly tap around drive housing (24) to loosen drive
housing. Pull drive housing straight off pinion hous-
ing. Be prepared to support gear cluster (23), which
may also come out.
Installation
1. Liberally apply bearing grease (supplied with
replacement gear cluster) to gear cluster (23) and to
areas called out by note 2.
2. Place bronze colored washer (24g) on shaft protrud-
ing from large shaft of drive housing (24). Place sil-
ver colored washer (24h) on pinion housing. Clean
mating surfaces of pinion and drive housings. Align
gears and push new drive housing straight onto pin-
ion housing and locating pins (A).
3. Install six screws (189). Torque evenly to note 1
value in F
IG. 3.
4. Install reed switch (182) with two screws (158).
5. Install bearing housing. Do steps 1 through 6 of
Bearing Housing and Connecting Rod procedure
on page 11.

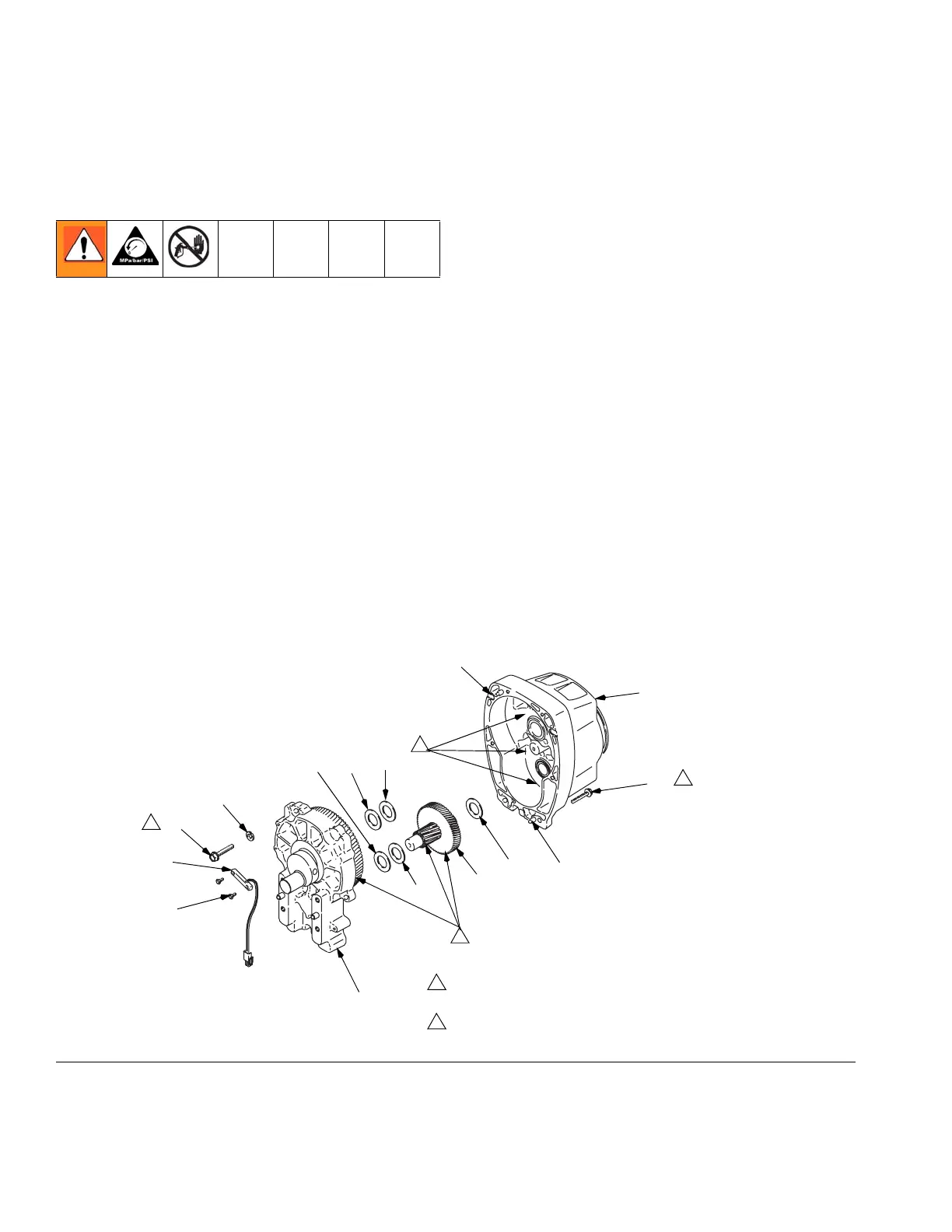

FIG. 3
1
LineLazer IV 3900: Torque to 200 in-lb (22.6 N•m).
LineLazer IV 5900: Torque to 25 ft-lb (34 N•m).
Apply remaining grease to these areas.
1
2
189
188
182
158
24
178
24g 24h
179
178
23
189
25
A
A
2
TI6396a
2
1
