Performance Charts

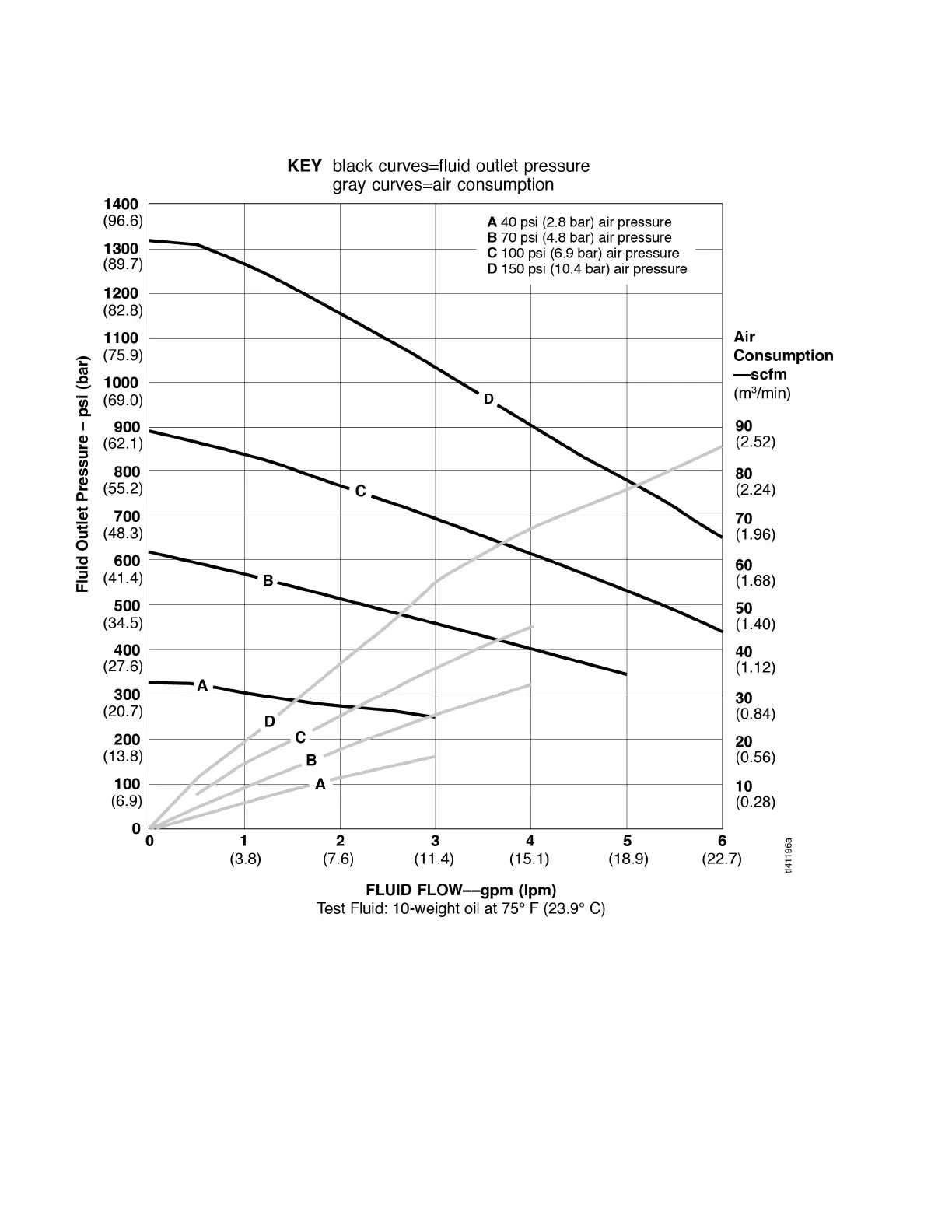

To find Pump Air Consumption at a specific fluid flow
and air pressure:
1. Locate desired flow along the bottom of the chart.
2. Read vertical line up to the point of intersection with
selected air consumption curve.
3. Follow right to the scale to read air consumption.
To find Fluid Outlet Pressure at a specific fluid flow and
operating air pressure:
1. Locate desired fluid flow along the bottom of the
chart.
2. Follow vertical line up to the point of intersection
with selected fluid outlet pressure curve.
3. Follow left to the scale to read fluid outlet pressure.
