Graco GH 300 - GH200;230;300 ProConnect Pump Installation

Displacement Pump ProConnect
311797F 19

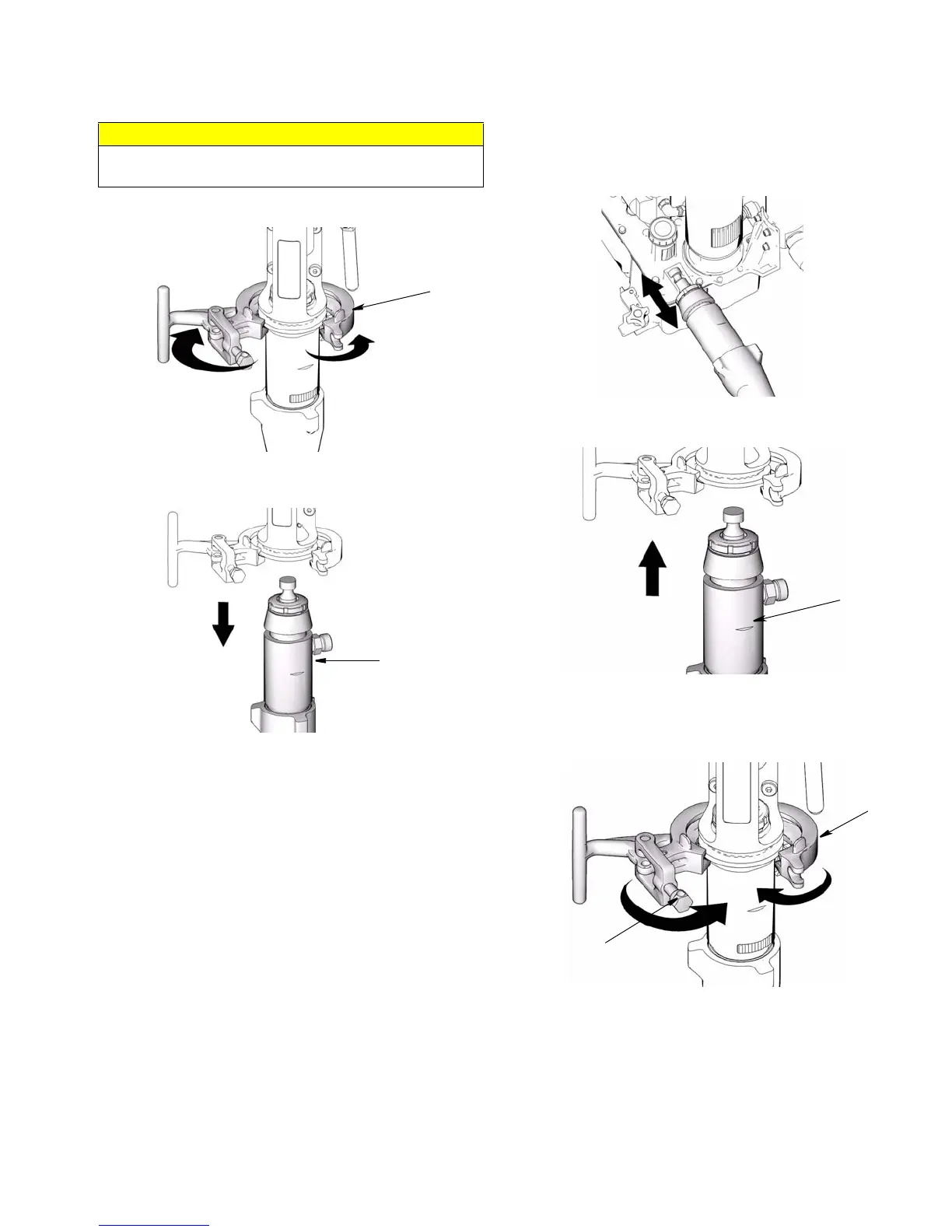

8. (Fig. 18) Open clamp (247).
FIG. 18
9. (Fig. 19) Remove pump (111) from unit.
FIG. 19
Installation
1. (Fig. 20) If needed, place pump rod in adjustment casting
and pull pump to lengthen rod.
FIG. 20
2. (Fig. 21) Install pump (111) in sprayer.
FIG. 21
3. (Fig. 22) Close clamp (247) around pump (111) and push it
closed.
FIG. 22
NOTE: Closing force on T-handle can be adjusted if needed by
inserting pin into adjustment hole and turning.
CAUTION
Support pump with your hand before opening t-handle.
ti8833a
ti8832a
111
ti8834a
111
ti8959a
24
7
ti8958a
Adjustment hole
