Graco GH 300 - Component Identification

Component Identification
311797F 5
Component Identification
3.
4.
5.
7.
6.
8.
OFF
ON
2.
bar/MPa
PSI
on
off
1.
10.
11.12.
ti8714a
ti9126a
ti8844a
ti8691a
9.
ti9167a
ti9166a
ti5381b
13.

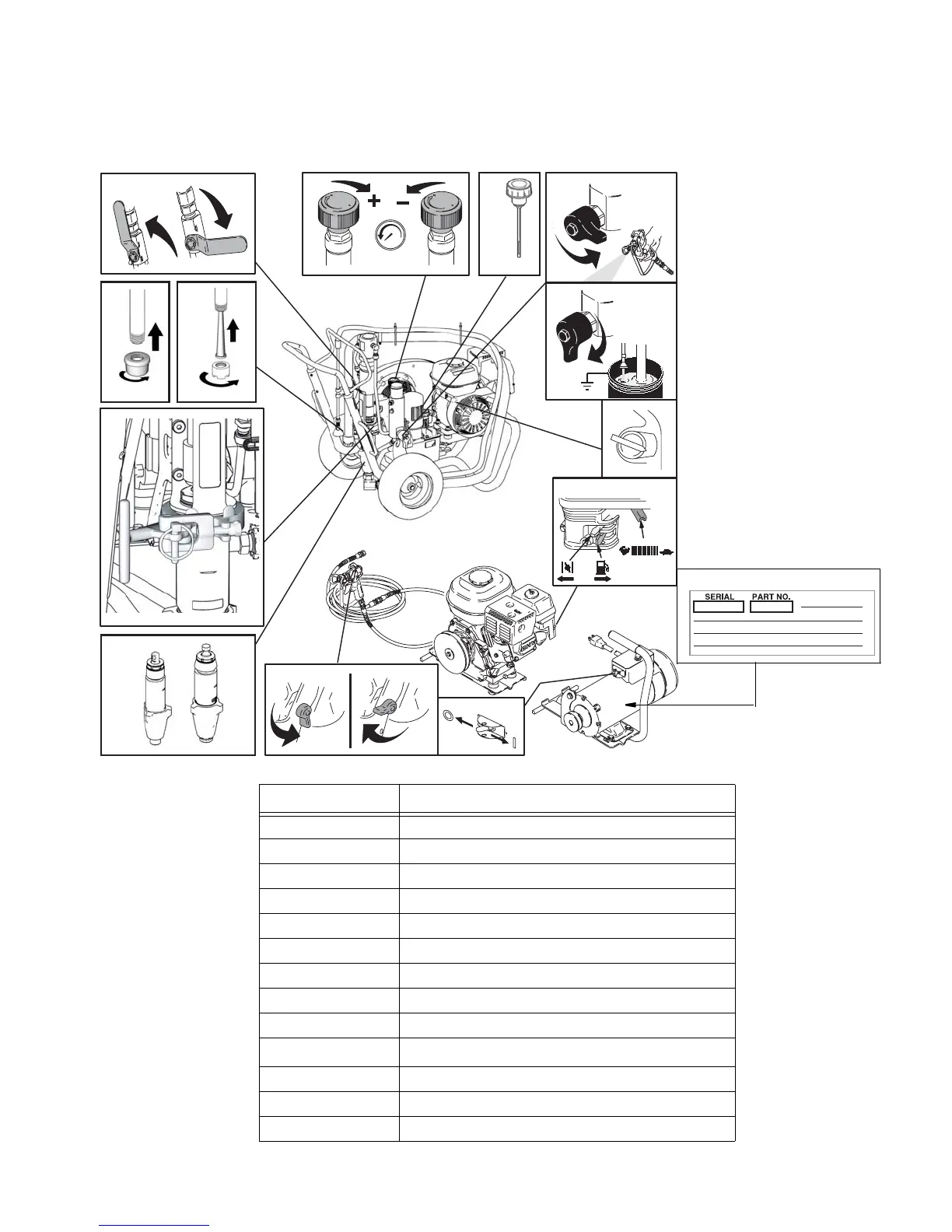

Item No. Component
1 Hydraulic pump valve
2 Pressure control
3 Hydraulic Oil Cap
4Drain valve
5 Engine ON/OFF switch
6 Engine controls
7 Electric motor On/Off Switch
8 Gun trigger Lock
9 Displacement pump
10
ProConnect
™
11 Inlet strainer (standard)
12 Inlet strainer (option)
13 Serial number tag
