Graco GH 300 - Page 32

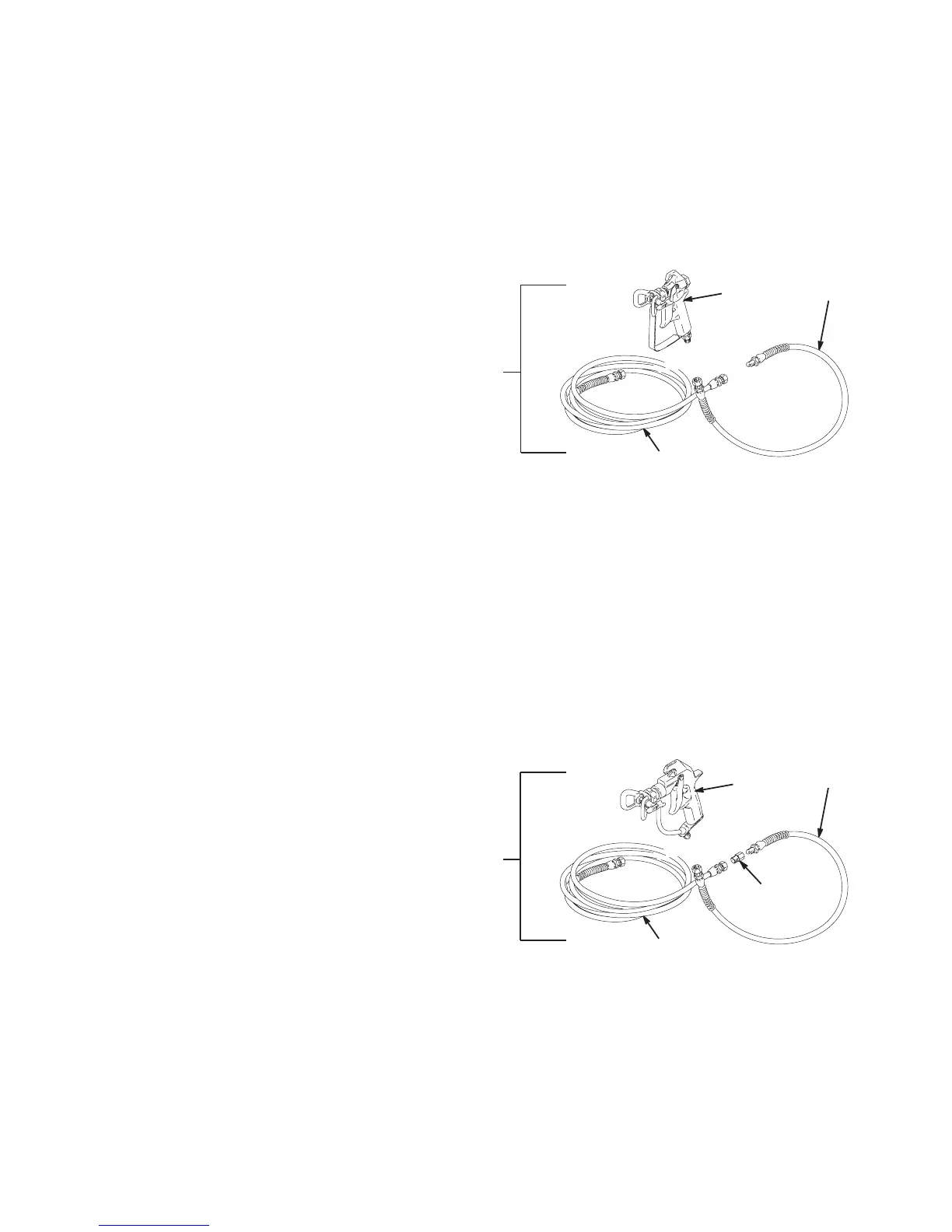

GH 130 & 200 Sprayers with Spray Gun and Hoses
32 311797F
GH 130 & 200 Sprayers with Spray Gun and Hoses
GH 230 & 300 Sprayers with Spray Gun and Hoses
Ref
No. Part No. Description Qty.
202 287036 KIT, gun, Contractor
3300 psi (227 bar, 22.7 MPa)
Includes 202a - 202d
1
202a 243341 HOSE, grounded, nylon; 1/4 in. ID;
cpld 1/4-18 npsm; 50 foot (15 m);
spring guards both ends
3300 psi (227 bar, 22.7 MPa)
1
202b 277322
HOSE, grounded, nylon; 3/16 in. ID;
cpld 1/4 npt(m) x 1/4 npsm(f);
3 foot (0.9 m); spring guards both ends
3300 psi (227 bar, 22.7 MPa)
1
202c 246220 Contractor Spray Gun
Includes 517 RAC
®
X SwitchTip
and HandTite
™
Guard
See 309639 for parts
1

A
C
B
TIA
Ref
No. Part No. Description Qty.
202 287042 KIT, gun, Silver
3300 psi (227 bar, 22.7 MPa)
Includes 202a - 202d
1
202a 240797 HOSE, grounded, nylon; 3/8 in. ID;
cpld 3/8-18 npsm; 50 foot (15 m);
spring guards both ends
3300 psi (227 bar, 22.7 MPa)
1
202b 277322
HOSE, grounded, nylon; 3/16 in. ID;
cpld 1/4 npt(m) x 1/4 npsm(f);
3 foot (0.9 m); spring guards both ends
3300 psi (227 bar, 22.7 MPa)
1
202c 246240 Silver Spray Gun
Includes 517 RAC
®
X SwitchTip
and HandTite
™
Guard
See 309740 for parts
1
202d 159841 ADAPTER, 3/8 X 1/4 in. npt 1
